Techwin Single Optical Fibre Splicers Fusion Fiber Optic Splicer Price

Product Specifications

Prod Model:	TCW-605C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Zhejiang, China (Mainland)
Product Name:	Fusion Splicer Tcw-605c
Brand Name:	Techwin
Package:	Customer's Requirement or Neutral P
Warranty:	One Year or More
Dimensions (L*W* H):	160mm*150mm*145mm
Return Loss:	60dB or Greater
Color:	Green or Black
Align Mode:	Advanced Profile Alignment System(PAS)
Application:	Telecom Network
Wiring Devices:	ODF
Certification:	ISO
Condition:	New
Type:	Fiber Optic Equipment

Product Description

Techwin Single Optical Fibre Splicers Fusion Fiber Optic Splicer Price

product description

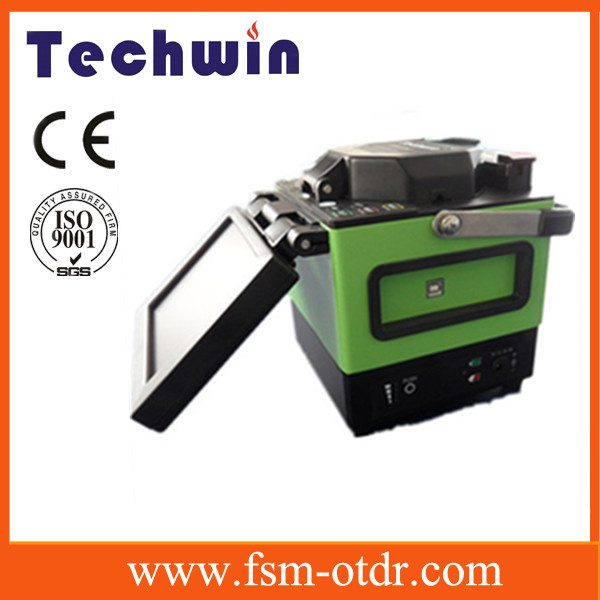

Fibre splicing machine TCW-605c  fusion splicer adopts high-speed image processing technology and special precision- positioning technology,automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD monitor displays all steps of fiber fusion clear at a glance.

Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.

Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.
Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, Turkish

Splicing machine Tcw-605c with THREE advantages:

--Suitable for 0.25mm bare fiber, 0.9mm buffered fiber, Splice on Connector, Flat FTTH ---Fiber Cable(Drop Cable), clamp Change free(The First, Unique in the world)

--Button and Menu is same as FSM-60S, in accord with the habit of usage

--One Step Fiber Cleaver with Automatic Blade Rotation (The First, Unique in China)
Main Features

--PAS image digital processing system,core or clad alignment is optional;

--The arc is calibrated by the environmental parameters as temperature and pressure;

--Variety display group,the Maximum image magnification is 300;

--Typical splicing time is 8 seconds,30 seconds heating;

--Intelligence operate,auto heat or work when open the shield;

--High definition 5.7' colorful LCD;

--Hight to 4000 groups fusion records can be stored;

--High capacity,plug battery,long work time;

--Multilingual machine

Delivery:
7 days after receiving the payment.

Operate environment:

Parameter calibration experiments:

 High voltage arcing circuit environment parameter calibration experiments have been carried out in Shanghai, Xi'an, Lanzhou, Xining, Lhasa, 0 to 5000 m altitude.

The machines can be intelligent perception of the change of the outside temperature, pressure and other environmental parameters, automatically adjusts discharge parameters to produce a stable arc.

 Specification


Standard Package:


ARC Fusion Splicer, Carrying Case, High Precision Fiber Cleaver, Tri-hole Fiber Coat Stripper, AC Adapter/Battery Charger, Battery Charger Cord, Battery Pack, Spare Electrodes(one pair), Blower Brush, V-groove Cleaning, Quick Reference Guide, Video Instruction Manual, Cooling Tray, Alcohol Dispenser, Monitor Coating, Monitor Cover, USB Cable.


Our main products as below:


1	Fusion Splicers	Techwin TCW 605C, TCW605S
2	OTDR	Techwin TW3100/Yokogawa aq7275
3	Fiber Cleaver	Techwin FC306/FC 305
4	Test instruments	optical power meters/optical laser sources/visual fault locators / PON                      power meters /cable fault locators
5	microwave measurements	Spectrum Analyzer, signal Generator,Vector network Analyzer ,Function signal Generator,RF signal Generator,Synthesized signal Generator,Anritsu site master( Cable And Antenna Analyzer)
