Product Specifications
| Prod Model: |
ET6300S3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test Space Dimension (mm): |
400W×400d×310h |
| External Dimension (mm): |
900W×2300d×2160h |
| Temp. Range: |
-40/+150 /-55/+150 /-65/+150 |
| Delivery Detail: |
25 Working Days After Getting The Payment |
| Test Space Volume (L): |
50 |
| Test Zones: |
2 |
| Hot Chamber Temp. Range: |
+50/+200 |
| Temp. Constancy: |
±0.3-±1.0 |
| Cold Chamber Temp. Range: |
-80/+70 |
| Temp. Homogeneity: |
±0.5-±2.0 |
| Weight: |
100-500Kg |
| Power Source: |
AC380V |
| Type: |
Temperature Shock Testing Chamber |
| Maxcapacity: |
-80~180 |
| Oil Cylinder Position: |
None |
Product Description

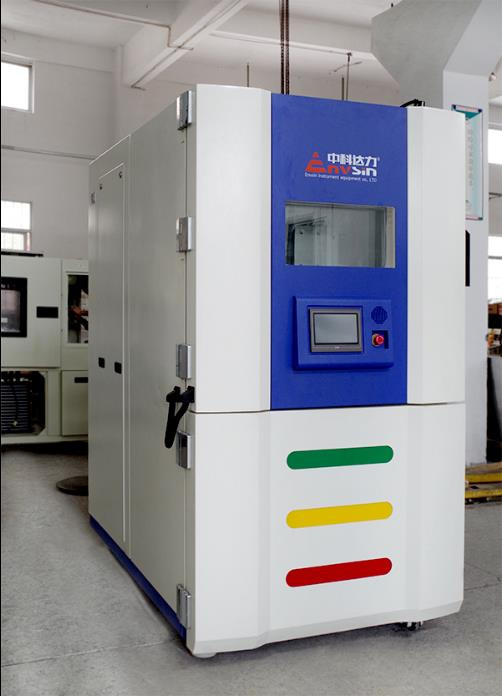

Thermal Shock Test Instrument for PCB boards and IPHONE testing
1.Shock Test chamber Introduction
Shock Test chamber of three Zone is applied for testing the material structure or composite material in an instant by the extremely high temperature and very low temperature continuous environment. This product can test product (such as metals, plastics, rubber, electronic and so on) quality reliability.
2.Shock Test chamber Specification
| Model | ET6100S3 | ET6200S3 | ET6300S3 |
| Test Area Volume(L) | 100 | 200 | 200 |
| Test Zone | 3 | 3 | 3 |
| H.T. Chamber Temp. Range(ºC) | +50/+200 | +50/+200 | +50/+200 |
| Test Chamber Temp. Range (ºC) | R.T | R.T | R.T |
| L.T. Chamber Temp. Range(ºC) | -80/+70 | -80/+70 | -80/+70 |
| Temperature Fluctuation(ºC) | ±0.3-±1.0 | ±0.3-±1.0 | ±0.3-±1.0 |
| Temperature Uniformity(ºC) | ±0.5-±2.0 | ±0.5-±2.0 | ±1.0-±2.0 |
| Recovery Time (min) | Less than 5min(Air Outlet) | Less than 5min(Air Outlet) | Less than 5min(Air Outlet) |
| Test Area Dimension(W×D×Hmm) | 500x575x350 | 650x585x450 | 700x710x600 |
Exterior Dimension(W×D×Hmm)
| 1100x2300x2070 | 1150x2300x2170 | 1200x2550x2320 |
3-Cased Type(ºC)
| -55/+150
-55/+150
-65/+150
| -55/+150
-55/+150
-65/+150 | -55/+150
-55/+150
-55/+150 |
Max. Load(KG) | 20 | 50 | 50 |
| Cooling Methods | Air-Cooled | Water-Cooled (Compliant with IEC 60068-3-5) |
Power | AC380V±10%,50HZ,3/N/PE |
| Compliant with International Standards: | 2-Cased Type
GB/T2423.22
MIL STD 202F,method 107G
IEC 60 068-2-14,Test Na
BS 2011
DIN 40046,Test Na
JESD22-A101-A |
3.Shock Test chamber Features
(1). Modular fabrication technique.
(2). Long defrosting cycles: 700H above.
(3). Visible observation window for real-time monitoring.
(4). Intelligent 32 bit measuring and control system with colorful screen.
(5). Interface USB and Ethernet.
(6). Programmable power outlet with 4-CH. ON/OFF output control, to ensure safety.
Independent thermal protector and sensors keep test specimen off over
temperature, breezeless and smog.
(7). Network video monitoring is synchronized with test data.
(8). APP mobility management.
(9). Environmental servo refrigerant flow control for energy saving
and quick heat-up/cool-down rate.
