Product Specifications
| Prod Model: |
TM-619 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Digital Frontier Timer Switch |
| Model Number: |
TM-619 |
| Max. Current: |
16A |
| Max. Voltage: |
250VAC |
| Power Supply: |
12VDC/AC, 24VDC/AC, AC110V |
| Dimension: |
60*60*21mm |
| Usage: |
Universal Counter |
| Function: |
Subtract Counter |
| Theory: |
Digital |
| Carry Mode: |
Synchronous Counter |
| Carry Base: |
Decimal Counter |
| Mechanism: |
Electronic |
Product Description
Specifications
Programmable Digital Timer Switch
16 programs on/off per day or week
Battery backup
Manual On/Off/Auto
Nice appearance

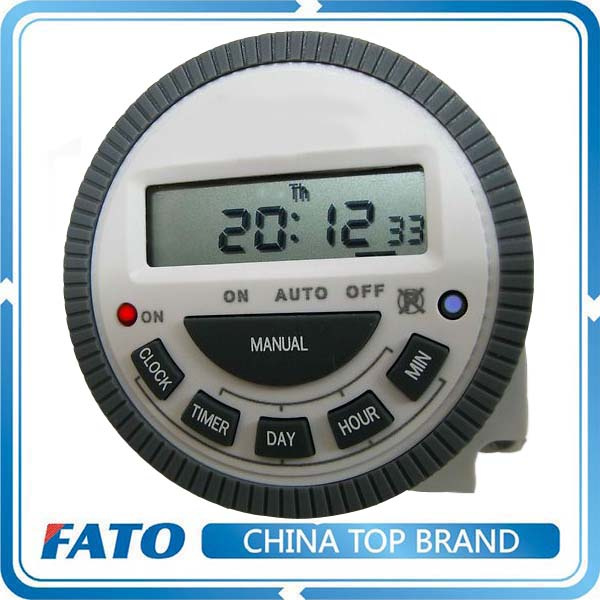

TM-619 Timer switch
Usage
The timer switch can open or close kinds of electrical apparatus and power automatically, according to preset time, the items can be streetlight, nion light (sign), billboard, electrical appliances, broadcast equipments etc., the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.
FEATURES AND BENEFITS:
Digital 24Hr, 7 Day timer
Digital Electronic timer switch with daily and weekly programs
8 or 16 events per day, 7 day programming blocks
One channel
LED power indicator
LCD display
Manual On/Off/Auto
24 or 12 hour format
Battery backup
Power Supply: line voltage 12V DC/AC, 24V DC/AC, 110V AC or 240V AC 50/60 Hz
Contact Rating: 16A resistive
8A Inductive/250V, 0.5HP/250V
Own Power Consumption: 3VA
Timing Resolution: 1 minute
Technical Data:
Supply Voltage | 120VAC,220VAC,24VDC/AC,12VDC/AC, other voltage on request |
| Frequency | 45 ~ 60Hz |
| Own Consumption | Approx 3VA |
| Own Consumption | Changeover contact or control power output |
| Running Accuracy | ± 1 second / day at 20°C |
| Load | 1 minute for TM - 619 series |
| Memory Back up | Resistive 16A, Inductive 8A, Motor 1/2HP |
| Admissible Ambient Temp | -10°C ~ + 55°C(T55) |
PLEASE SPECIFY DESIRED VOLTAGE YOU NEED FOR YOUR APPLICATION.... 12VDC/AC, 24VDC/AC, 120VAC, 240VAC
