Product Specifications
Prod Model: |
CN101A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model Number: |
Cn101A |
Power Supply: |
12V DC/AC, 24V DC/AC, 110V |
Max. Voltage: |
240V |
Max. Current: |
16A |
Size: |
60*60*21mm |
Usage: |
Summation Meter |
Function: |
Subtract Counter |
Theory: |
Electronic |
Carry Mode: |
Synchronous Counter |
Carry Base: |
Decimal Counter |
Mechanism: |
Electronic |
Product Description
Usage
The timer switch can open or close kinds of electrical apparatus and power automatically, according to preset time, the items can be streetlight, nion light (sign), billboard, electrical appliances, broadcast equipments etc., the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.

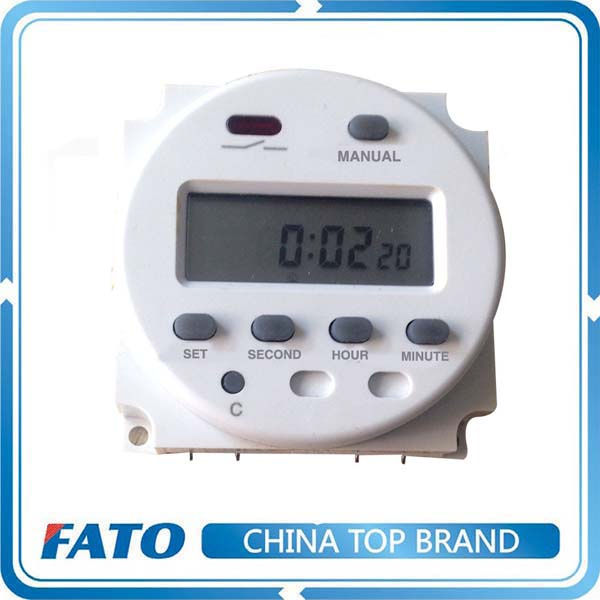

Programmable Microcomputer Timer Switch CN101A
The timer switch can open or close kinds of electrical apparatus and power automatically, according to preset time, the items can be streetlight, nion light (sign), billboard, electrical appliances, broadcast equipments etc., the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.
Preprogram setting
8 or 16 ON/OFF (Day or week)
Technical Data
Temp.range: -20°C+50°C | Ui:220~240V, 50/60Hz |
Power loss: less than1W | Display: LCD |
Capacity: 16(8) 250V AC | Black-out: 60 days |
Timer range: 1min~168hr | Recharge battery: 1.2V 40Ma |
Average error: 1s/24h, 25°C | Weight: 40g |
Programs:16 on/off each day or week | Standard: GB/T14536.1 |
PLEASE SPECIFY DESIRED VOLTAGE YOU NEED FOR YOUR APPLICATION.... 5VDC/AC 12VDC/AC, 24VDC/AC, 120VAC, 240VAC
