Frequency Range: VHF:136-174MHz 245-245.9875MHz (220-260MHz)
UHF: 400-490MHz
Output Power: VHF: 10W/25W/60W
UHF: 45W/25W/10W
1750Hz Tone
CTCSS/DCS setting & scanning
0-9 SQL grade setting
Frequency/Channel scanning
High/Mid/Low power selectable
Voice compander
Repeater offset shift
Keypad lock function
Contact book
Battery voltage display
DTMF/2 tone/5 tone
ANI ID
Remote kill/ stun/ activate/ revive
Emergenvy alarm
Wide/Narrow band setting
TX inhibit
Busy Channel Lock-Out
Channel name editing
Reverse frequency
Talk around
Scrambler(Optional)
Voice prompt
Time-out Timer
Auto Power off
VFO step setting:5/6.25/10/12.5/20/25/50kHz
Frequency Range: VHF:136-174MHz 245-245.9875MHz (220-260MHz)
UHF: 400-490MHz
Output Power: VHF: 10W/25W/60W
UHF: 45W/25W/10W
1750Hz Tone
CTCSS/DCS setting & scanning
0-9 SQL grade setting
Frequency/Channel scanning
High/Mid/Low power selectable
Voice compander
Repeater offset shift
Keypad lock function
Contact book
Battery voltage display
DTMF/2 tone/5 tone
ANI ID
Remote kill/ stun/ activate/ revive
Emergenvy alarm
Wide/Narrow band setting
TX inhibit
Busy Channel Lock-Out
Channel name editing
Reverse frequency
Talk around
Scrambler(Optional)
Voice prompt
Time-out Timer
Auto Power off
VFO step setting:5/6.25/10/12.5/20/25/50kHz
Specification:

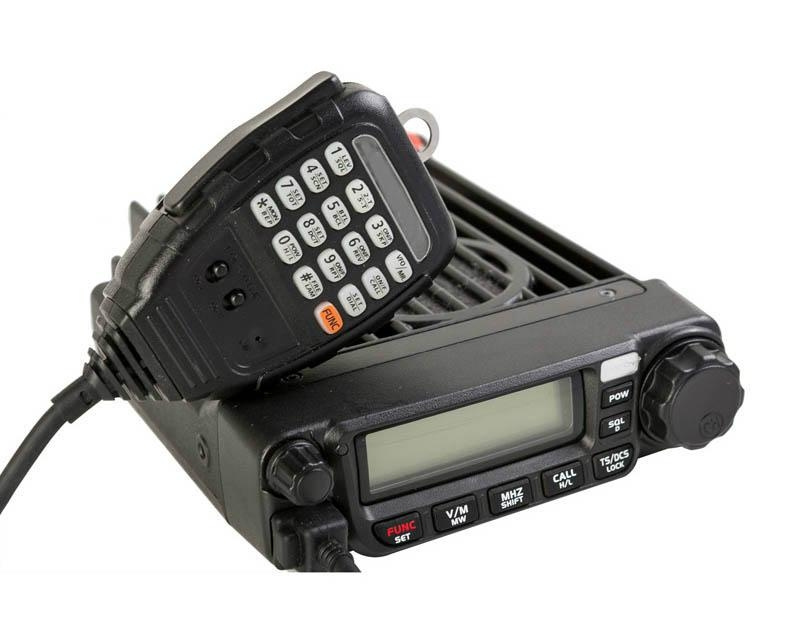

| Model | TM-8600 | | General | | Frequenvy Range | 136-174/245-246/400-490MHz | | Channel Capacity | 200 | | Channel Spacing | 5/6.25/8.33/10/12.5/15/20/25/30/50KHz | | Freruency Stability | 2.5ppm | | Operating Temperature | -20°C ~ + 60°C | | Operating Voltage | 13.8V DC ± 15% | | Dimension(HxWxD) | 145mm x190mm x47mm | | Weight(with bracket) | 1200g | | Receiver | | Reference Sensitivity | 0.25V / 0.35V | | Operating Bandwidth | 60dB 12.5KHz /70dB 25KHz | | Adjacent Channel Selectivity | 60dB 12.5KHz 70dB 25KHz | | Inter-modulation Rejection | ≥60dB/ ≥65dB | | Spurious Response Rejection | ≥70dB | | Rated Audio Response | +1-+3dB | | Rated Audio Distortion | <5% | | FM Hum&Noise | ≥40dB 25KHz /≥45KHz 12.5KHz | | Transmitter | | RF Power | 45W/25W/10W(UHF)/60W/25W/10W(VHF) | | Frequency Modulation | 11kΦF3E / 16kΦF3E | | Modulation Distortion | <5% | | FM Noise | ≥36dB 25KHz /≥40KHz 12.5KHz | | Adjacent Channel Power | ≥60dB 12.5KHz /≥70KHz 25KHz | | Audio Response | +1-+3dB | | Audio Distortion | <5% |
|
|
