Product Specifications
| Prod Model: |
FOX-525S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Memory Capacity: |
2GB |
| CPU: |
Intel Atom |
| GPU: |
Intel |
| HDD Capacity: |
8g SSD |
Product Description

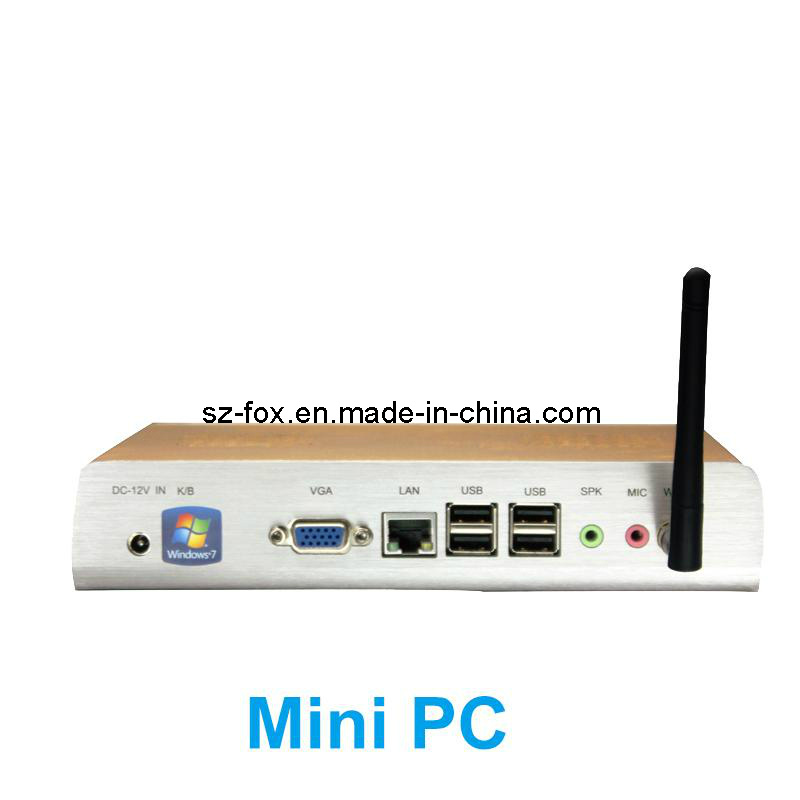

Industrial computer FOX-525S Specification
Supporting System WIN7, Linux, Windows 95, Windows 98, Windows 2000, Windows XP, Windows 2003, Ubuntu
Colour Depth 32 bit
I/O Port 6*USB 2.0
2*SPK
2*MIC
1*WiFi
1*VGA with 15 needles
1*RS-232 Port with 9 needles
1*RJ 45 LAN Port
1*DC 12V Port
Resolution 1920*1080
Dimension 21*14*4cm
CPU INTEL ATOM D525, dual core four threads, 1.8G
Memory Capacity DDR3 2 GB Max supporting 4GB
Hard Drive Capacity SATA (SSD )8GB 16GB, 32GB, or2.5inch 160GB, 320GB 500GB Optional
Graphics Card INTEL GMA 3150
Weight 2000g
FSB 800 MHz
Chipset INTEL NM10 Express chipset, MCH: NM10 FWH
Power Supply 12V/2A
Assembly desktop computer Features & Benefits:
1. Tiny and Delicate Design:
With small and exquisite design, easy to put and remove, save space; Integrated design, without fans, without noise; You can also hang it on the back of the displayer, saving the desktop space maximally.
2. Cost-effective:
Save up to 70% on the total cost of ownership versus buying a traditional desktop PC, embedded low power consumption CPU can cut down the electricity costs.
3. Dual Application:
Can be used as an independent computer, also can be used as a thin client with RDP sharing another host PC.
4. Minimal maintenance:
You only have to maintain and upgrade the host PC since each FOX-525S has no major hardware components, such as a CPU or hard-drive, zero-maintenance decreased the amount of administrators' work substantially.
5. Energy Conservation:
Since the product has no moving parts, it runs completely silently and saves energy by drawing only 5 watts.
6. Centralized data:
Through the server management, the operating permission and free disk space of the FOX cloud terminal users can be set. FOX-525S has the function of storing data in server, which makes it more convenient for operators to centralize data management, such as: Backups and restore.
7. Stable and durable:
FOX uses highly centralized technology design, hard to move or damage parts, low power consumption and heat dissipation long service life.
Assembly desktop computer FOX-525S Application:
1. Independent Personal Computer:
With high-end hardware, can be used as an independent computer; Also can be used as a parlour computer connecting the TV Set to watch video, surf the internet.
2. Business office computer:
Cloud terminal used in business is extremely different from PC in surfing the net or display. Such as: Chatting online. L-20 is tiny and portable, power saving (the rated power is lower than 20W), highly block atmosphere, overall functions and high speed.
3. Education Computer:
Used in Multimedia Teaching system, can install teaching ware for students and teachers.
4. Industrial Computer:
Industrial standard design, High stability and reliability; With RS232 serial port for more industrial needs; Solid state design, fanless design.
5. Other Application:
Used as in Remote media player, advertising Player, POS system; Also can be developed as other products.
6. Customize:
Brand, appearance, function, ware and others, can meet special design.
|
Supporting System |
WIN7, Linux, Windows 95, Windows 98, Windows 2000, Windows XP, Windows 2003, Ubuntu |
|
Colour Depth |
32 bit |
|
I/O Port |
6*USB 2.0
2*SPK
2*MIC
1*wifi
1*VGA with 15 needles
1*RS-232 Port with 9 needles
1*RJ 45 LAN Port
1*DC 12V Port |
|
Resolution |
1920*1080 |
|
Dimension |
21*14*4cm |
|
CPU |
INTEL ATOM D525, dual core four threads, 1.8G |
|
Memory Capacity |
DDR3 2 GB Max supporting 4GB |
|
Hard Drive Capacity |
SATA (SSD )8GB 16GB, 32GB, or2.5inch 160GB, 320GB 500GB Optional |
|
Graphics Card |
INTEL GMA 3150 |
|
Weight |
2000g |
|
FSB |
800 MHZ |
|
Chipset |
INTEL NM10 Express chipset, MCH: NM10 FWH |
|
Power Supply |
12V/2A |
