Product Specifications
| Prod Model: |
MC-F1510G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Flat-Bed Cylinder Press |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
Product Description
Introduction:
All steel under frame structure
Applied all steel under frame structure, greatly enhance stability of the machine while working. Processed with welding tempering treatment and aging treatment on square tube, make sure under frame and platform are not be deformed with time, highly extended printer lifespan and its accuracy.
Double lead screw driving on Y axis as high as 0.2mm. While MC-F1500G using double lead screw driving on Y axis, the precision tolerance reaches as low as 0.05mm, the printing accuracy are greatly higher than other printers in the market.
Mute guide rail lead screw
The noise are controlled under 40 DB while printer working.
User-friendly touch screen design
User-friendly designed, easier to operate.
Industrial grade print heads for bulk production.
Auto print head height adjustment
Equipped print head height adjustment for media, it enables print head auto-adjust with media thickness under 100mm, deliver a smooth printing even with various media.
Features:
Bidirectional and double UV printing
Bidirectional and boule printing available, greatly enhanced performance of printer.
High speed 1200mm/s
30% faster than most printers. Other printers in the market whose speed are only up to 900mm/s, Our printer reaches up to 1200mm/s.
Germany-imported IGUS drag chain
Utilize Germany-imported drag chain on X axis, ideal for protection of cable and tubes under high speed motion.
Anti-collision system for print head
Equipped with our anti-collision system for print head, easier to adjust for different substrate, avoid any chance to damage print head under any misoperation.
Planetary-stage gear reducer, enhance positioning accuracy on Y axis.
Technical Specifications:

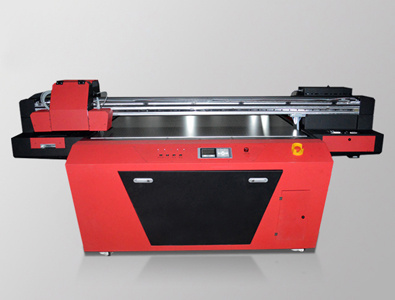

Model: MC-F1015G UV Flatbed Printer
Print head: Drop on-demand Piezo head
Print head quantity: 4/5/6/7/8
Print head type: RICOH GEN4
Printing resolutions: 300*300, 300*600, 600*600, 300*900 dpi, 300*1200dpi, 600*900dpi, 600*1200dpi
Printing mode: Unidirectional and Bidirectional
Printing speed (5 print heads): Draft/22 sure meters per hour; Production/ 18M2/hr.; Quality/10M2/hr.; High Quality/8M2/hr.
Media handling: Vacuum platform
RIP solution: Ultraprint, Photoprint
File format: Tiff, Jpeg, Postscript3, EPS, PDF and more
Color control: ICC based color, curves and density adjustment function
Interface: USB2.0/1.1
Ink type: UV curable ink
Ink color: Cyan, Magenta, Yellow, Black, White
Flatbed size: 1500mm*1000mm
Printable media: Rigid and Flexible such as glass, aluminum, plastic board, wood board, polystyrene board, leather, polyurethane, foam board, plastic sheet, metal sheet, textile, wallpaper, bricks, ceramic tiles and so on.
Media thickness: Up to 100mm
Power specification: 50Hz/60Hz, 220V(±10%) >35A, P2000W
Operational environment: Temperature: 20°C-28°C (68-82.4°F), Humidity: 40-60% RH
Dimensions [LxWxH]: 2550mm x 2160mm x1270mm
Net weight: 750 KG
