Product Specifications
| Prod Model: |
MC-F2513G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Flat-Bed Cylinder Press |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
Product Description
Introduction:
All steel under frame structure
Applied all steel under frame structure, greatly enhance stability of the machine while working. Processed with welding tempering treatment and aging treatment on square tube, make sure under frame and platform are not be deformed with time, highly extended printer lifespan and its accuracy.
Equipped print head height adjustment for media, it enables print head auto-adjust with media thickness under 100mm, deliver a smooth printing even with various media.
Anti-collision system for print head
Utilize with our anti-collision system for print head, easier to adjust for different substrate, avoid any chance to damage print head under any misoperation.
Use double lead screw driving system, guarantee printing resolution and quality, longer printer lifespan.
Features:
Mute guide rail lead screw
The noise are controlled under 40 DB while printer working.
User-friendly touch screen design
User-friendly designed, easier to operate.
Germany-imported IGUS drag chain
Utilize Germany-imported drag chain on X axis, ideal for protection of cable and tubes under high speed motion.
Smart pressure ink supply system.
Double lead screw and linear sliding rail are applied on both sides of the Y axis, reduced dimension reach up to 30cm
Technical Specifications:

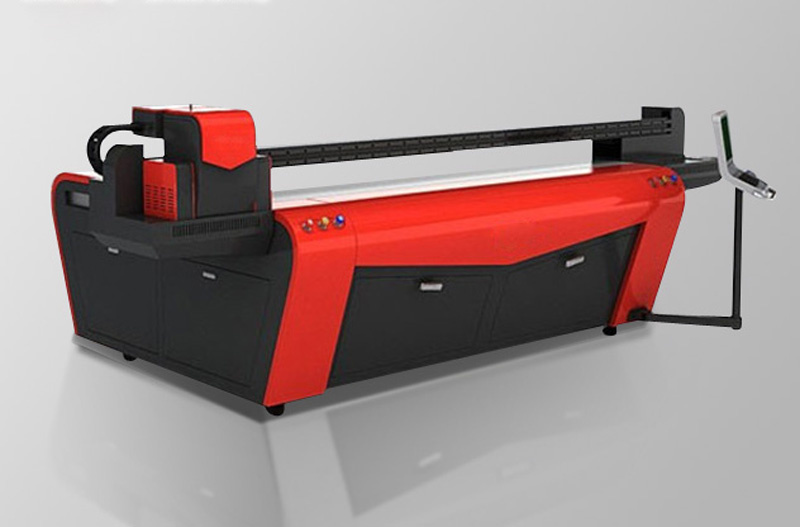

Model: MC-F2513G UV Flatbed Printer
UV device: LED UV
Print head: Drop on-demand Piezo head
Print head quantity: 4/5/6/7/8/10/12/14/16 optional
Print head type: RICOH GEN4
Printing resolutions: 300*300 dpi; 300*600 dpi, 600*600dpi; 300*900dpi; 300*1200dpi; 600*000dpi, 600*1200dpi.
Printing mode: Unidirectional and Bidirectional
Printing speed (8 print heads): Draft/22 sure meters per hour; Production/ 16 M2/hr.; Quality/11M2/hr.; High Quality/7 M2.
Media handling: Vacuum platform
RIP solution: Ultraprint, Photoprint
File format: Tiff, Jpeg, Postscript3, EPS, PDF and more
Color control: ICC based color, curves and density adjustment function
Interface: USB2.0/1.1 & 100 Bace-T Ethernet
Ink type: UV curable ink
Printer color: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Varnish
Printing size: 2500mm*1300mm
Printable media: Rigid and Flexible such as glass, aluminum, plastic board, wood board, polystyrene board, leather, polyurethane, foam board, plastic sheet, metal sheet, textile, wallpaper, bricks, ceramic tiles and so on.
Media thickness: Up to 100mm
Power specification: 50Hz/60Hz, 220V(±10%) >35A, P2000W
Operational environment: Temperature: 20°C-28°C (68-82.4°F), Humidity: 40-60% RH
Dimensions [LxWxH]: 4200mm x 2080mm x1470mm
Net weight: 1300 KG
