Price: | Negotiable/Piece |
---|---|
Trade Terms: | EXW |
Min Order: | 1/Piece |
Pay Type: | T/T,Paypal,Western Union |

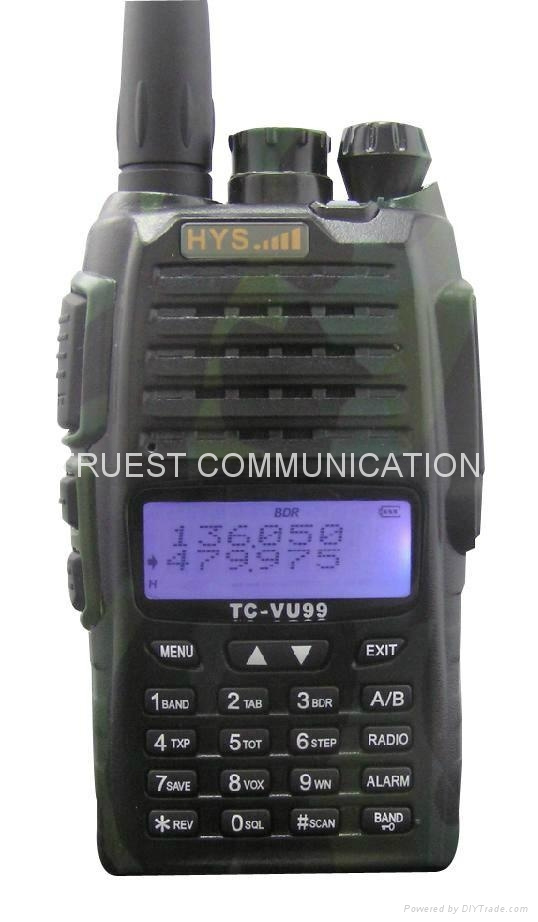

Prod Model: | TC-VU99CC |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia |
Frequency Range: | FM:87-108MHz(Receiving) VHF:136-174.995MHz( |
Memory Channels: | 128 |
Voltage: | 7.5V |
Operating Temperature: | Minus-30-Degree-60 Degree |
Battery Capacity: | 1600mAh |
Working Mode: | Same Frequency Simplex or Double Frequency Simplex |
Antenna Impedance: | 50omen |
Frequency Stability: | ±2.5ppm |
Net Weight: | About 246g |
Dimensions: | 58X105X38mm(Without Antenna) |
Application: | Military |
Condition: | New |
Screen: | With Screen |
Standard: | Standard |
4. Working Mode: U&V, U&U, V&V, V&U | 22. Auto Backlight | ||
5. Dual frequency display(Caller ID) | 23. Auto/Manual Keyboard Lock | ||
6+. Dual frequency standby in any band | 24. Three Display Color selectable both in transmitting,receiving and standby | ||
7. Receiving and transmitting inter-band | 25. Frequency, Channel order and Channel name multi-display mode | ||
8. DTMF Signaling System | 26. Calling Ring Function | ||
9. Digital FM Radio | 27. DTMF | ||
10. 50 Groups CTCSS and 105 Groups DCS | 28. PTT-ID Function | ||
11. ANI Code Display | 29. Mute mode (CTCSS/DCS, CTCSS/DCS and Optional Signal, CTCSS/DCS plus Optional Signal) | ||
12. All calls, group calls and selective calls | |||
13.Alarm(Distant Urgency Alarm and Alarm at local) | 30. Offset Frequency( can be set between 0 and 69.9875 MHz in Frequency Mode) | ||
14. Non-standard CTCSS(Can be edited arbitrary between 60Hz and 259.9 Hz) | 31. Operating MENU directly through Keypad | ||
15. TOT | 32. Frequency, Channel and MENU Fast Search Function | ||
16. High/Low Power shift | 33. Channel Parameter can be saved in the Frequency Mode | ||
17. CTCSS or DCS can be set respectively | 34. 128 Channels | ||
18. Channel Step(5K, 6.25K, 10K, 12.5K, 25K) | 35. Reverse Frequency Function | ||
19. VOX function | 36. U/V Receiving and Transmitting Inter-Band can be Connected with Repeater | ||
20. Battery Save Function | 37. Wired Cloning Function | ||
21. Wide and Narrow band Selectable (N:12.5KHz/W:25KHz) | 38. PC Programmable | ||
General Specifications | |||
Frequency Range | FM:87-108MHZ(Receiving) VHF:136-174.995MHZ(Receiving &Transmitting) UHF0:350-390.995MHZ(Receiving) UHF1:400-479.995MHZ(Receiving &Transmitting) UHF2:480-520.955MHZ(Receiving) | Working Mode | Same frequency simplex or Double frequency simplex |
Memory Channels | 128 | Antenna Impedance | 50Ω |
Voltage | 7.5V | Frequency Stability | ±2.5ppm |
Operating Temperature | -30ºC-+60ºC | Net Weight | About 246g |
Battery capacity | 1600mAh (Li-ion) | Dimensions | 58X105X38MM(without antenna) |
Transmitter (Measurements made per TIA/EIA-603) | |||
RF Output Power | High:4W ,Low:1W | Audio Modulation Characteristic | (300-3000Hz),+1dB- -3dB |
Modulation Mode | 16KφF3E/11KφF3E | Adjacent Channel Power | ≥65dB |
Spurious Radiation | <7μW | Modulation Distortion | ≤5% |
Max Offset frequency | Channel space 25KHz±5KHz/12.5KHz±2.5KHz | Channel Space | 25KHz |
Receiver (Measurements made per TIA/EIA-603) | |||
Sensitivity | (12dBSINAD) 0.18μV | Co-channel Rejection | ≥-0.8dB |
Noise Quieting Sensitivity | ≤0.8μV | Limited radio features | ≤3 |
Squelch Sensitivity | ≤0.2μV | Adjacent Channel Selectivity | ≥55dB |
Audio Output Power | 500mW | Inter modulation characteristics | ≥65dB |
Audio Distortion | ≤5% | Blocking characteristics | ≥84dB |
Audio Response | (300-3000Hz)+1dB--3dB | Spurious Radiation | 9KHz-1GHz≤-57dBm |
Channel Space | 25KHz≥70dB/12.5KHz≥60dB |
