Product Specifications
| Prod Model: |
Modem Q24plus |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Wavecome |
| Model Number: |
Q24plus |
| GSM GPRS Module: |
Quad Band |
| Frequency: |
850 900/1800/1900MHz |
| External Dimensions: |
58 × 32 × 6 Mm |
Product Description

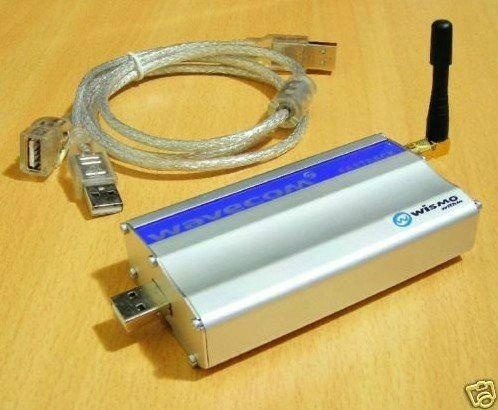

Modem Q24plus
Specifications
Wavecom q24plusMODEM
Wavecom GPRS MODEM
1. Wavecom GSM modem Q2403A Q24PL001 Q2406B
2. GSM standard SMS, Fax
Wavecom q24plusMODEM Wavecom GPRS MODEM at command USB
Wavecom q24plusMODEM Wavecom GPRS MODEM at command USB Wavecom GPRS MODEM
1. Wavecom GSM modem Q2403A Q24PL001 Q2406B
2. GSM standard SMS, Fax
3 RS232, USB interance
G-Q24R (INDUSTRIAL GSM/GPRS MODEM)
General Features:
Industrial design
Aluminum casing
Wireless access to internet
Based onWavecom module Q24 Plus
With TCP/IP stack
Internet Services: PPP, TCP, UDP, HTTP, SMTP,
POP3
Open AT
Flash memory 32MB, PSRAM 16MB
850/900/1800/1900MHz
3V SIM card slot
dB9 RS232 interface
SIMApplication Toolkit
Double tone multi-frequency function (DTMF)
Send and receive data, e-mail, SMS
GPRS Class 10
Antenna with high sensitivity
Always on-line
Comply with ETSI GSM Phase2+ standard
Output Power:
Class 4(2W@ 850/900MHz)
Class 1(1W@ 1800/1900MHz)
I Input voltage: 5V-36V DC
Input current: 1A-2A
Standby current: 56mA
Working current: 100-140mA
Working temperature: -20 -+55 degrees
Storage temperature: -25 -+70 degrees
Size: 76*54*25mm
Weight: 100g
Accessories: AC/DC adaptor, RS232 cable,
Antenna, 2 mounting plates, CD
Specification for data
GPRS Class 10 max. 85.6kbps(downlink
PBCCH support
Coding schemes CS 1, 2, 3, 4
CSD up to 14.4kbps
USSD
Non-transparent mode
Transparent mode
Specifications for SMS via
GSM/GPRS
Point to point MO and MT
SMS cell broadcast
Text and PDU mode
Specification for Fax
Group 3, class 1, 2
