1.25gbps 20km Single Optical Transceiver/SFP Module

1.25gbps 20km Single Optical Transceiver/SFP Module
Price: US $ 15/Pairs
Trade Terms: FOB,CFR,CIF
Min Order: 1/Pairs
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union

Product Specifications

Prod Model: DF-TK-A/B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Df
Data Rate: 1.25g
Wavelength(Tx/Rx): 1310nm/1550nm
Distance: 20km
Laser: Fp
Fiber Type: Sm
Optical Power: -9~ -3dBm
Sensitivity: ≤-24dBm
Single Power Supply: 3.3V
Delivery Time: 3-5working Days After Payment Recieved
Usage: Server
Type: Wireless
Support Network: Ethernet
Information Content: Data
Certification: RoHS
Condition: New

Product Description

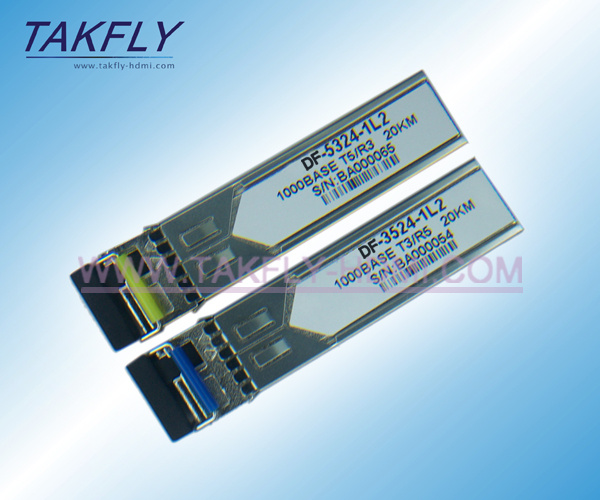

1.25Gbps 20km Single Fiber SFP Transceiver
Data rate : 1.25Gbps
Wavelength(Tx/Rx): 1310nm/1550nm
Distance: 20km
Laser: FP
Fiber: SM
Optical Power: -9~ -3dBm
Sensitivity: ≤-24dBm

Features
Compliant with IEEE802.3z Gigabit Ethernet Standard
Compliant with Fiber Channel 100-SM-LC-L standard
Industry standard small form pluggable (SFP) package
Simplex LC connector
Differential LVPECL inputs and outputs
Single power supply 3.3V
TTL signal detect indicator
Hot Pluggable
Class 1 laser product complies with EN 60825-1

RoHS Compliant

Applications
Gigabit Ethernet Application
Point-to-Point FTTX Application
The DF-TK-A/B Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 7.0. They are RoHS compliant and lead-free per Directive 2002/95/EC.


Optical Fiber Module

Standards and Protocols

IEEE 802.3z, CSMA/CD, TCP/IP

Wave Length

TX: 13100nm / RX: 1550nm

Power Supply

3.3V

Cable

Single-mode Fiber

Fiber Type

9/125 um Single-mode

Max. Cable Length

20KM

Data Rate

1.25Gbps

Port Type

LC or SC

Safety & Emission

FCC, CE,RoHS

Temperature

Operating Temperature: 0 °C ~70 °C  (32  °  F ~158  °  F   )
Storage Temperature: -40 °C ~80 °C  (-40  °  F   ~176  °  F   )

Humidity

Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 100 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
