Product Specifications
| Prod Model: |
SM-1224 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Each Gantry Working Area (X Y): |
1250X1225mm |
| Spindle Power: |
1.5kw Water Cooling (0-24000rpm) |
| Rail Type: |
Round Orbit |
| Control System: |
Mach3 ( USB Port ) |
| Drive Type: |
Stepper Motor and Driver |
| Transmit: |
Ballscrew |
| Table Type: |
Aluminum Profile T Slot Clamping |
| Power: |
AC220V±10% / 50~60Hz |
| Compatible Software: |
Type3/Artcam/Ug/PRO-E/Mastercam/Ucancam V8 etc |
| Command Code: |
Hpgl, G Code |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Number: |
Double-Spindle |
| Spindle Layout: |
Spindle Over |
| Certification: |
ISO |
Product Description

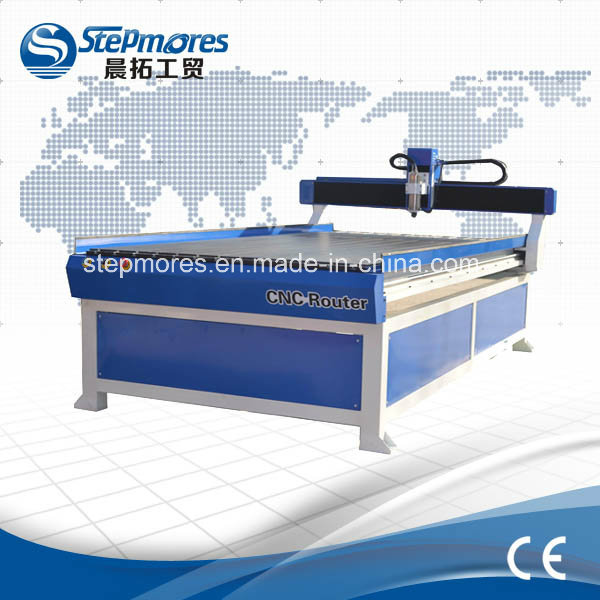

1.5kw spindle popular 1224 cnc machinery/cnc machine for carving wood,pvc,etc
The main specification:
| SM-1224 |
| Main configuration |
| spindle power | 1.5kw water cooling (0-24000RPM) |
| rail type | Square orbit |
| control system | Mach3 ( USB port ) |
| drive type | stepper motor and driver |
| Transmit | ballscrew |
| Table type | Aluminum profile T slot clamping |
| Main parameters |
| max travel speed | 6000mm/min |
| max working speed | 3000mm/min |
| working precision | 0.05mm/300mm |
| Repeatability precision | 0.01mm |
| Other information |
| power | AC220V±10% / 50~60Hz |
| Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V8 etc |
| command code | HPGL, G code |
| Size and weight |
| working area (X Y) | 1250x2450mm |
| Z axis travel distance | 140mm |
| feeding height | 140mm |
| table size | 1300x28300mm |
| Machine / packing size | 2.92x 1.79x1.32m/ 3.05*1.93*1.52m |
| Net / Gross weight | 800kg / 900kg |
FAQ
1. How should i pay for my order ?What is the procession of this purchase?
Answer: we accept TT by bank. you can do 30% prepayment at first, then we will start to make production. when the machine is ready , we will take pictures to you, and then you can do the ballance. after we got your payment. i will send the machine to you.
2. How about your service after sales ?Can your engineer speak fluent english?
Answer: we offer the sercice from you got the machine, including how to install the machine, how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype . our engineer has many years of experience for cnc machine service . he can speak very good english , so he can slove the problem in short time.
3. Are you a factory or trading company ?
Answer : We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better serivce after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory
Our Services
1. service before sales: our salesman will try to know your requirement about our cnc router specificaiton and what kind of work you will do . then we will offer our best solution for your requirement. then it can confirm each customer can get their real needed machine.
2. service during production: we will send photos of machines during making. so customers can know more details about the procession of making their machines. and give theirm suggestions.
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will check when the machine arrive your sea port and approximate date of arrival. so customers can know when it will arrive and make enough preparation.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some customers have question about it. we will have professional technist to help them to install and teach how to use through skype ,calling, vedio or mail.
7. service of warranty: we offer 1 year warranty for whole machine and half year warranty for spindle. if any parts of our machine is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easliy and have a fun of it. if customers have any problems of machine in 2 or 3 , 5 years , they can contact us . we will always here waiting for you.
Flow of work
offer → Parameter Identification → confirm PI → arrangement of
order after payment → production of cnc machines → professional testing
→ delivery and take a photo → arrival to Clients
Contact person:Andy zhu
Tel:+86 15194126152
Welcome visit China,welcome visit our factory!
Note:
Please tell me the following questions:I will recommend the most suitable machine to you!
1.)What is the materials do you want to engraving or cutting?
2.)What is the max size of the materials?
We are CNC router machine OEM and Sincerely find honest agent from every country !
Let us hand in hand,create the beautiful future!
Jinan chentuo Industry And Trade Co., Ltd. (brand is stepmores), specializes in manufacturing CNC routers. Our routers have gained many computerized numerical control patents.
Our company is devoted to the research and development of carving CAD/CAM technology and CNC technology. \"Stepmores\" branded CNC routers have obtained remarkable achievements in the design of precise carving machines and artistic carving technologies. We have realized the industrialization of computerized numerical control technologies.
Our routers are sold in many European and American countries. These products are very popular in these markets and have established a leading position in the carving machine field.
After several years of rapid development, our routers have already covered advertisement decoration, marking, label, woodworking, mold manufacture and craft and gift fields. Our routers for woodworking, advertising and molding well meet the demands of customers in different countries and regions.
We are still trying our best to produce innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please no hesitate to contact us for future cooperation. We hope to get mutual benefits with you in the near future.
