Description:

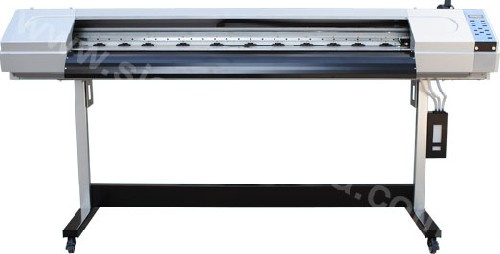

LFIP-LC1600 is a wide format printer, of which the printing width is 1.6M, and its suitable ink is water-based. This printer adopts DX5 piezo printing head which is 24.4mm wide and 8 lines of nozzles. What's more, every line contains 180 nozzles, with a total of 1440 nozzles.
Characteristics:
1. High transmission precision and long lifespan for precise gear-occlude directly transmission is adopted.
2. Durable and lower noise when printing with famous brand guide rail -THK.
3. Adopts special fluid damp feeding paper system and equipped with high quality fluid damp, thus feeding paper processor is more precise and smooth.
4. Adopts advanced variable DOT print technology, and minimum DOT reach 3.5pl, maximum 27pl.
5. With particular two-dimension intelligent eclosion and wave eclosion print function could avoid Banding in printing process.
6. The printer supplies automatically cutting paper system, and thus user can select auto or manual cutting mode, saving both time and labor.
7. The system supplies 6pass print mode. Thus users can select various materials for printing.
8. The printer is equipped with eight 500ml big cartridges which supply ink for one line nozzle separately, so it ensures output big heavy picture with high speed.
9. The printer takes lead to launch quick dry ink which can dry immediately after output, moreover hard to return the humidity and viscidity.
Application:
Adopting standard 6-color or dual 4-color print which outputs delicately and colourfully, it is suitable for advertising production and
Other high demand for multicolor output.
|
Product parameter |
|
Model |
LFIP-LC1600 |
|
Print head |
Piezo technology,Epson fifth printer head |
|
Ink |
Water based ink |
|
Color mode |
Dual KCMY |
|
Nozzles |
(180nozzles*8lines)*1head |
|
Print head height |
1.5mm/2.5mm(Adjustable) |
|
Ink supply method |
Block brake type cartridge |
|
Feed paper method |
Multi-press feed paper |
|
Usable materials |
Coat paper, acid-proof paper, high glossy photo paper,
pp synthetic paper,vinglsheet, film |
|
Cut |
Auto/Manual |
|
Max material width |
1625mm |
|
Max printing width |
1620mm |
|
Min printing margin |
5mm |
|
Printing resolution and speed |
Resolution(dpi) |
Speed |
|
540*720(6pass) |
11 m 2 /h |
|
720*720 |
4pass |
16 m 2 /h |
|
8pass |
8m 2 /h |
|
1440*720(8pass) |
3.4 m 2 /h |
|
14440*1440(16pass) |
1.7 m 2 /h |
|
Roll owter diameter |
2(In.)/3(In.) |
|
Material |
Single paper(feed front)/Roller paper(feed rear) |
|
Maximum weight for roll material |
40Kg |
|
Interface |
USB 2.0/ Hi USB |
|
RAM |
128M |
|
Roller |
Option |
|
Printing language |
Standard printer languagess |
|
Power |
AC100-120V/AC220-240V(Adaptive),50/60Hz±1Hz |
|
Power consuption |
Printing mode |
100W |
|
Standby mode |
40W |
|
Acoustic noise |
≤50dB |
|
Environment |
Temprature:20-32°C,Humidity:40-60%(Non-condensing) |
|
Dimension/Net Weight |
2430mm*750mm*1250mm/156KG |
|
Packing size/Gross Weight |
2610mm*875mm*670mm/215KG |
