Product Specifications
| Prod Model: |
MC0102FM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission Medium: |
Multi Mode,UTP Cable |
| Transmission Distance: |
up to 550m |
| Fiber Interface: |
Sc,FC,St Optional |
| Type: |
Wired |
| Network Site: |
Intermediate Node Routers |
| Application: |
SOHO |
| Firewall: |
Without Firewall |
| Transfer Rate: |
10/100Mbps |
| Port Structure: |
Not Modular |
| Performance: |
Line-Rate Router |
| Architecture: |
Crossbar System |
| Ports: |
1 Sc Fiber Port and 1 RJ45 Port |
| Network: |
Fast Ethernet |
Product Description

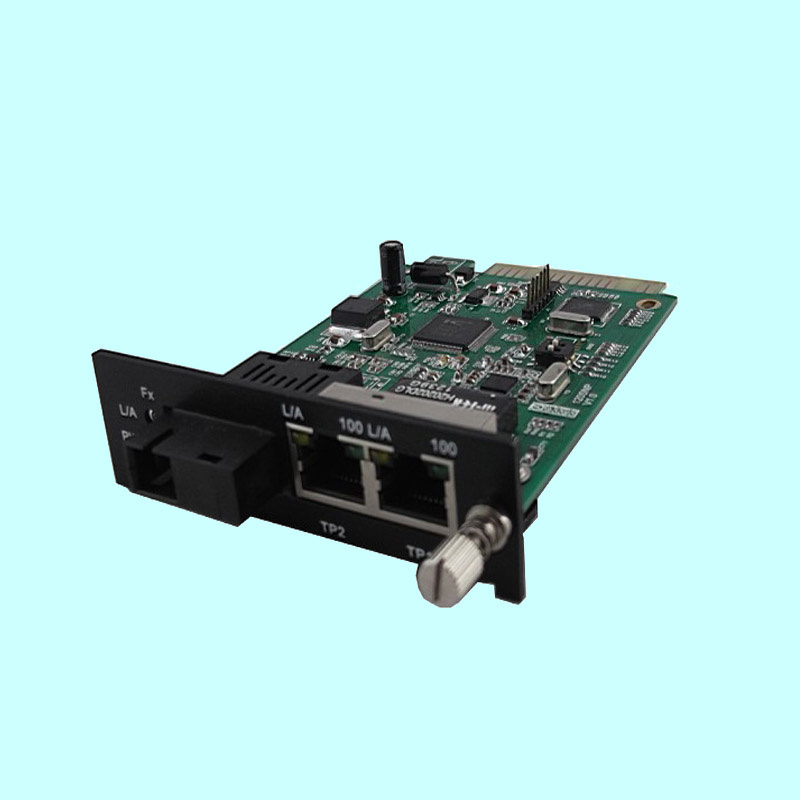

MC0102FM Series Ethernet media converter is two 10/100Base-TX to 100Base-FX for remote management. NT-104SN Series are available as a compact standalone unit or as a chassis plug-in modular. The hot-swappable NT-104SN Series can be mounted in NT-R16SN chassis. The plug-in modular can be managed by NT-102SSN managed card and transmit the manage data to remote side through TS1000. The standalone media converter is available as a desktop or wall-mounted unit, standalone media converter can powered by 220VAC or 48VDCpower supply. It supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber transmission.
Feature
10/100Mbps auto-sensed, facilitating network upgrade
Built-in efficient switching core to implement flow control and reduce broadcast packets
Support Agreement:IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX , IEEE 802.3u 100Base-FX, IEEE 802.3x flow control, IEEE 802.1Q VLAN
Support two 10/100Base-TX and a 100Base-FX
10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
It uses a store-and-forward mechanism to avoid packet loss and error frames
Jumbo frames support a maximum of 1552 bytes
Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
Port-based VLAN and Tag VLAN
Support the NT-R16SN management platform for local management and remote management, and can be mounted with NT-102SN, NT-103SN in a chassis
When as the center-side card , the remote side can be NT-1100 series and NT-102SN series , and the remote-side device can be managed
Support port lock, the uplink and downlink bandwidth (step of 32KB), operating mode, VLAN and other settings
Support remote loopback
Support dying gasp alarm for remote side
Support Dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
Support SFP module and DDM function
Specs:
| Parameter | Specifications |
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow Control ,IEEE 802.1Q VLAN |
| Wavelength | 1310nm/1550nm |
| Transmission distance | Dual fiber multi-mode : 2km
Dual fiber single-mode:20/40/60/80/100/120km
Single fiber single mode: 20/40/60/80/100 km
Category-5 twisted pairs:100m |
| Port | One RJ45 port:
Connecting STP/UTP category-5 twisted pairs, EIA568A/B
One optical port:
FC,SC,ST,LC |
| Conversion means | Store and Forward mode or Cut-Through mode |
| Buffer space | Built in 512Kb RAM for data buffer |
| Flow control | Full duplex: flow control;
Half duplex: back pressure |
| BER | <10-9 |
| MTBF | 50,000 hours |
| LED indicator | POER (power supply), FX LINK/ACT (optical link action)
P1/P2 LINK/ACT (TP cable link/action)
P1/P2 100 (TP cable rate100M), |
| Power supply | Internal: AC90~264V/DC100~380V input, 5V1A |
| Power consumption | <4W (the chassis at full load) |
| Operating temperature | -20~70ºC |
| Operating humidity | 5%~90% |
| Storage temperature | -40~85ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions | 156mm (W)×128mm(D)×32 mm(H) (desktop )
112.8mm (W)×77.2mm(D)×23 mm(H) (Card style) |
