Qingzhou Ludong Machinery Co., Ltd. >> 10-14m3/H Construction Machinery for Concrete Mixers (JZC 350B)

10-14m3/H Construction Machinery for Concrete Mixers (JZC 350B)

Name: 10-14m3/H Construction Machinery for Concrete Mixers (JZC 350B)
Brand: china-manufacturer-directory.com
SKU: 764204285
Availability: InStock
Rating: 4.6 (71 reviews)

Supplier:	Qingzhou Ludong Machinery Co., Ltd.
Price:	US $ 2000Set
Min Order:	1Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JZC350B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Concrete Mixer Machine Model:	Jzc350b
Hopper Lifting:	Reduction Gear Driving
Discharging Capacity:	350L
Charging Capacity:	560L
Mixing Motor Power:	5.5kw
Water Pump Power:	0.55kw
Lifting Power:	4.5 Kw
Outline Dimension:	301022402800mm
Concrete Mixer Weight:	1450kg
After-Sale Service:	Engineers Available to Oversea
Type:	Concrete Mixer
Certification:	CE
Condition:	New
Productivity:	14m3/H
Color:	as Customer Need

Product Description

10-14 m3/h Construction Machinery
For Concrete Mixers (JZC350B)

Characters:
1. Leading professional design and manufacture;
2. Reasonable structure design and attractive appearance;
3. High efficiency and great mixing quality; Reduction gear driving hopper lifting
4. China high quality concrete mixer machine JZC350B
5. ISO9001: 2000 and CE test.

Brief introduction:
JZC series mixer is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and precast plant.

Specification:

Model	JZC350B
Discharging volume	350L
Charging volume	560L
Productivity	14m3/h
Mixing drum rational speed	14.5r/min
Maximum size of aggregate	60mm
Accuracy of water supply	Error<=2%
Mixing motor	5.5kw
Water pump motor	0.55kw
Lifting motor	4.5kw
Maximum towing speed	20km/h
Overall dimension	301022402800mm
Delivery dimension	285022302350mm
Weight	1450kg

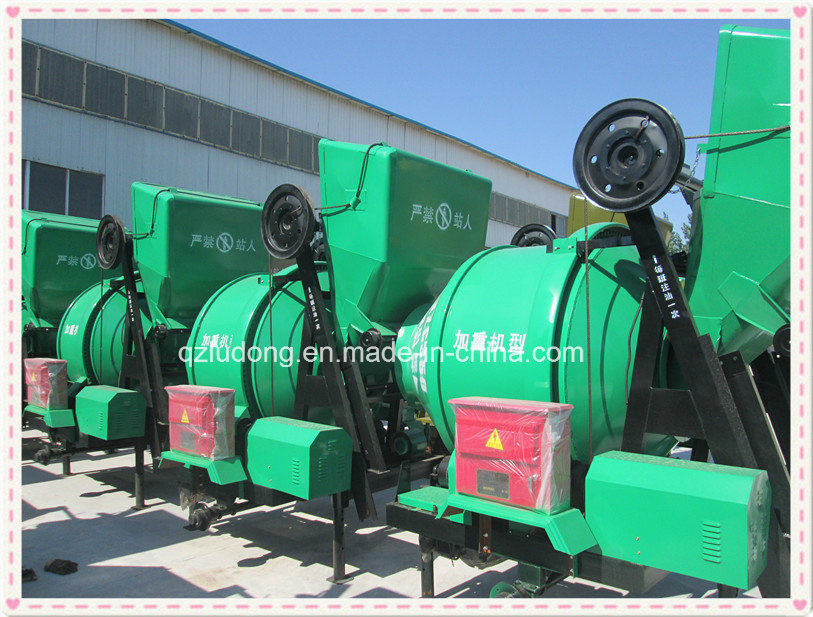

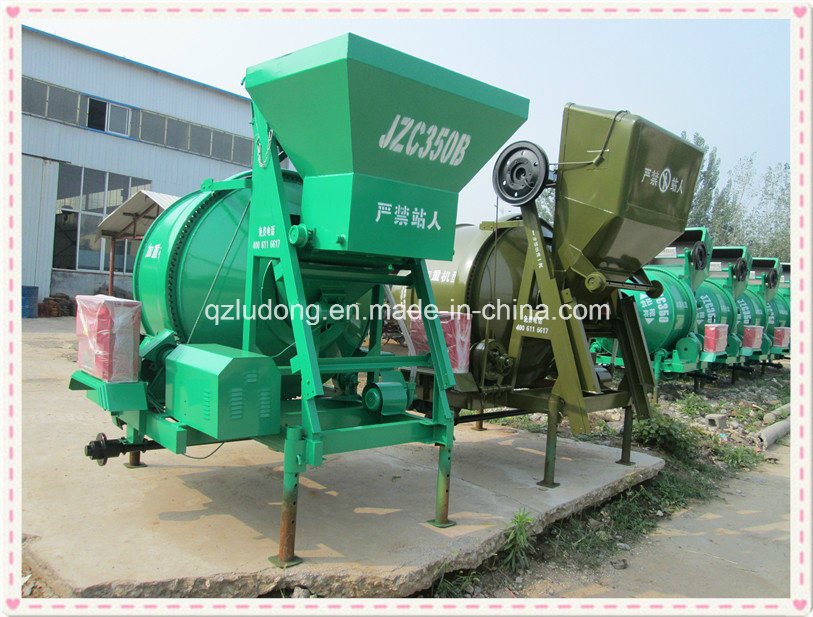

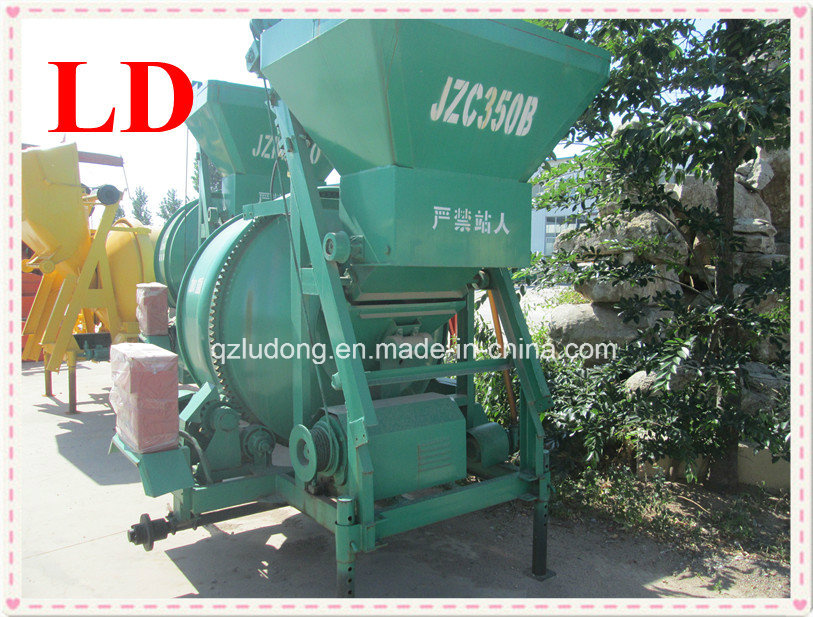

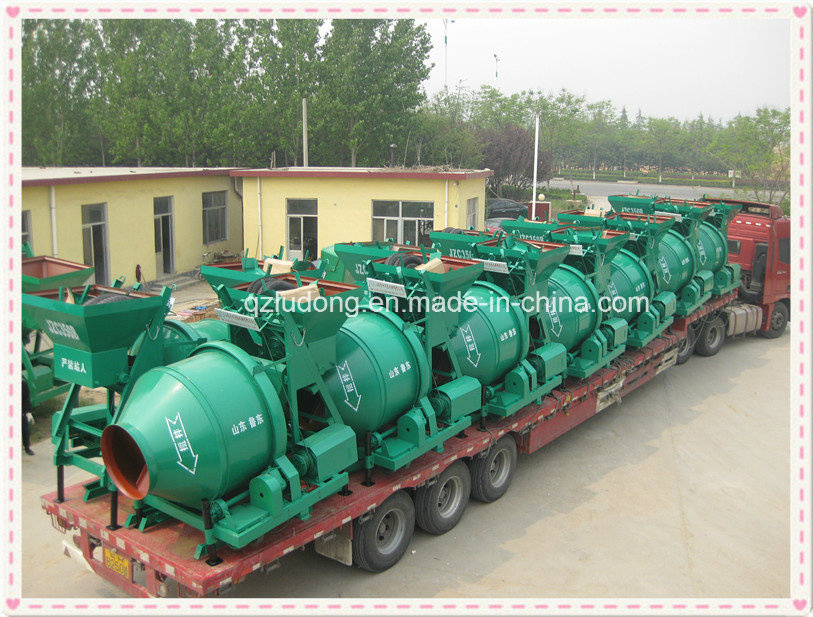

JZC350B photos:

Qingzhou Ludong machinery Co., Ltd is located in Qingzhou City, which is the most important heavy machinery industry base in China. We are one manufacturer factory specializing in the research, development and production of construction machinery. Nowadays, we specialize in the following machines: Concrete mixing plant, concrete batching machine, all model concrete mixer, screw conveyor, etc.

With our good quality and outstanding customers service, we have exported many foreign countries. Such as Russia, Uzbekistan, Saudi Arabia, Brazil, Venezuela, Ecuador, Philippines, Vietnam, Libya, Ghana, etc.

We sincerely welcome foreign friends come to have visit. Make friends is first, do business is second.

Choose business cooperation partner, choose LUDONG

Choose Chinese sincere friends, choose LUDONG

Website: HTTP: //ying. Ludongjx.com, HTTP: //qzludong. En. Made-in-China. com

Mobile: 86-15306462088
