Product Specifications
| Prod Model: |
JS750 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Concrete Mixer Model: |
Js750 |
| Discharging Capacity: |
750L |
| Charging Capacity: |
1200L |
| Mixing Motor Power: |
30kw |
| Water Pump Power: |
1.1kw |
| Lifting Power: |
7.5 Kw |
| Discharge Model: |
Manual or Pneumatic Type |
| Mixing Blade: |
2X7 |
| Concrete Mixer Weight: |
6800kg |
| After-Sale Service: |
Engineers Available to Service Machinery Overseas |
| Type: |
Concrete Mixer |
| Certification: |
CE |
| Condition: |
New |
| Productivity: |
35m3/H |
| Color: |
as Customer Need |
Product Description

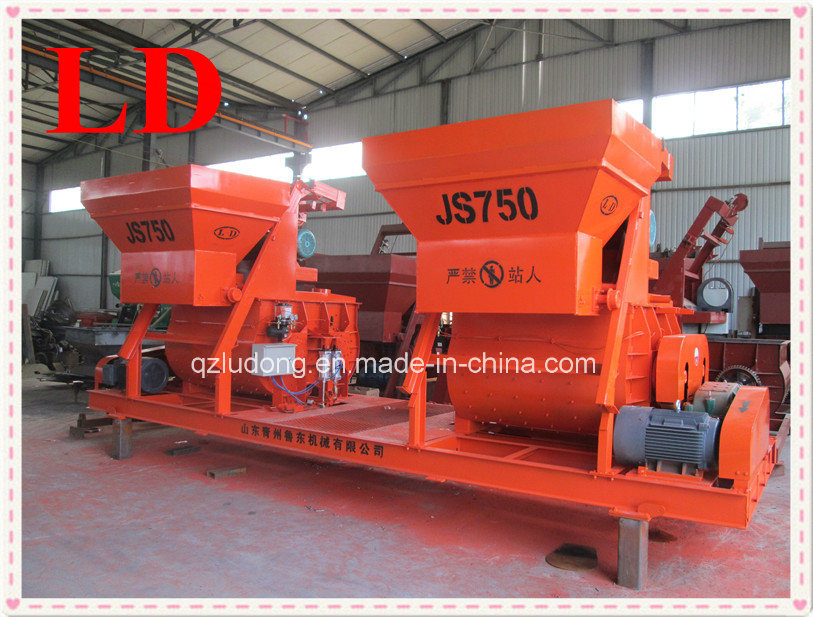

30 m3/h JS Series Concrete Mixer For Construction Machinery
Characters:
1. Leading professional design and manufacture;
2. Reasonable structure design and attractive appearance;
3. High efficiency and great mixing quality;
4. China high quality 30m3/h JS series concrete mixer for construction machinery.
5. ISO9001: 2000 and CE test.
Brief introduction:
JS750 twin shaft compulsory concrete mixer can mix dry-hard concrete, plasticity concrete, fluidity concrete, light weight aggregate and various mortar. Drum sets with high manganese cast steel liner and mixing blade, which is durable and easy to replace. Once it is combined with batching machines, concrete batching plant will come into being, which applies to various kinds of large&medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects. JS750 twin shaft compulsory concrete mixer is designed reasonable, easy to operate and woke stably, and it also has many advantages such as high mixing quality, high productivity, low energy consumption, low noise and long life wearing parts.
Model | JS750 |
| Discharging volume | 750L |
| Charging volume | 1200L |
| Productivity | 35m3/h |
| Maximum size of aggregate | 80/60 mm |
| Mixing blade | 30.5 r/min; 2x7 |
| Mixing motor | 30kw |
| Lifting motor | 7.5kw |
| Water pump motor | 1.1kw |
| Discharging type | Manual or Pneumatic type |
| Discharging height | 1.5/2.7/3.8 m |
|
|
| Overall dimension | 5930*2300*6260mm |
| Delivery dimension | 4146*2300*2800mm |
| Weight | 6800kg |
