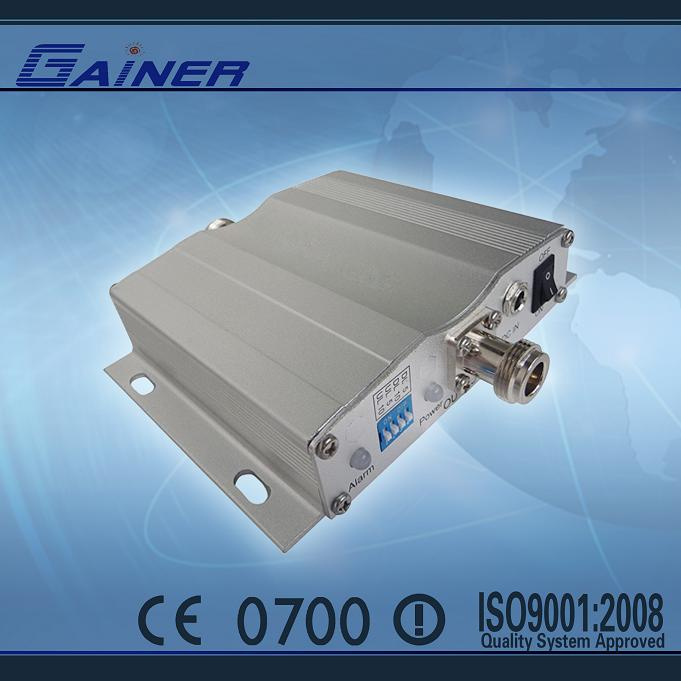

10 15dBm Pico WCDMA DIP Switch Power Amplifier
Features:
1. Elegant and Compact design
2. Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.
3.15dB MGC(Manual gain control) 5dB one step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.
4. Auto shut off function available for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.
5. Low power consumption - 6W only.
Standard Package:
1) Power supply adapter 1 unit
2) AC power plug (USA/EU/Swiss/UK/SA/China standard etc) 1unit
3) Installation kit 1unit
4) User manual 1unit
Recommended Accessories:
1)Donor(outdoor) antenna:
For Single band repeater: Yagi Antenna(8dBi 10dBi)
For Dualband repeater: Patch Antenna(8.5dBi 806-960/1710-2700MHz)
For Triband repeater: Patch Antenna(8.5dBi 806-960/1710-2700MHz)
2)Service(indoor) antenna: Omni Ceiling Antenna (3dBi, 806-960/1710-2700MHz)
3)2*15m of 50Ω -5 coaxial cable with 2 connecters.
| Model Number | GCPR-G10 |
| Electrical specification | Uplink | Downlink |
| Frequency Range | EGSM&GSM | 880 ~ 915 MHz | 925 ~ 960 MHz |
| Max .Gain | ≥60dB | ≥ 60dB |
| Max .Output Power | ≥10dBm | ≥10dBm |
| Band width (-3dB) | Wide Band |
| MGC ( Step Attenuation ) | ≥15dB / 5dB step |
| Automatic Level Control | ≥15dB,auto shut off 31dB after 15dB |
| Gain Flatness | ≤6dB(P-P) |
| Noise Figure | ≤6dB |
| VSWR | ≤1.8 |
| Group Delay | ≤5μs |
| Frequency stability | ≤0.01ppm |
| Spurious Emission & Output inter-modulation | GSM Meet ETSI TS 151 026 V6.1.0 |
| WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 ) |
| CDMA Meet IS95 & CDMA2000 |
| LED Alarm | Standard |
| Power LED | Green light when power on. |
| ALC LED | Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB,
LED off after 5 second red color |
| Mechanical Specifications | Standard |
| I /O Port | N-Female |
| Impedance | 50 ohm |
| Operating Temperature | -25ºC~+55ºC |
| Environment Conditions | IP40 |
| Dimensions | 176x100x44mm |
| Weight | Bitmap |
| Power Supply | Input AC90~264V,output DC5V / 2A |
