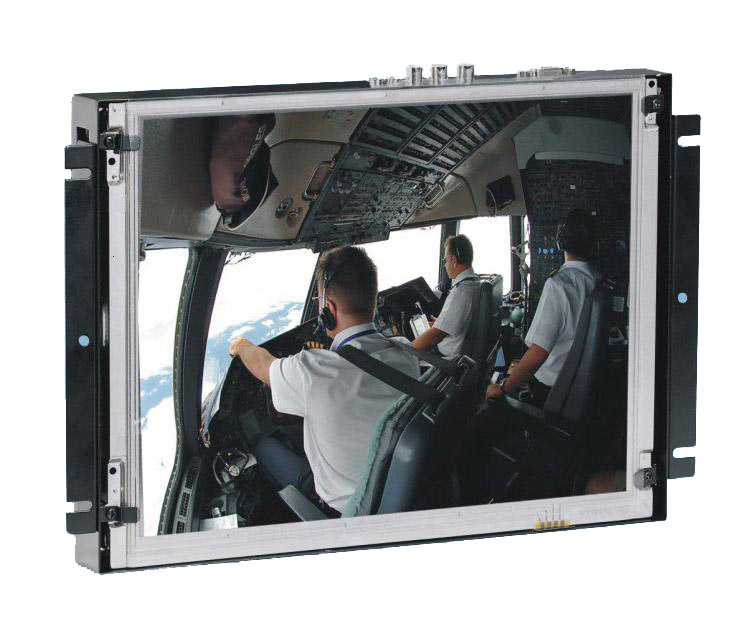

10.2 Inch Open frame monitor with Touch screen
Desciption: 10.2" 16: 9 LCD metal frame t monitor
Model: P102-9A
Brightness: 250CD/m²
Touch Screen: 4&5 Wire Resistive Touch(optional)
Touch Interface: USB&RS232 (optional)
DOT Resolution: 800X480 pixels (max to1920× 1440)
Contrast Ratio: 300: 1
Aspect Ratio: 16: 9
Backlight: LED
Viewing Angle: 65° /65° (L/R), 45° /65° (U/D)
Input Voltage: DC12V± 15%
Signal: VGA. AV1, Audio R. In&L. In, Audio in&out, S-video
Power Consumption: 6W
WorkTemperature: -20~60
Store Temperature: -30~70
Unit Size: 287.7L × 149W × 29.5H (mm)
Unit Weight: 1500g
|
Description |
|
Product Name: |
10.2 Inch Open frame monitor with Touch screen |
|
Product Model: |
P102-9AT |
|
LCD Module Model: |
AT102TN03 V. 1 |
|
TFT Display: |
10.2" TFT display with LED Backlight |
|
Specification: |
|
Touch screen: |
4-wire resistive touch panel |
|
Interface of touch screen driver |
USB type |
|
Dot Resolution: |
800x480 pixels (up to1920× 1440) |
|
Brightness: |
250 cd/m² |
|
Response time: |
Ton: 15ms, Toff: 20ms |
|
Dot pitch: |
0.0925(W)X0.276(H) mm |
|
Active area: |
222.0(W)X132.48(H) mm |
|
Contrast Ratio: |
300: 1 |
|
Aspect Ratio: |
16: 9 |
|
Backlight: |
LED |
|
Viewing Angle: |
65° /65° (L/R) 45° /65° (U/D) |
|
Input Voltage: |
DC12V± 15% |
|
Input Signal: |
VGA . Video . S-video. Audio(HDMI & DVI for optional) |
|
Power Consumption: |
≤ 6W |
|
Operation Temperature: |
-30° C~85° C |
|
Storage Temperature: |
-30° C~85° C |
|
Unit Size: |
288L × 149W × 30H (mm) |
|
Unit Weight: |
1500g |
|
Application |
Accessories |
|
Medical equipment |
• Home AC Adapter |
|
Kiosks |
• Remote Controller |
|
POS terminals |
• VGA Cable |
|
Embedded system |
• USB Touch Cable |
|
Industrial control |
• Touch Drive Disc(for optional) |
|
Security |
• Touch Pen(for optional) |
