Auka Industrial Limited >> 10.4" All-in-One Industrial Embedded Computer with Windows 7/8 System

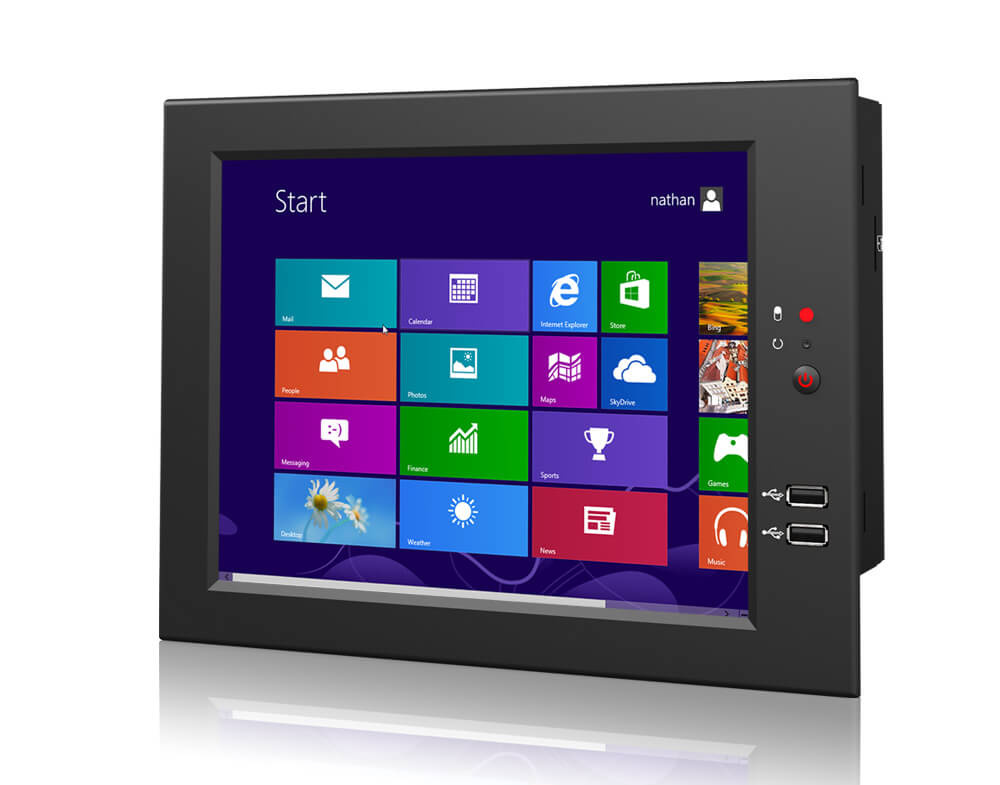

10.4" All-in-One Industrial Embedded Computer with Windows 7/8 System

Supplier:	Auka Industrial Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	PC-1041T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CPU:	Intel N2800, Dual-Core 1.86GHz
Memory:	2g DDR3, Optional: 4GB
Storage:	Pcie Msata SSD 32g, Support up to 128g (Optional
OS:	Windows 7/8, Windows Embedded 7, Linux
Touch Panel:	5-Wire Resistive
Display Screen:	10.4 Inch LCD Panel
Resolution:	800 X 600
Brightness:	250CD/M2
Backlight:	LED
Aspect Ratio:	4:3
Type:	IPC
Touch Screen:	Touch Screen
Installation:	Wall-Mounted
Application:	Industrial
Power Supply Type:	ATX12V
Hard Disk Rack Type:	Board Type
Accessories:	Industrial Power Supply
Screen Size:	10.4 Inch
CPU Type:	Dual-Core

Product Description

Features:
Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces.

Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems.

It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields.

Powerful 1.86GHz dual-core CPU, 2G DDR3 RAM;
10.4" LED display with resistive touch;
RS232 × 4, COM 2 supports RS485/232/422;
Wide voltage 6-32V for optional;
Metal housing design;
HDMI & VGA output;
Fanless cooling system;
Dual Ethernet port;

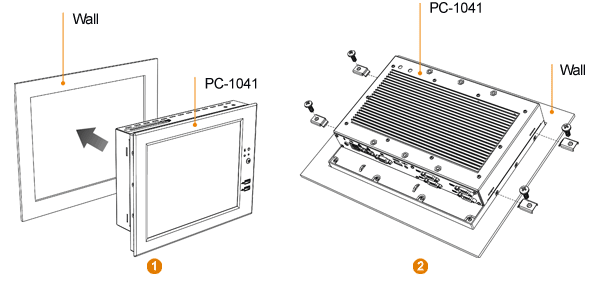

Multiple mount methods:
Mount from the front of wall, fixed with lock sheet and srews. It's more convenient for customers to control & maintain the device behind the wall.

Screwed with Fixed bracket, It's much more easily to be hung on the wall, also available for 75mm / 100mm VESA standard mount.

Display Screen	10.4" LED backlit
Resolution	800×600 (1,440,000) pixels
Touch Panel	5-wire resistive
Brightness	250cd/m2
Aspect Ratio	4:3
Contrast Ratio	500:1
Viewing Angle	140° / 110°(H/V)
OS	Windows 7/8, Windows Embedded 7, Linux
CPU	Intel N2800, dual-core 1.86GHz
Memory	2G DDR3, optional: 4GB
Storage	PCIe mSATA SSD 32G, support up to 128G (Optional: 2.5" SATA HDD)
Chipset	Intel NM10 chipset
L2 Cache	1024KB
Video Card	built-in display memory
Sound Card	4 channels
Expansion	Built-in Mini PCIe×1, optional for 3G / WIFI

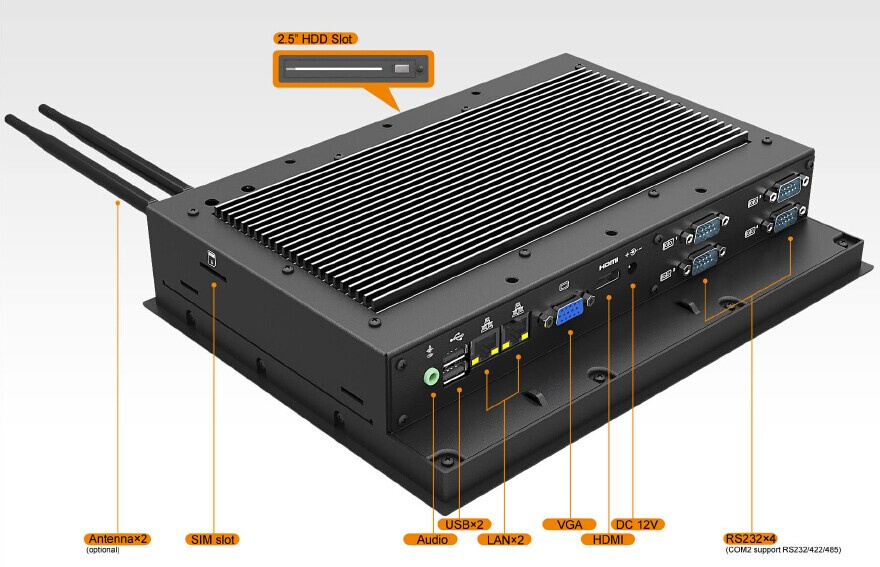

Interface	RS232×4 (COM2 support RS232/422/485), HDMI out, VGA out, Audio out, DC 12V in, USB2.0×4, LAN×2, SIM slot, Antenna,
Input Voltage	DC 12V, optional: DC 6-32V wide voltage
Current	1.8A
Power Consumption	≤22W
Speaker	1W
Working Temperature	0~50ºC
Storage Temperature	-10~65ºC
Dimension(LWD)	280 × 210 × 58.8 mm
Weight	2190g

Optional:
GPS, 3G, Bluetooth, Wi-Fi 802.11 b/g/n.

Applications:

Information Display
Digital Signage
Advertising Terminal
Service Kiosk
Industrial Control
Equipment Matching
In-Home Control Device
Digital Signage
Security & Surveillance
General Communication
Distance Data Acquisition
Visual Communication
Tele-education
Internet Surfing
Entertainment & Multimedia Player

Auka Industrial Limited is a high-tech enterprise specializing in TFT LCD Monitor, Touch Screen Monitor, Camera Field Monitor, Embedded Computer, Industrial Panel PC, CCTV Monitor, USB Touch Monitor, Open Frame Monitor, LCD SKD Module, All in one POS, Transparent LCD, Sunlight Readable Monitor, FPV Monitor, Police Body Worn Camera and car DVR Recorder. And are widely used in the fields of security monitoring, traffic control center, broadcasting system, military, city square, shopping mall, bank, school and hospital, etc. Our monitors can be applied in devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, POS, Medical Treatment, CNC Machine etc. We have set up a large customer network and gained praise since establishment in 2005 for preciseness, cordiality, powerful technology support and perfect market understanding. A factory with more than 8, 000 sq. M. As well as a team of well-trained employees. Our department of R&D, production, sales and after-service strictly abide by ISO9001 quality control system. Certified by CE, FCC, RoHS, CCC and E-MARK standard, the performance of our products meets or exceeds the advanced world standard. And our own-designed LCD Touch Monitor have became popular among many long- term customers and partners. Our products have been exported to America, Europe, Middle East, Australia and Southeast Asia.

We have yeares experience in OEM of VGA Touch screen, TFT LCD Module, Embedded Computer.

Welcome to our company for any OEM / ODM cooperation! Let' S go ahead hand in hand to embrace our prosperous tomorrow!

Professional, fast, and wonderful after-sales service is our mission. Customers' satisfaction is our final aim.
