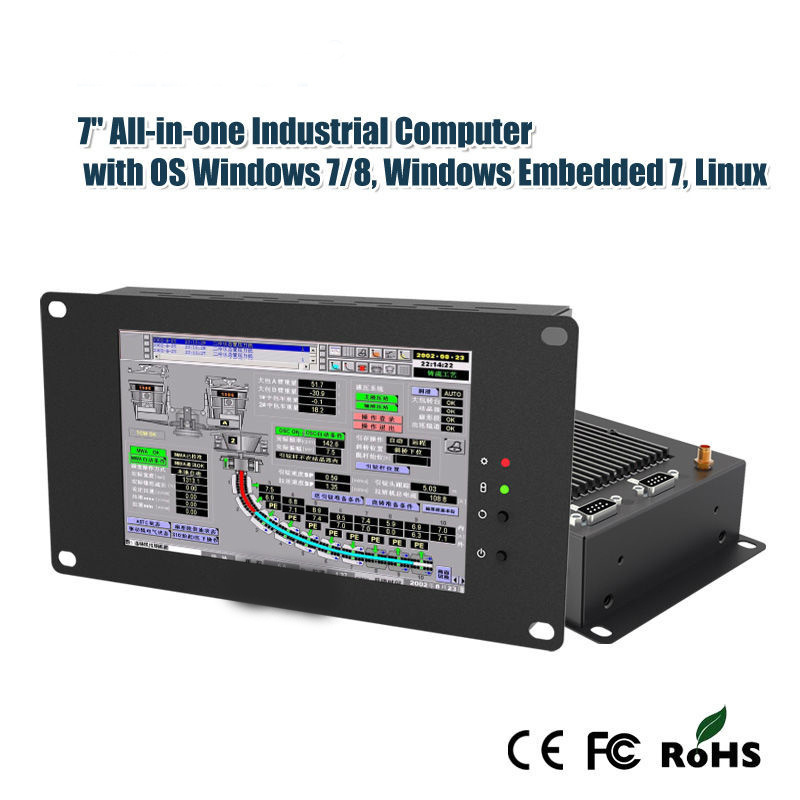

7" Panel PC All-in-One Industrial Computer with Windows 7/8 System
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces.
Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems.
It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields.
Applications:- Information Display
- Digital Signage
- Advertising Terminal
- Service Kiosk
- Industrial Control
- Equipment Matching
- In-Home Control Device
- Digital Signage
- Security & Surveillance
- General Communication
- Distance Data Acquisition
- Visual Communication
- Tele-education
- Internet Surfing
- Entertainment & Multimedia Player
Display Screen | 7" LED backlit |
Resolution | 800×480 (1,152,000) pixels |
Touch Panel | 4-wire resistive |
Brightness | 450cd/m2 |
Aspect Ratio | 16:9 |
Contrast Ratio | 500:1 |
Viewing Angle | 140° / 120°(H/V) |
OS | Windows 7/8, Windows Embedded 7, Linux |
CPU | Intel N2800, dual-core 1.86GHz |
Memory | 2GB DDR3, optional: 4GB |
Storage | PCIe mSATA SSD 32G, support up to 128G |
Chipset | Intel NM10 chipset |
L2 Cache | 1024KB |
Video Card | built-in display memory |
Sound Card | 4 tracks |
ExpansionStorage | Built-in Mini PCIex1, optional for 3G/WIFI |

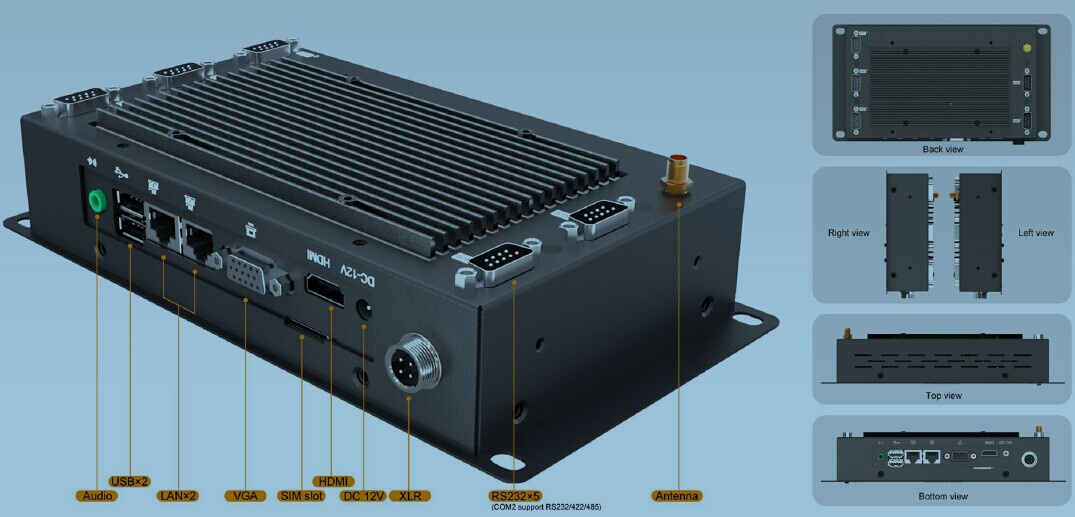

Transfer Interface | RS232X5(COM2 support RS232/422/485),HDMI,VGA,Audio |
Input Voltage | DC 12V in,XLR,USB2.0X2,LANX2,SIM slot,Antenna |
Current | 1.0-2.0A |
Power Consumption | ≤40W |
Speaker | 1W |
Working Temperature | 0- 50ºC |
Storage Temperature | -10 - 65ºC |
Dimension(LWD) | 200× 117 × 46 mm |
Weight | 1225g |
Prod Model: |
PC-7 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Memory: |
2 GB |
Storage: |
32 GB SSD |
Touch Screen: |
4-Wire Resistive Touch |
CPU: |
Intel N2800, Dual-Core 1.86GHz |
Display Screen: |
7 Inch LCD Panel |
Resolution: |
800X480 |
Aspect Ratio: |
16:9 |
Brightness: |
450CD/M2 |
Backlight: |
LED |
Contrast Ratio: |
500:1 |
Application Field: |
Industrial Control |
Processor Type: |
Intel |
Stratification: |
Application Layer |
Range Of Application: |
General |
Bus Type: |
Bus Type |
Certification: |
FCC |
Type: |
Embedded Board |
Instruction Type: |
RISC |
Kernel: |
PIC |
