Product Specifications
| Prod Model: |
IBOX-137C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processor Type: |
Intel |
| Certification: |
FCC |
| Type: |
Embedded Systems |
Product Description
Main Feature
· Compacting fanless design
· Intel Celeron 1037U 1.8GHz
· Support 10*RS232 COM
· Support DC12V power supply
Introduction

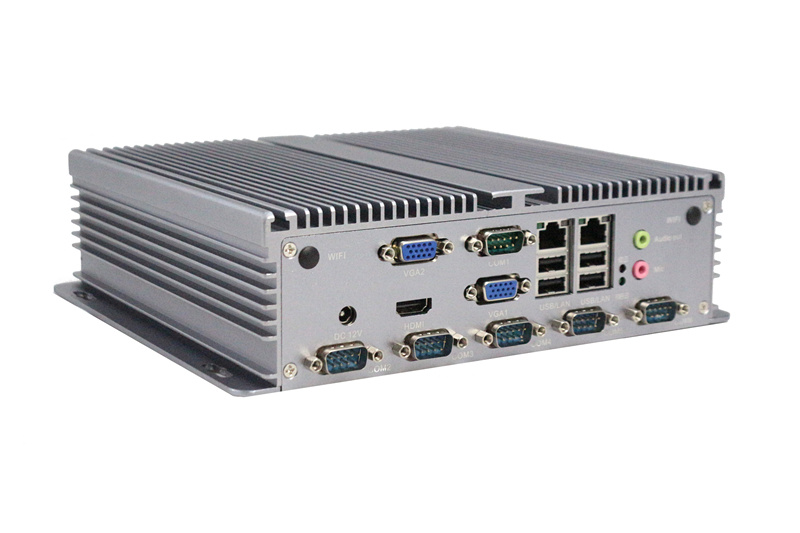

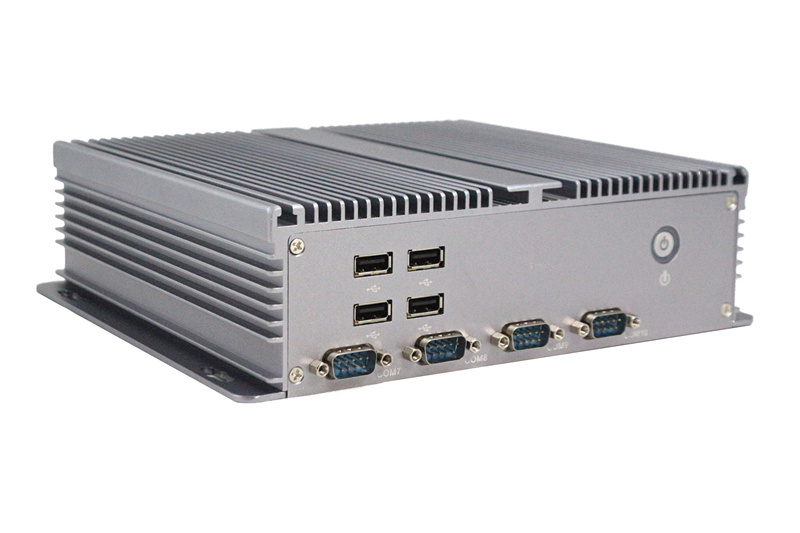

IBOX-137C series is Industrial grade MINI box PC's with Intel Celeron 1037U 1.8GHz CPU, Intel NM70 Chipset, which comes with 2*VGA, 10*RS232, 2*RJ45 10/100/1000M LAN, 8*USB with compacting Fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to Intelligent car,
Environmental control, equipment, industrial line, transportation,
Automation, communication etc.
| Material | Industrial Al-alloy |
| CPU | Onboard Intel Celeron 1037U 1.8GHz |
| Chipset | Intel NM70 |
| Memory | DDR3 2G/4G(optional) |
| Storage | 2.5"SATA 500G HDD,16G/32G SSD(optional) |
| I/O | 2 x VGA |
| 10 x RS232 |
| 1 x HDMI |
| 2 x RJ45 10/100/1000M LAN |
| 8 x USB |
| 1 x Line Out,1 x Mic |
| WIFI(optional) |
| Power supply | DC 12V Input |
| LED light | 1 x Power LED,1 x HDD LED |
| Watchdog timer | Programmable overtime interrupt or recovery |
| Color | Gray |
| OS | Windows 7,Windows XP, Windows XP Embedded,Linux |
| Dimension | 234 x 200 x 65mm |
| N.G | 3.2KG |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Storage Humidity | 5~90%@40°C(non-condensing ) |
| Vibration | 5 grms / 5 ~ 500Hz in working status(SSD)
1 grms / 5 ~ 500Hz in working status(Built-in HDD module) |
| Shock | 50 g peak acceleration(11ms duration)(SSD)
20 g peak acceleration(11ms duration)(Built-in HDD module) |
| Ordering Information | IBOX-137C:Mini box PC's with Intel C1037U 1.8GHz, W/SSD16G, W 2G memory, 12V power supply. |
