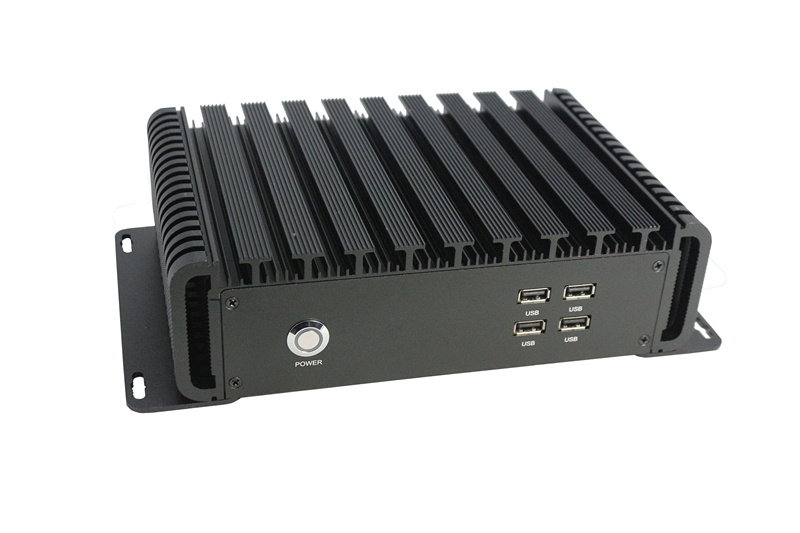

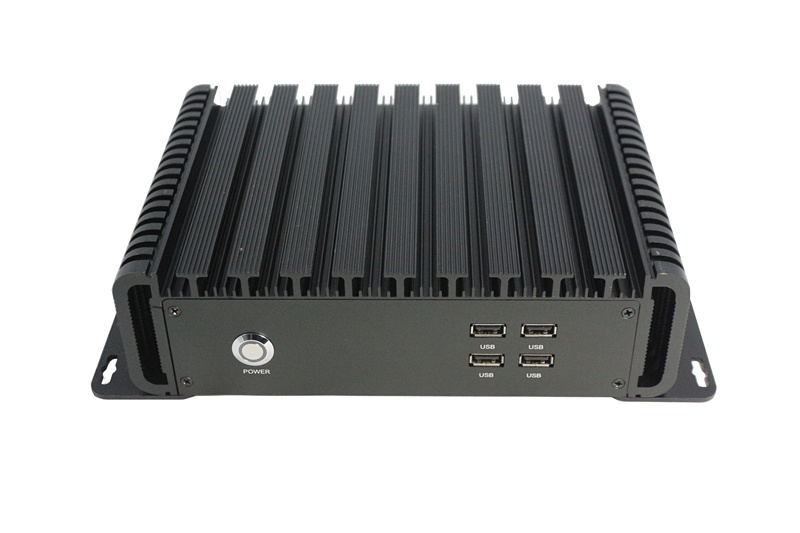

Industrial Box PC Intel I3/I5/I7 6*RS232 2*LAN Embedded Computer
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Main Feature ·Industrial grade fanless design in Al-alloy ·Intel QM77 Chipset·Support CPU Intel Dual Core i3/i5/i7 Series ·2* RJ45 10/100/1000M LAN.6*RS232(optional)·Support DC12V power supply Introduction IBOX-QM77B is Industrial grade MINI box PC's, which supports Intel CPU Dual Core i3/i5/i7 Series, Intel QM77 Chipset, which comes with 1*VGA, 6*RS232, 2*RJ45 10/100/1000M LAN, 4*USB2.0, 2*USB3.0,1*LPT with compacting Fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to Intelligent car, Environmental control, equipment, industrial line, transportation, automation,communication etc. Specification | Material | Industrial Al-alloy |
| CPU | Intel Dual Core i3 3110M 2.4GHz(I5/I7 optional) |
| Chipset | Intel QM77 |
| Memory | DDR3 2G//4G/8G(optional) |
| Storage | 2.5"SATA 500G HDD,SSD: 16G/32G64G(optional) |
| Expansion slot | MINI PCIE |

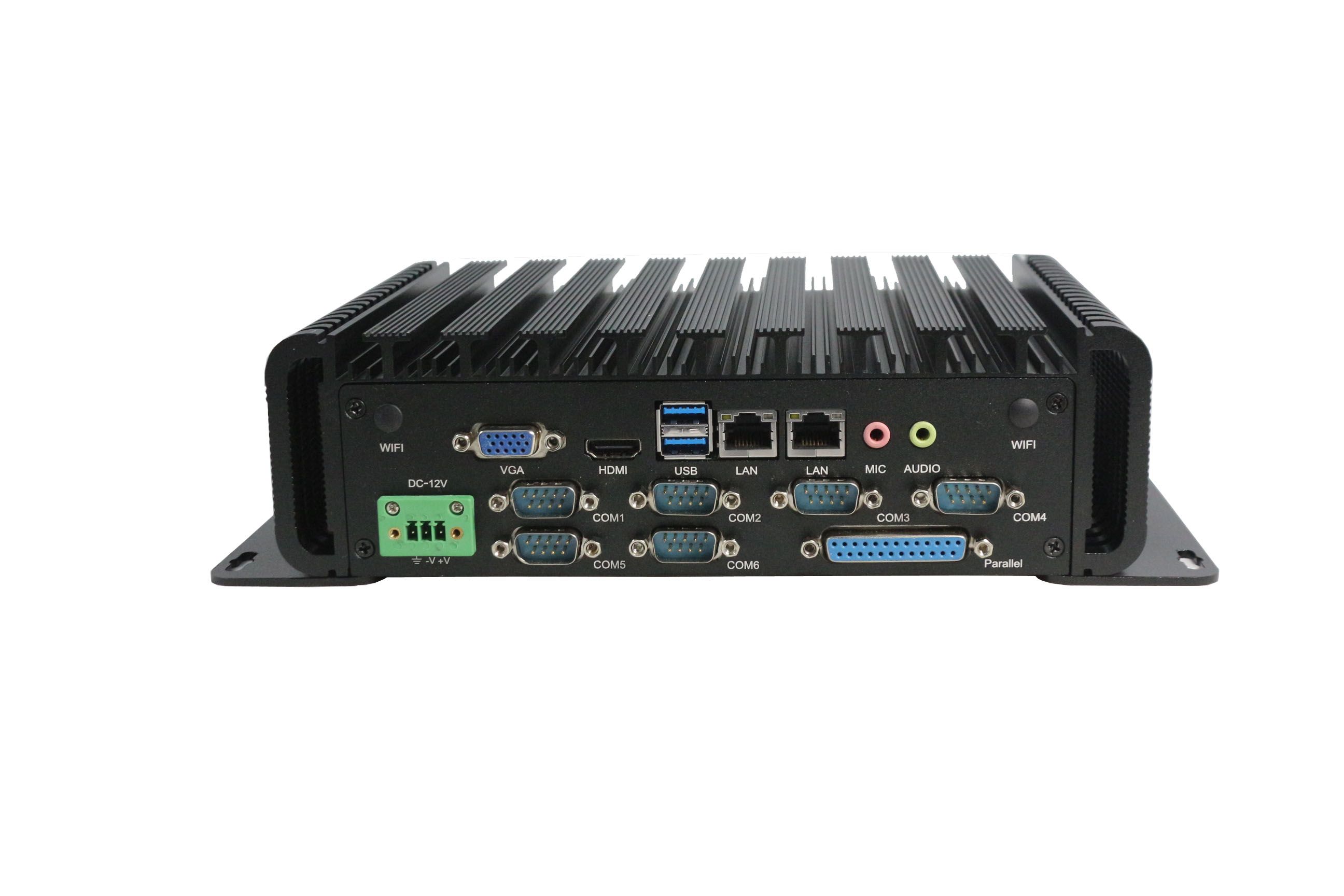

| I/O | 1 x VGA |
| 1 x HDMI |
| 6 x RS232(Optional) |
| 2 x RJ45 10/100/1000M LAN |
| 4 x USB2.0, 2 x USB3.0 |
| 1 x Audio Line Out,Mic |
| 1 x GPIO |
| 1 x LPT |
| WIFI(Optional) |
| Power supply | DC 12V Input |
| LED light | 1 x Power LED |
| Watchdog timer | Programmable overtime interrupt or recovery |
| Color | Black(optional) |
| OS | Windows 7,Windows XP, Windows XP Embedded,Linux |
| Dimension | 280 x 165 x 70mm |
| N.G | 2.5KG |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 80°C |
| Storage Humidity | 5~90%@40°C(non-condensing) |
| Vibration | 5 grms / 5 ~ 500Hz in working status(SSD)
1 grms / 5 ~ 500Hz in working status(Built-in HDD module) |
| Shock | 50 g peak acceleration(11ms duration)(SSD)
20 g peak acceleration(11ms duration)(Built-in HDD module) |
| Ordering Information | IBOX-QM77B:Mini box PC's with Intel CPU i3-3110M Dual Core 2.4GHz, W/SSD32G, W/2G memory, 12V power supply. |
| Prod Model: |
IBOX-QM77B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processor Type: |
Intel |
| Certification: |
FCC |
| Type: |
Embedded Systems |
PONTRON is a global leader in design and manufacturing innovative embedded products and solutions. With over 20 years of experience in the IPC field, PONTRON offers its deep experience in the market with solutions at all stages of embedded development including up-to-date embedded designs, manufacturing capabilities, quality platforms, comprehensive integration services, and global logistics support to provide complete end-to-end solutions.
PONTRON works closely with its customers and connect them with global resources to bring an affordable embedded solution, all while offering a local touch. The result is an effective reduction of total cost of ownership, quicker time-to-market, and a competitive advantage with sustainable computing platform.
Through an extensive portfolio, designed from over 50 ingenious engineers, PONTRON's solutions range from embedded boards, industrial computers, data storage products and OEM/ODM services. Having a state of the art research and development and complete in-house manufacturing facilities, our customers are empowered with embedded custom designs as well as streamlined production process to allow them to focus more on their core competencies.
Whether in the design phase or moving to mass production, PONTRON provides all the reliable resources to get your project off the ground running. Stringent quality control measures are placed at every step of the process to ensure consistency to the highest level of standards
We also extend our service of assembly and logistics to offer a turnkey solution for a wide-range of markets, including Industrial Automation, Digital Signage, Infotainment, Communication, Gaming, Energy, POS, Retail, Self-service, Medical, Aero, Military, Transportation, Defense, and Machine-to-Machine applications. With a 6, 5000 square meters production base in Huizhou and over 30 offices worldwide, PONTRONlooks to be your reliable global solutions provider with a local touch.
