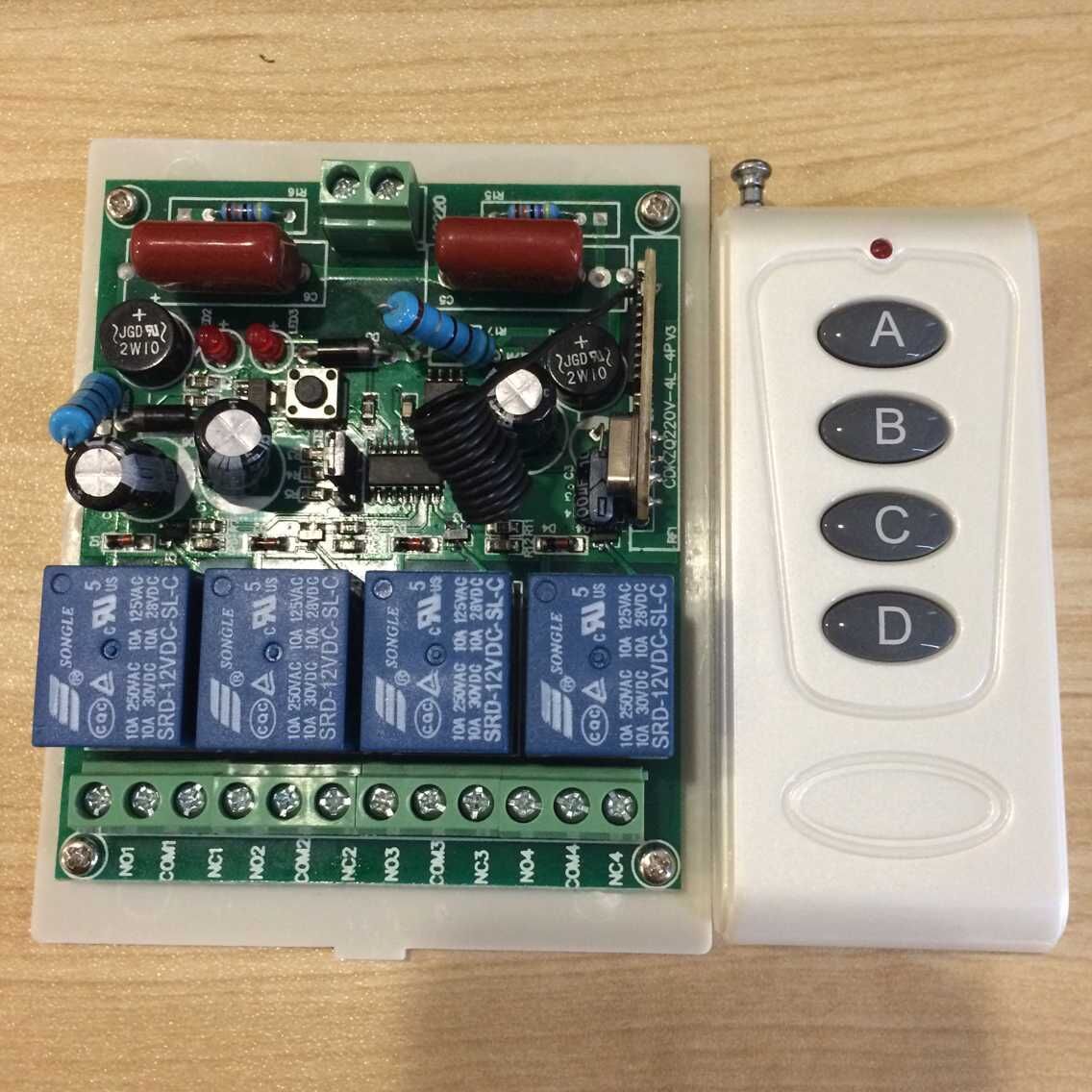

1000m 220V 4 Channel Wireless Remote Control Switch with Optional Working Type
Product Specifications
| Prod Model: |
YS-0034 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
DC12V |
| Receiving Frequency: |
315MHz |
| Maximum Load: |
7A |
| Receiving Sensitivity: |
-95db |
| Working Style: |
Point Move, Interlocking, Self Lock |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
SGS |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Battery Type: |
AAA Battery |
| Material: |
Plastic and Metal |
Product Description
Model NO | YS-0034 |
| Type | Button |
| Signal Transmission | RF Remote Control+switch |
| Receiving sensitivity | -95db |
| Frequency | 315MHZ |
| Working style | Point move, interlocking, self lock |
| Logo | Accept Customized |
| OEM/ODM Projects | Yes |
| production time | 7 days |
| Origin | Guangzhou City , Guangdong Province , China.
|
Function characteristic:1, mainly used in: remote control electric door, window, switch, gated LED lamps and lanterns, electric motor, electric circuit security and other industrial or remote control remote control in the field of remote control.
2.four way output, can be independent output, but also can not lock and interlocking output.
3, by way of the plug pin jumper conveniently at the point, interlocking, self-locking and dynamic self-locking four working modes are free to switch.
4, remote control distance: 1000 meters (open space without interference) this distance is open to the theoretical distance (1000 m distance, the actual distance is generally nominal distance 30%-50%)
The use of different environmental interference and wall will be reduced. Generally nominal distance of about 25%-60%.
5, the use of large capacity relay, can be controlled on the kW of electrical equipment and equipment.
6, the use of wireless encoding technology, no direction, the switch does not interfere with each other Remote control and switch pairing instructions: Reset: press and hold the button, the red indicator light is bright, the two second light is light and off, release the hand, said that the success of zero. All the remote control can not be remote control it.
Learning: hold down the button, the red indicator light is bright, release the hand, according to the remote control to launch a signal indicator lights flash, and then hear the relay ring, said the study of success. You can use the remote control of the remote control.Working mode switching method:Because this product is more functional type, before you use, please according to their own needs to set a good working way.
1), when the JP2 jumper cap is inserted into the 3 and 4 positions, set the output instantaneous (point); action: press the remote button, relay is attracted, loosen by remote control button, the relay is released.
2), when the JP2 jumper cap is inserted into the position 1 and 2, set the output for the steady state (lock); action: according to a remote control buttons, corresponding to the relay, then click the remote control buttons corresponding to this group of relay disconnect.
3), when the JP2 jumper cap pulled out in, set the output of interlocking; action: a remote control button is pressed, the group 1 relay, press the B button of the remote controller, group 2 relay, group 1 relay to disconnect, four groups of relay is rendered mutual lock state.
4), the JP2 of 1, 2 short, 3, 4 short answer, set the output mode for two way, two points. clearance has been supporting the remote control code:press the control panel on the learn button on the, for about two seconds after learning indicator light will brighten, don't let go of the button, in about four seconds, learning indicator light eradication. Said to have all the memory code clear, if you do not want to change the control output mode, let go of learning key. The output mode remains unchanged before the code is kept. Otherwise repeat 2 action.Company Show
