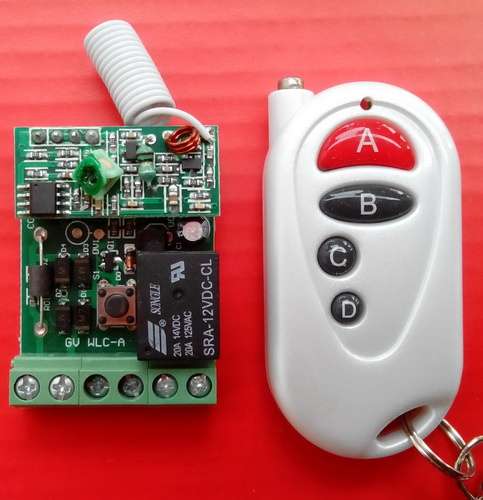

Learning Type 12V Receiver Power Wireless Remote Control Switch Module
| Price: |
US $ 4.5-5/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
Learning type 12V receiver power wireless remote control switch moduleItem NO.:YS-0032| Model NO | YS-0032 |
| Type | Button |
| Signal Transmission | RF Remote Control |
| Frequency | 315MHZ |
| Shell size | 50*34*22mm |
| Working style | Point move, interlocking, self lockL |
| Logo | Accept Customized |
| OEM/ODM Projects | Yes |
| production time | 7 days |
| Origin | Guangzhou City , Guangdong Province , China. |
Function feature:1, use: remote control of the router, remote control socket, lamps, electrical, electrical, access control and other equipment.
2, the use of microcomputer control, learning, learning the code, the remote control equipment on and off.
Three, 3 kinds of working ways: work way point move, lock, self lockproduct specifications:1, working voltage: DC12V
2, receiving frequency: 315MHZ
3, maximum output: 10A
4, static current: less than 6MA
5, not including shell size: 44*31*16mm
6, shell size: 50*34*22mm remote control method1) output mode selection and learning method: press to the remote control of any one key, learning indicator light should be continuous flashing, otherwise
This controller can not learn this remote controller. Select the output mode to study the remote control.
2) the choice of output mode: press the button not to put the study, two seconds later, the learning indicator lights, and then four seconds
The clock, the learning indicator light from the bright lights (the actual step is to reset the operation). Continue to press the button, two seconds later,
Indicates the exhibit of lanterns flashes once again; after two seconds, will flash two times; another two seconds will flash three times. In the study
When the indicator light flashes once after the release of the learning key, the output mode is the point of the way; in the light of the two release of the flash
Learning keys, the output mode is the mode of self - locking, and the three time in the indicator light to release the learning key, then the output mode
Lock mode.
3) and then add remote control learning method: press the learning key is not put, two seconds later, the lights turn bright, let go of learning
Any key button, press the remote control to learn, learning instructions exhibit of lanterns flashes three times, said the success of learning. Control
Maximum memory of 16 different encoding remote control, the 17 will cover the first memory of the remote control. Same type of remote control
The device, which can be used to control the same code as the first one, can be controlled with any number of different types.
Controller, then repeat the third step study to match.
4) to clear the code: press the key to learn the button is not put, two seconds later, learning instructions
Lights turn on, and then over four seconds, the study of the light from the bright lights, said the success of the cleared. To match the distance before the zero
The controller is no longer function.About us:
We are the professional manufacturer producing various of RF products since 2014, more than 1 years experience on design, production remote control key. We mainly sell remote duplicator(remote copier, remote Master), remote control and receiver for garage door, garage door opener and alarm system etc.There are more than 1 experience elite engineers in our R&D department to to meet your OEM &OEM request service. one-step service for products from the development, design, production, quality checking.
Yishu sincerely hopes to cooperate with business friends both at home and abroad to achieve mutual benefits. We will create a splendid future. Any need, please feel free to contact us for details...(samples are available upon request! )
| Prod Model: |
YS-0032 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
DC12V |
| Receiving Frequency: |
315MHz |
| Maximum Output: |
10A |
| Quiescent Current: |
≤ 6mA |
| Shell Size: |
50*34*22mm |
| Working Style: |
Point Move, Interlocking, Self Lock |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
SGS |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Battery Type: |
Button Battery |
| Material: |
Plastic and Metal |
