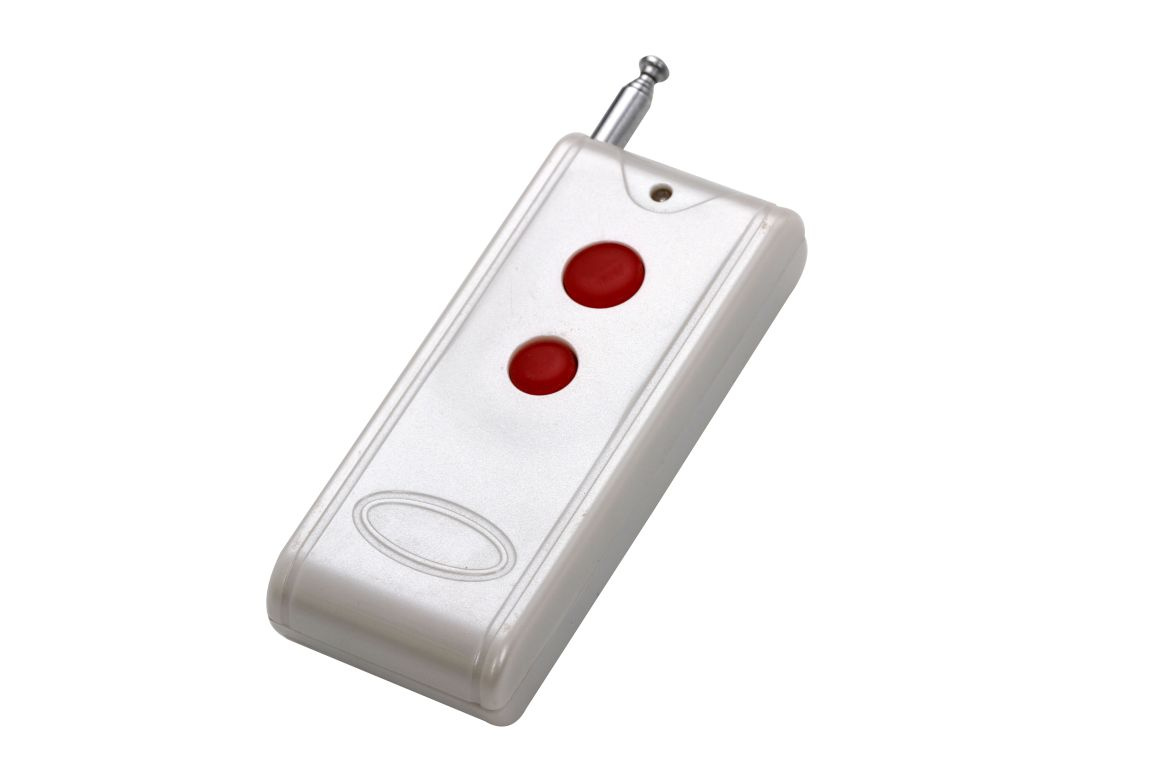

Rolling Door Wireless Remote Control Transmitter with 2 Buttons (YS-TX1000-2)
| Price: |
US $ 2-2.5/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
This 1 channel wireless Self-Lock (Jog) remote control operates in the 315/433MHz frequency. Just press slightly the button on the remote, you can control universal DC/AC electrical devices. It can be mainly used to control many kinds of lights with voltage of DC0~250V; Or motor open/close, such as motor of pump.Feature:Wireless control, easy to install
Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with DC0~250V
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; The wireless RF signal can pass through walls, floors and doors.
This switch can learn different coding remote controls(such as 2262, 1527, 2240 ect. )
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it won't affect each other.
Transmitting Frequency: 315MHz / 433MHz
The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.Receiver:Model No.: YS-TX1000-2
Channel: 1 CH
Control Mode: Jog(Press and hold -> On; Release -> Off)
Coding Type: Learning code
Power Supply: DC12V± 2V, furthermore, customized 3V, 9V, 24V are acceptable
Maximum Working Current: 10A
Receiving sensitivity: -105dBAbout Working Way:Output Working way for learning code switch-Jog, Self-Lock, interlock, changed by soldering or jump cap.
Jog--Press and hold one button is working. Release your finger on the same button is stop/ Null(Do not connect any JPs).
Self-lock--Press one button for one time is working. Press the same button again is stop/Connect the JP1 and JP2 with the jump cap.
Interlock--Press one button is working, press another button is stop/Connect JP2 and JP3 with the jump cap.About Learning and clearing Method:Red indicator --Power indicator, yellow indicator_Learning indicator, Green indicator_Working indicator.
After getting to the power, the red indicator will be on, then press and hold the learning key for about 2s, the yellow indicator will be on, here put in learning state, release the learning key, press any button of the remote control, the yellow indicator would be off after flashing. Next, to check whether it learning successfully, please press the button of remote control, the green indicator would be on state, and the relay tapped, it is ok.
When the learning indicator in On state, still press the button of remote control, after it getting to Off, it means clearing is OK.Application:Garage door control
Access control system
Home/Mall Automation systems such door/window/curtain control, lights control ect.
Kinds of motor control systemPay attention:The default setting of output way is Interlock; If you need other output way can leave a message to change it for you before the delivery.
Here is the 1 Channel switch and 1-button remote control. You can choose the working way as you need, we suggest the best to choose the interlock, then all the buttons can be used.
The working frequency optional from 315/433MHz, other frequency point from 260 to 450MHz can be customized.
The theoretical distance is 100m, which shall be operated in an open ground; No barriers and no any interference. However, in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance cannot reach 100m. If you need longer range, please choose other series of remote control, such as 1000m/3000ft; Or you can add the External Extend Antenna or Transponder on the receiver to extend the range. Our company
Our company is mainly engaged in all kinds of copy machine, copy type remote control, learning to code remote control automatically, 1527 learning code remote control, 2262 coding, remote control gate, electric door controller, and the 12 V from 1 to 12 road remote control switch; Configure various professional ID card. Copy machine is fully compatible with remote control: Toyota, Honda, GM, BMW, mercedes-Benz and seventy-two brands such as remote control system. Long fixed code, code, flash code, rolling code, stealth code, deformation yards, etc. Copying machine can quickly copy all kinds of remote control, including premium car remote control, is currently the most ideal remote replication equipment. Our team
In yishu, you are not only buying a good quality product with competitive prices, but a complete service offered by our whole yishu team.
Yishu sincerely hopes to cooperate with business friends both at home and abroad to achieve mutual benefits. We will create a splendid future. Any need, please feel free to contact us for details...(samples are available upon request! )
| Prod Model: |
YS-TX1000-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
30m |
| Size: |
85*37*17(L*W*H) |
| Operating Current: |
<30mA |
| Operating Frequency: |
303MHz;310MHz;315MHz;433MHz( Optional) |
| Coding Chip: |
PT2262;Fp527;Hcs301 and So on |
| Modulation Type: |
Ask,Fsk |
| Type: |
Button |
| Certification: |
SGS |
| Signal Transmission: |
RF Remote Control |
| Application: |
Access Control System |
| Voltage: |
12V |
| Universal: |
Universal |
| Transmission Distance: |
50/100/200/500/200/500/5000 Meters |
| Battery Type: |
23A |
