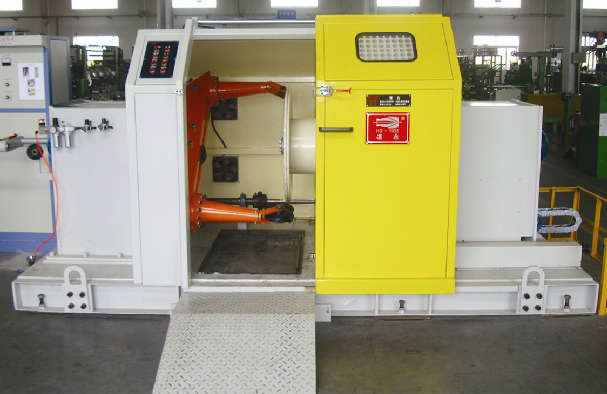

1000mm Single Winding Machine Twisting Machine

Product Specifications

Prod Model:	1000mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application Wire Diameter:	φ 0.6mm-5.0mm
Rotate Speed:	500rpm
Certification:	ISO

Product Description

1000mm cantilever single twisting(cabling) machine
Specialized in communication cable, ship calbe, date cable and control cable.

Jiangsu Handing Machinery Co., Ltd. Is a private enterprise which was established in May 2002 (abbreviationHD), meanwhile, it was founded with the spreading of reform and opening up of China. It was an unknown enterprise locating in Nanxiashu Town Changzhou City Jiangsu Province in the earlier time and owned dozens of employees, however, it has become famous with the deepening insight of the enterprise and by absorbing excellent talents in different fields. Meanwhile, it is an enterprise that develops to be competent for independent research and innovation, offers new type of machines featuring with high productivity and efficiency and durability for the international wire, cable, special cable and data cable manufacturing industry and gradually keep touch with the globally well-known enterprises in the industry of manufacturing wire, cable, special cable and data cable.

Model	HD-φ 1000mm
Application	PVC/PE covered core wire or copper twisting and center belting or side belting
Feed wire shaft size	φ 400mm-φ 500mm-φ 630mm
Winding shaft size	Standard punch iron bobbin: Outer diameterφ 1000mm× Outer width750mm× inner width630mm× inner holeφ 80mm
Application wire diameter	φ 0.6mm-5.0mm
Max twisting outer diameter	φ 25mm
Lay length	30-300mm Stepless adjustable
Rotate speed	500rpm
Upper and lower wire bobbin	Hydraulic lifting
Method of traverse	Double screw rod reciprocating traverse
Take-up tension	Pneumatic
Brake	Pneumatic brake
Twist direction	Left and right can freely selected
Taking device	Center lapping or side packing
	Left and right can freely selected
	Suitable for the cotton paper, wheat belt, aluminium tap
	Bobbin diameter: φ 350mm, hole diameter: φ 50mm, Width: 8~30mm
Machine size
Weight	About 4200kg
