100g 200g Optical Add-Drop Oadm Multiplexer, Oadm Device (1x2)

Name: 100g 200g Optical Add-Drop Oadm Multiplexer, Oadm Device (1x2)
Brand: china-manufacturer-directory.com
SKU: 696319575
Availability: InStock
Rating: 4.5 (100 reviews)

Supplier:	Flyin Optronics Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Add-Drop OAMD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	ISO9001: 2008
Package:	ABS Box
Support Network:	Communication Cable
Usage:	Telecommunication
Type:	Passive Components

Product Description

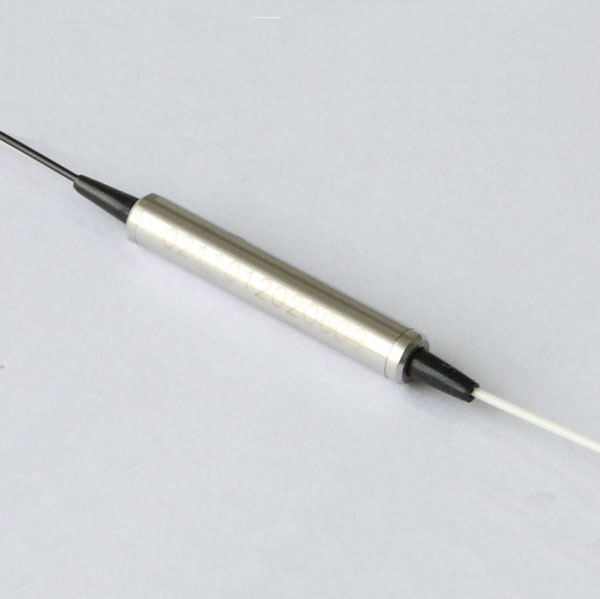

1x2 100g, 200g Optical Add-Drop OADM Multiplexer, OADM device

Features
1. Low insertion loss
2. Wide pass band
3. High channel isolation
4. High stability and reliability
5. Epoxy free on optical path

Applications
1. Channel Add/Drop
2. DWDM Network
3. Wavelength Routing
4. Fiber Optical Amplifier
5. CATV fiberoptic System

Parameter		MUX/DEMUX
Operatin gWavelength(nm)		IT UGrid
Cente rWavelengthAccuracy(nm)		± 0.05	± 0.1
Channe lSpacing(GHz)		100	200
Channe lPassband(@-0.5dBbandwidth)(nm)		> 0.22	> 0.5
Pas sChannelInsertionLoss(dB)		≤ 1.0	≤ 0.9
Reflectio nChannellnsertionLoss(dB)		≤ 0.6	≤ 0.6
Channe lRipple(dB)		< 0.3
Isolatio n(dB)	Adjacent	> 30
	Non-adjacent	> 40
Expres sChannelIsolation(dB)		> 13
lnsertio nLossTemperatureSensitivity(dB/ )		< 0.005
Wavelengt hTemperatureShifting(nm/ )		< 0.002
Polarizatio nDependentLoss(dB)		< 0.1
Polarizatio nModeDispersion(ps)		< 0.1
Directivit y(dB)		> 50
Retur nLoss(dB)		> 45
Maximu mPowerHandling(mW)		500
Operatin gTemperature( )		-1 0~+75
Storag eTemperature( )		-4 0~+85
Packag eDimension(mm)		5.5xL34(L38for900umloosetube)

Ordering information

DWDM
	ITU	Pas sChannel	Fibe rType	Fibe rLength	Connector
	1=100G 2=200G	01=Ch01 02=Ch02 … … 60=Ch60	1=BareFiber 2=900umLoosetube	1=1m 2=2m	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC

Flyin Optronics Co., Ltd, established in Nov 2005, is a leading worldwide manufacturer and supplier of fiber optic components.Our products include CWDM/DWDM, optical switch, circulator, isolator, PLC splitter & coupler, optical transceiver and media converter etc.
We have passed the ISO9001 and ISO14001 certification.Also our products passed the international safety certification and RoHS.Owing to our excellent engineering services, custom design, technical support, product review, rapid sample and mass production fast delivering for our customers.Our products have been exported to India, Japan, USA and other countries or area.
To supply high value solutions for customer is our aim.Flyin always determined to bring reliable products and service to every client.And we cherish the opportunities every client gives us.
