100G DWDM Modules

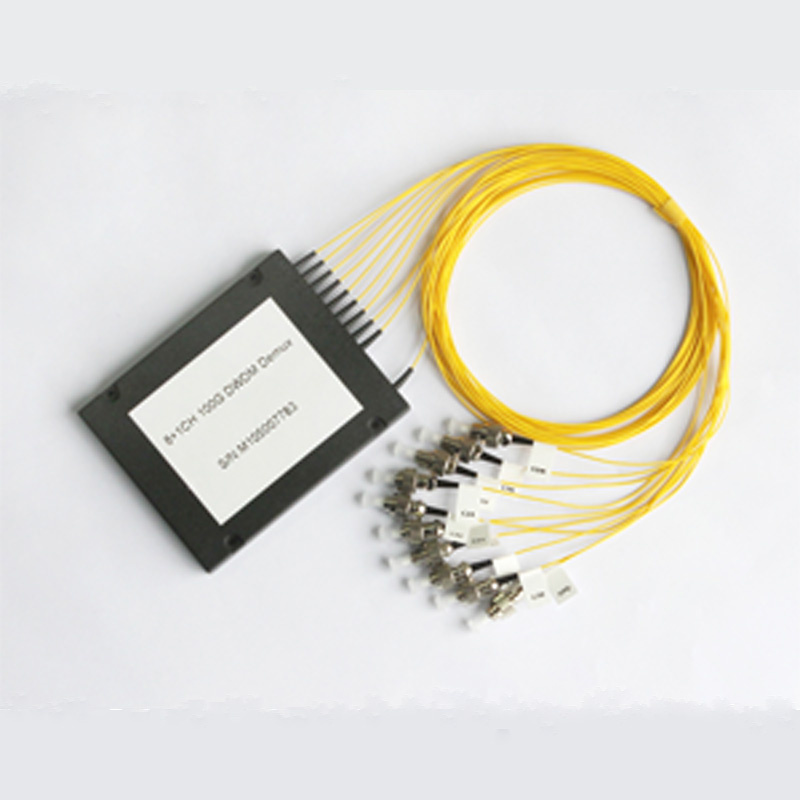

Name: 100G DWDM Modules
Brand: China-Manufacturer-Directory.com
SKU: 695599225
Availability: InStock
Rating: 4.3 (75 reviews)

Supplier:	Flyin Optronics Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	FY-DWDM-100G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	DWDM Network, CATV, Fiberoptic Amplifier, Gpon, Et
Support Network:	Fy-DWDM-100g
Type:	Passive Optical Components

Product Description

Flyin Optronics sell DWDM Modules with Competitive Pricing, Short Leadtime, and much pretty performance. It selled very well in overseas market, and have good reputations. It's already widely used in DWDM Netowrk, GPON, CATV, etc.

2CH, 4-CH, 8-CH, 16-CH, 18-CH DWDM Modules in ABS Box.

Features

1. Low Insertion Loss
2. Wide pass band
3. High Channel Isolation
4. High Stability and reliability
5. Epoxy-free on Optical Path

Applications

1. Channel Add/Drop
2. DWDM Network
3. Wavlength Routing
4. Fiber Optical Amplifier
5. CATV fiberoptic System

Parameter		4 Channel			8 Channel		16 Channel
		Mux	Demux		Mux	Demux	Mux		Demux
Channel Wavelength (nm)		ITU 100GHz Grid
Center wavelength Accuracy (nm)		± 0.11
Channel Spacing (nm)		100
Channel Passband (@-0.5dB bandwidth (nm)		> 0.25
Insertion Loss (dB)		≤ 2.0			≤ 3.7		≤ 5.5
Channel Uniformity (dB)		≤ 0.6			≤ 1.0		≤ 1.5
Channel Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	> 30		N/A	> 30	N/A		> 30
	Non-adjacent	N/A	> 45		N/A	> 45	N/A		> 45
Inertion Loss Temperature Sensitivity (dB/C)		< 0.005
Wavelength Temperature Shifting (nm/C)		< 0.002
Polarization Dependent Loss (dB)		< 0.1		< 0.1				< 0.15
Polarization Mode Dispersion		< 0.1
Directivity (dB)		> 55
Return Loss (dB)		> 45
Maximum Power Handling (mW)		300
Opterating Temperature (C)		-5~+65
Storage Temperature (C)		-40~85
Package dimension (mm)		L100 x W80 x H10				L142 x W102 x H14.5

Specifications may change without notice.

Above specification are for device without connector.

Ordering Information

DWDM	X	XX	X	XX	X	X	XX
	Channel Spacing	Number of Channels	Configuration	1st Channel	Fiber Type	Fiber Length	In/Out Connector
	1=100GHz	04=4 Channel 08=8 Channel 16=16 Channel	M=Mux D=Demux	21=Ch21 … … 34=Ch34 … … 50=Ch50 … …	1=Bare fiber 2=900um loose tube 3=2mm Cable 4=3mm Cable	1=1m 2=2m S=Specify	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify
