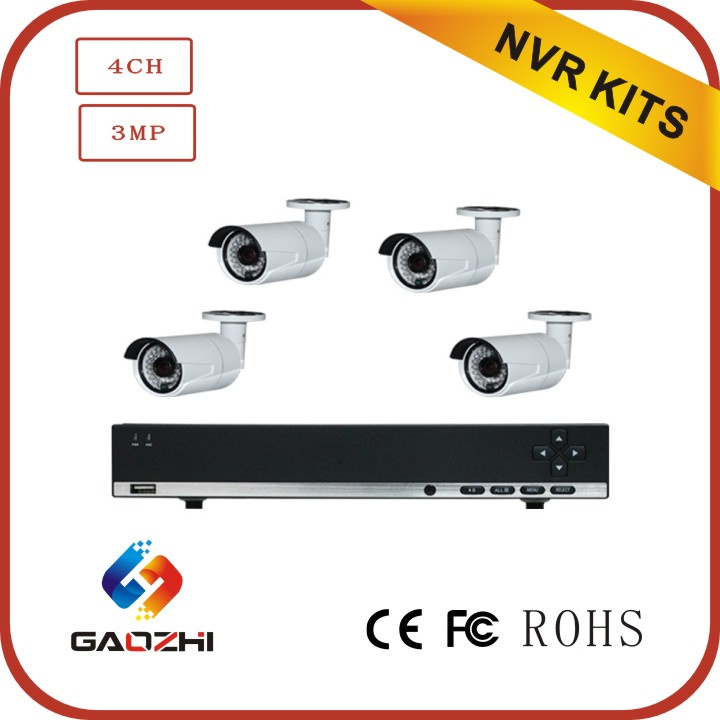

1080p 2MP poe nvr kit channel with ip camera and network video recorder
Kits included:
4 pcs of 2MP bullet poe camera;
1pc of 4channel poe nvr;
4pcs of 18.9 meter network cable;
1pc of 500G HDD.
NVR
* H.264 compression format;
* 4CH 1080p network camera input;
* 4CH network playback ;
* Dual video stream;
* Support VGA( Max resolution 1080p), HDMI (Max resolution 1080p) sync output;
*2 USB2.0 interface, 1 SATA 2.0 interface ( up to 4000G);
* Support infrared remote control;
* 1 RS-485 interface;
* Support smart phone real- time remote monitering;
* Provide IE plug in, CMS, QR code scan remote control management software.
IP Camera
*Sensor:1/3" OV OV2710
*GM8136S Chipset
*Resolution:1080P@22fps(1920*1080)
*Lens:M12 Mount
[email protected](6mm optional)
*Color:0.1Lux @(F1.2,AGC ON),0 LUX with IR
*B/W:0.01 Lux @ (F1.2,AGC ON),0 LUX with IR
*Bulit in Mic,
*Distance:30meters
*Waterproof Rate:IP66;
*Power Supply:DC12V±10% & PoE
NVR
| Specification: |
| System | GUI | 16-bit True Color |
| Operating System | Embedded Linux OS |
| Password security | Multi-level users management, 1 Admin + 19 Users |
| A/V Input | Video Input | IP Camera x4 POE |
| Audio Input | NO |
| A/V Output | Decoding resolution | 1080P/720P |
| VGA output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) |
| HDMI output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) |
| Audio output | NO |
| Playback resolution | 1080P/720P |
| Synchronous playback | 4CH(PAL:100FPS playback NTSC:80FPS playback) |
| HDD | SATA Devices | 1 x SATA HDD |
| Maximum capacity | 4TB |
| External HDD | NO |
| External Interface | USB Connector | 2 x USB2.0 |
| Serial Interface | NO |
| 2 way audio (voice talk) | NO |
| Alarm input/output | Optional |
| Network Interface | RJ 45,10M/100 M Ethernet, 4 Network ports for IP camera, 1 Giga network port for LAN/WAN |
| Network | Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,Onvif,P2P |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad |
| System Upgrade | Supports USB update |
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser |
| General | Power Supply | Input 100~240V, 48V 2A |
| Consumption | <10W without HDD&PoE |
| Working temperature | -10ºC~+55ºC(14°F~131°F) |
| Working humidity | 10%~90% |
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) |
| Weight ( w/o HDD/DVD±RW ) | 2.0 kg |
IP CAMERA
| Specification |
| Camera | Image Sensor | 1/3" 1080P CMOS |
| Effective Pixels | 1920 (H)x1080(V) |
| Min. Illumination | Color: 0. 05LUX/F1.8, B/W: 0Lux (IR on) |
| S/N Ratio | >50dB |
| Backlight Compensation | BLC |
| WDR | Digital WDR |
| Noise Reduction | 3D DNR |
| Gain Control | Auto/Manual |
| Day/Night | Auto(ICR) / Color / B/W |
| White Balance | Auto |
| Electronic Shutter Speed | Auto/Manual 1/50~1/10000 |
| IR distance | IR distance 20 Meters |
| Lens | Focal Length | 6mm Lens |
| Max Aperture | F1.8 |
| Focus control | Fixed |
| Angle of View | 53°@6mm |
| Video | Video Compression | H.264 High Profile / JPEG Snapshot |
| Resolution | Main Stream:1080P(1920*1080)
Sub Stream: 352*288 |
| Video Bitrates | 1024Kbps ~ 6144Kbps |
| Video Frame Rate | 30fps@1080P |
| Audio | Compression | ADPCM |
| Interface | embedded mic in |
| Network | Ethernet | RJ-45 (10/100Base-T) |
| Wi-Fi | Option |
| Network Protocol | IPv4, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Cloud |
| Network Preview | Web browser view, including IE,Chrome,Firefox |
| Smart Phone | Supports iPhone,iPad, Android phone,pad,Windows Mobile phone. |
| Compatibility | Onvif V2.1 |
| Max. User Access | 12 Users |
| General | Power Supply | DC12V & PoE |
| Power Consumption | <8W |
| Working Environment | -10ºC~+55ºC(14°F~131°F),10%~90% |
| Ingress Protection | IP66 |
| Dimensions | Φ65 x 188mm |
| Weight | 440g |
FAQ
1. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m-20m
C. 6mm lens : 30m-50 m
(We have 2.8-12 mm auto-Focus camera for long distance & special condition. )
