Product Specifications
| Prod Model: |
GZ-3304-EP KITS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2 Years |
| Operating System: |
Linux |
| Compressed Format: |
H.264 |
| Video Compression: |
H.264 |
| Remote Control: |
with Remote Control |
| Type: |
Monitoring System |
| Application: |
All-Round Monitoring |
| Feature: |
Waterproof / Weatherproof |
| Video Capture System: |
Video Camera |
| Video Transmission System: |
Network Cable Transmission |
| Software Function: |
Monitoring |
| Software Usage: |
Mobile Phone Monitoring Software |
| Client Software: |
Client Software |
| Model: |
CCTV |
| Sensor: |
CMOS |
| Kind: |
Manual Focus Lens |
| Technology: |
Infrared |
| Horizontal Resolution: |
3MP |
Product Description
Cctv System 4CH 3MP Kits -NVR and IP Camera IP Camera*Sensor:1/3" AptinaAR0330GM8138S;
*Resolution:3MP;
*Frame Rate:25fps(2048*1536);
*Lens:M12 mount,3.6mm,2.0mmand 6.0mm lens available;
*Min Lux:Color :0.1Lux@(F1.2,AGC ON),0 LUX with IR,
*B/W black and white :0.01 Lux @(F1.2,AGC ON),0 LUX with IR;
*Built-in MIC;
*Distance:30m;
*Waterproof Rate:IP66 ;
*Power Supply:DC12V±10% &POE
NVR* 8CH 3MP/1080P/720P IP camerainput;
* 4CH playback;
* embeded 8 PoE Network ports;
* Supports dual stream;
* Supports VGA (Maximum HD1080p) , HDMI (Maximum HD 1080p)output;
* 2 USB2.0 ports, 1 SATA 3.0 HDDport(up to 4000G);
* Supports smart phone real timeremotely monitoring, such asiPhone,Android;
* Provide IEActivex,CMS,StreamView APP
* Support P2P ;
FAQ
1. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .

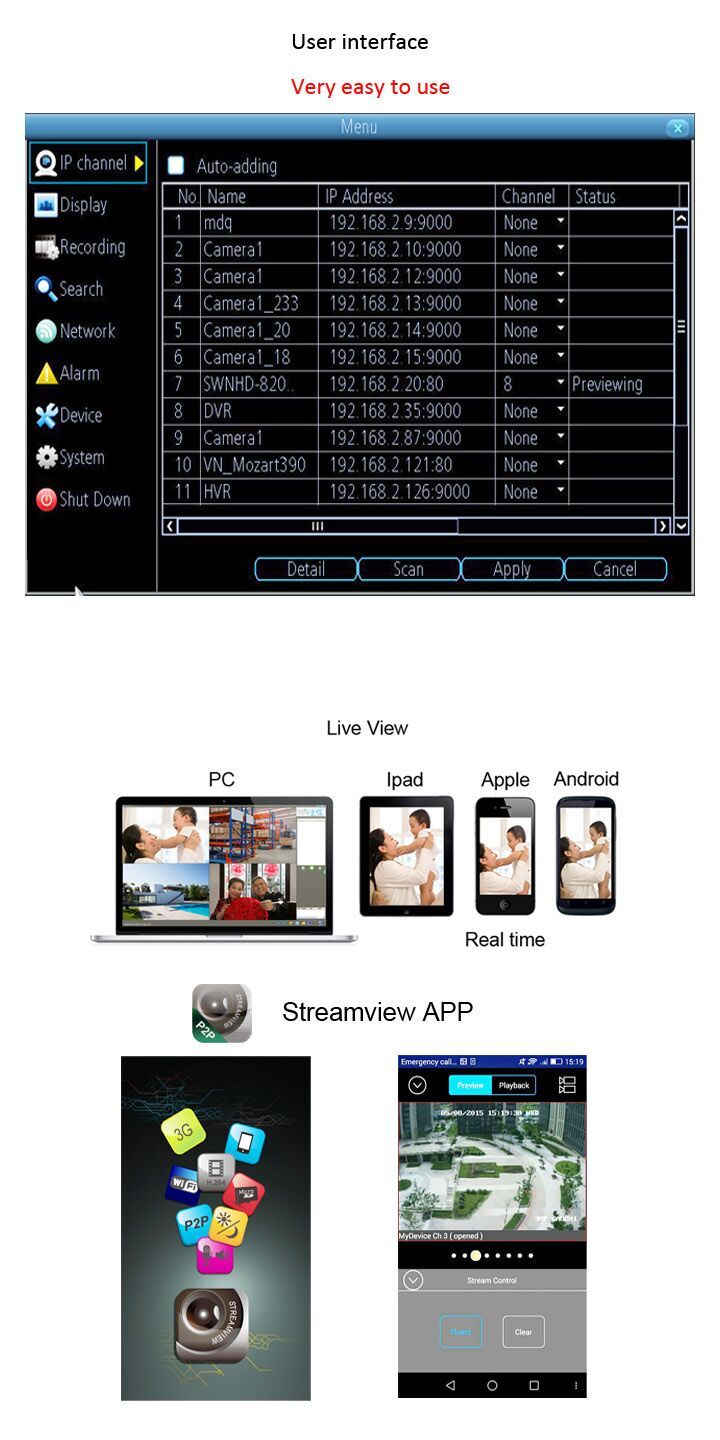

4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m-20m
C. 6mm lens : 30m-50 m
(We have 2.8-12 mm auto-Focus camera for long distance & special condition. )
