(1092mm) Small Scale Writing Paper Making Machinery with 5t/D
Product Specifications
| Prod Model: |
1092mm |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
Cultural Paper |
| Sheet Former Type: |
Fourdrinier Wire |
| Paper Thickness: |
Normal Specification Paper |
| Certification: |
ISO |
| Condition: |
New |
Product Description
1092mm 5T/D fourdrinier cultural paper making machine Technical parameter| Raw material | wood pulp |
| Output paper | copy paper,printing paper |
| Output paper weight | 60-120g/m2 |
| Capacity | 5T/D |
| Net paper width | 1200mm |
| Wire width | 1450mm |
| Working speed | 30-50 m/min |
| Designing working speed | 80 m/min |
| Rail gauge | 1800mm |
| Drive way | Alternating current frequency conversion adjustable speed, section drive |

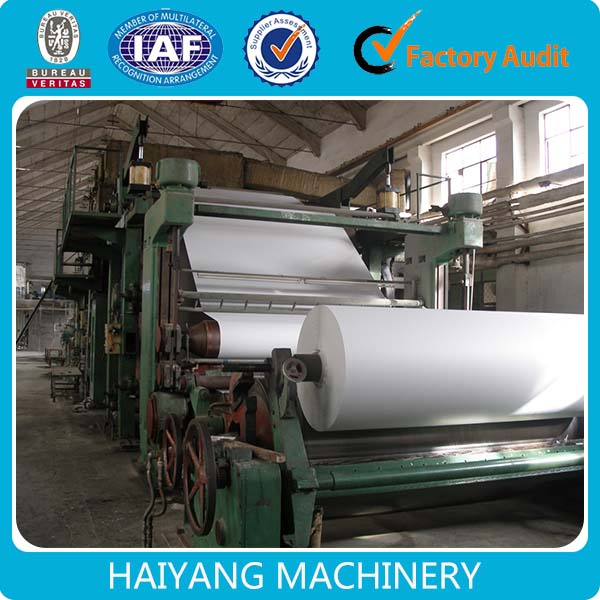

2. The main structureFourdrinier section:8.5m fourdrinier net 1 set.fourdrinier table wrapped stainless steel,with 600mmvacuum couch 1set. Press part:400mm×1450mm×1800mm natural marble roll 1 pcs,350mm×1450mm×1800mm rubber roll 1 pcs,rubber shore hardness 92ºC±2, pneumatic pressure device. Dryer section:1500mm×1450mm ×1800mm alloy dryer cylinder 2 pcs, the first cylinder with 350mm×1450mm×1800mm touch roll 1 pcs , rubber shore hardness 92ºC±2, pneumatic pressure device. Winding part: winding cooling drum 600mm×1450mm×1800mm 1 pcsPicture of paper machine:
| NO. | Item | qty(set) |
| 1 | paper making Machine | 1 |
| 2 | double layer dryer can Exhausted hood | 1 |
| 3 | axial-flow ventilator | 1 |
| 4 | Roots vacuum pump | 1 |
| 5 | Suction box | 2 |
| 6 | 1092mm winding machine | 1 |
| 7 | 1092mm calendar(3 rolls) | 1 |
| 8 | 1092mmrewind machine | 1 |
| 9 | 5m3 High consistency hydrapulper | 1 |
| 10 | 1.8m2 High frequency vibration screen | 1 |
| 11 | 380mm double disc Refiner | 1 |
| 12 | sand remover(6 set) | 1group |
| 12 | 35m3 bleacher | 1 |
| 13 | 700mm Thruster | 4 |
| 14 | CX0.9 centrifugal screen | 1 |
| 15 | 4 inch pulp pump | 3 |
| 16 | 6 inch pulp pump | 3 |
| 17 | air pump cabinet | 1 |
| 18 | inverter control cabinet | 1 |
| 19 | work table | 1 |
| 20 | 2ton boiler(burn coal) | 1 |
