Shenzhen Yeyang Telecom Electronics Technology Co., Ltd. >> 10g Xenpak Transceiver (EXK-55192-ERC)

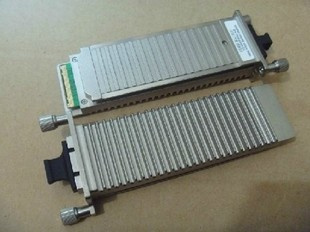

10g Xenpak Transceiver (EXK-55192-ERC)

Name: 10g Xenpak Transceiver (EXK-55192-ERC)
Brand: china-manufacturer-directory.com
SKU: 710459145
Availability: InStock
Rating: 4.7 (116 reviews)

Supplier:	Shenzhen Yeyang Telecom Electronics Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	EXK-55192-ERC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Transceiver Sm Mode:	10GB/S 1550nm 40km
Support Network:	Ethernet
Usage:	Server
Information Content:	Data
Type:	Fiber Optic

Product Description

Typical transmission distance: 300 meters(MMF)
850nm VCESLlaser
1 class laser
Low power comsuption: 2.0W
Duplex SC connector, hot-pluggable
70Pin XAUI electrical interface
Comply with RoHS-6 standard
Comply with XENPAK MSA Rev. 2.0b standard
Comply with IEEE 802.3ae, 10GBASE-SR standard
Operating Temp. Range 0° C to 70° C

Product type	Module type	Rate	wavelength	laser	Detector	Trans. Power	Sensitivity	Trans. Distance	Ambient Temp.	Digital Diagnosis
EXE85-192-SRC	XENPAK	10.3Gb/s	850 nm	VCSEL	PIN	-5~ -1dBm	≤-11dBm	300M	0~70oC	conform
EXE31-192-LRC	XENPAK	10.3Gb/s	1310 nm	FP	PIN	0.5~ 6.5dBm	≤-11dBm	10KM	0~70oC	conform
EXE31-192-LRMC	XENPAK	10.3Gb/s	1310 nm	DFB	PIN	-3~ +1dBm	≤-12dBm	220M	0~70oC	conform
EXE55-192-ERC	XENPAK	10.3Gb/s	1550 nm	EML	PIN	-1 ~ +4dBm	≤-16dBm	40KM	0~70oC	conform
EXE55-192-ZRC	XENPAK	10.3Gb/s	1550 nm	EML	APD	0 ~ +5dBm	≤-23dBm	80KM	0~70oC	conform

Shenzhen Yeyang Telecom Electronics Technology Co., Ltd invested by well-known enterprise Beijing Beisi Fiber Equipment Co, Ltd. Yeyang mainly engaged in R & D, production and sales of fiber optic modules, SFP transceivers, Video Digital Optical converter, media converter, fiber cable, fiber optical patch cord, fiber adapter, fiber pigtail etc.
We used the most advanced production equipment was imported from Switzerland and United States. We own 10 production lines, more than 60 sets testing equipments including Oscilloscopes, Bit Error Rate tester, desktop optical power meter and tester, high and low temperature aging test box. With the performance testing center, we provide users with various types of high quality active and passive optical device Our Products are widely used in telecommunications, mobile, China Unicom, China Netcom, the radio and TV, high - speed railways, highways, border crossings, banking, securities, and school areas. We are confident that we can supply the high quality products according the customers requirements.
