Shenzhen Autostrong Instrument Co., Ltd. >> 10kv AC High Voltage Insulation Tester

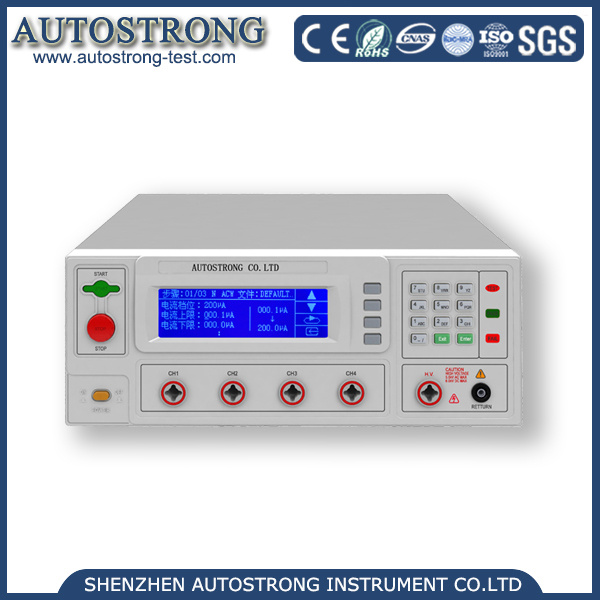

10kv AC High Voltage Insulation Tester

Name: 10kv AC High Voltage Insulation Tester
Brand: china-manufacturer-directory.com
SKU: 767962445
Availability: InStock
Rating: 4.4 (97 reviews)

Supplier:	Shenzhen Autostrong Instrument Co., Ltd.
Price:	US $ 1200-3600/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	AUTO-2672
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Autostrong
Usge:	Test The Insulation of Material
Delivery:	5~15 Working Days
Warranty:	12 Months
Certificate:	ISO CE RoHS
OEM/ODM:	Acceptable
Name:	Insulation Tester

Product Description

10KV DC High Voltage insulation tester

1. Hipot tester is designed to perform tests specified in many standards to check insulation and resistance of hi-pot. It meets the requirements of many international standards such as BIS, UL, CSA, VDE, BSI, DIN, CCC, IEC, etc.

2. Hipot tester Features:

* All of the test subjects will done automatically.
* If the sample is incompetent, there is a alarm by buzzer which is different from a eligible alarm voice.
* After insulation test it will be switched to high-volt test model automatically.

3. Advantages:

1). Professional technology support and agent brand equipment;

2). Reasonable price and high quality;

3). Package as buyer's special request, delivery in time.

4. Products include: Glow wire tester, Needle flame tester, horizontal and vertical burning tester, tracking tester, textile burning tester, Tensile Testing Machine, automotive interior combustion tester, melt dripping tester, building materials flammability tester, Hipot tester, Insulation Tester, universal testing machine and other testing instruments.

AUTOSTRONG strategic cooperation with Germany WAZAU, Germany PTL company, Germany FISCHER, Japanese minebea, and on going technical exchange.

Please feel free to contact us if you are interested in our products. We'll be very happy to give your the best quotation on your detail requirements.

Technical parameter
Output volt	AC 0~10KV(adjustable)
Leakage current	0.5, 1, 3, 5, 10mA
Insulation volt	DC 500V
Insulation resistance	0~200mΩ
Rated power	500W
Test period	less than 60s
Dimensions	360mm W, 270mm D, 120mm H
Power source	AC 220V +-10%, 50H

1) - 10+ years testing equipment manufacturer;

2) - ISO9001, SGS, TUV, CE, RoHS certificated manufacturer;

3) - One Stop testing solution provider;

4) - Provide ISO17025, CE, CNAS, ILAC calibration certificates;

5) - Large quantity tester in stock with very short lead time;

AUTOSTRONG is a professional manufacturer of Industrial test equipments for products safety application with headquarter in Kowloon Hong Kong and branch factory in SHEN ZHEN city.SHEN ZHEN Branch factory is over 2600 area, it besides SHEN ZHEN airport with very convenient transportation.

AUTOSTRONG is a reputed manufacturer of Laboratory safety test equipments and has engaged in Research & Development and Manufacture test equipments for many years.More, it is one of the listed suppliers with IECEE (International Electro technical Commission) and have gained ISO9001:2008 Certification and SGS audited supplier certificate.

AUTOSTRONG has undertaken projects of national 863 program and local governmental key science &technology programs for many times.We own a Professional and International Team with more than 60 engineers form Germany, Hong Kong.All our products are strictly designed and manufactured in accordance with IEC, CE, EN, UL, VDE, ASTM, ISO and other international standards.We offer normally ex stock and also provide customized service.

We focus on provide the highest grade products and services to our clients.With almost ten years development, We are being the fastest growing manufacturer supplier of test equipments for many industrial and manufacturing scenarios and AUTOSTRONG is the safety testing equipments leader manufacturer in China.
