10kv Sc10 Series Resin Insulated Dry Type Power Transformer

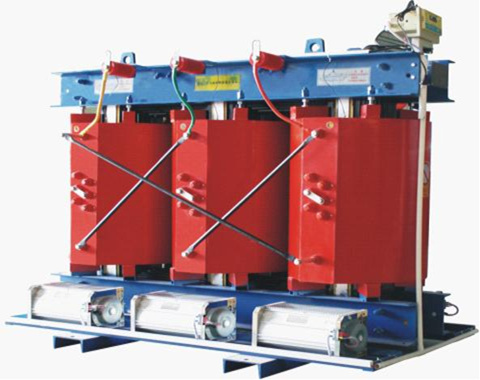

Name: 10kv Sc10 Series Resin Insulated Dry Type Power Transformer
Brand: china-manufacturer-directory.com
SKU: 742936235
Availability: InStock
Rating: 4.8 (106 reviews)

Supplier:	Guangdong Yingben Electric Company Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	SCBZ10-30-2500KVA / 6-11KV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Brand:	Yingben

Product Description

SC series resin insulation dry-type power transformer Model Number:SC(B)(Z)9,10,11 Usage: Power Phase:Three,3 Coil Structure: Toroidal Coil Number: Autotransformer winding material:copper Packaging & Delivery Packaging Detail:standard exporting wooden case or bare Delivery Detail: 2 weeks Specifications Certificate of recognition:ISO9001 CCC Reliable structure Excellent material Good technology and economic performance The power transformer is low loss,low noise ,excellent fireproof and dampproof . No maintenance . Workshop and office's photo: Normal specifications as below :

rated capacity ( KVA )	Rated voltage( KV)		Join groups label	no-load loss (W)	load loss (W)	no-load current (%)	impedance voltage (%)	Overall Dimensions a×b×h	gauge crosswise×lengthways	all up (kg)
rated capacity ( KVA )	high pressure	low pressure	Join groups label	no-load loss (W)	load loss (W)	no-load current (%)	impedance voltage (%)	Overall Dimensions a×b×h	gauge crosswise×lengthways	all up (kg)
30				190	710	2.3	4	670500720	550*550	330
50				270	1000	2.2		690500770	550*550	380
80				370	1380	1.7		720500840	550*550	510
100				400	1570	1.7		750500860	550*550	590
125				470	1850	1.5		950600910	550*550	650
160				540	2130	1.5		1020600960	550*550	780
200				620	2530	1.3		10706001060	550*550	930
250				720	2760	1.3		11007101120	660*660	1040
315	11 10.5 10 6.3 6		Yyno or Dyn11	880	3470	1.1		11207101140	660*660	1180
400		0.4		980	3990	1.1		12108701240	660*660	1450
500				1160	4880	1.1		12408701310	820*820	1630
630				1300	5960	0.9	6	14008701400	820*820	1900
800				1520	6960	0.9		15508701460	820*820	2290
1000				1770	8130	0.9		16008701620	820*820	2700
1250				2090	9690	0.9		168011201700	1070*1070	3130
1600				2450	11730	0.9		175011201790	1070*1070	3740
2000				3050	14450	0.7		177011201810	1070*1070	4150
2500				3600	17170	0.7		184011201930	1070*1070	4810

Our factory found in 2004, located in Foshan GuangDong Province of Mainland China, with buliding area over 10000 square meter. Specialize in producing all kinds of Power transformer. Such as resin insulation dry-type power transformer, oil immersed distribution transformer, three-phase wond core distribution transformers, Furnace Transformer, OLTC transformer, Combined European Type Transformer, Combined American Type Transformer and so on.
