Product Specifications
| Prod Model: |
H10KS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage: |
110V/120V/220V/230V |
| Input Power Factor: |
>0.85 |
| Input Voltage: |
110V/120V/220V/230V |
| Color: |
Black/White |
| Cabinet: |
Metal |
| OEM: |
Available |
| Dimension: |
260X570X717mm |
| Output Waveform: |
Pure Sine Wave |
| Weight: |
73kgs |
| Warranty: |
12 Months |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Pocasa |
Product Description

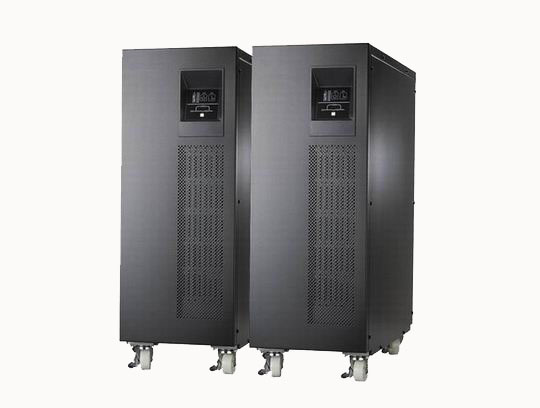

10KVA High Frequency Online UPS Power Supply
Key features:
1. True online double conversion technology
2. Wide input voltage range
3. Zero transfer time
4. Protection against all types of power problems
5. No add-on CNTL unit required for parallel connection
6. Low initial investment and flexible for future expansion
7. Highest reliability and maximum performance for power sharing and redundancy
8. Equipped with maintenance bypass switch
The best charger is designed to recharge low battery as quickly as possible with out damaging batteries in 2 amp up to 8 amp and 240VDC. Allowing 90% recharge in as little as 10 hours after a total drain.
Audible and visual over-load indicator
The incorporated LED over load indicator prevents ups overloads and premature failure of the UPS.
N+1 parallel redundancy
Allows a 6 KVA to grow up to 18KVA or 12KVA with 6KVA redundancy, allowing user to add capacity as needed and lower investment.
Simplified board separation
Dependent on the units all operation are separated into 5 PCBs allowing quick respond to damages and provides our valued dealers with simplified inventory and faster service to the end users.
Dynamic bypass
Automatic dynamic bypass and manual bypass provide a loop to repair UPS with out having to disconnect loads ideal for non stop computing for critical applications.
SNMP slot
Provides remote monitoring and control of UPS where a PC is not present or where this function is needed to be separated.
AS 400 dry contact card
Optional card to communicate in AS 400 protocols
Sine-wave output
True sine-wave output with a 3% THD on batteries. This feature provides dependable and compatible power for your most critical applications.
True double conversion technology with zero transfer time
This advance design provides the closest you can get to pure constant power in the industry.
|
Model |
H6KS/H6KL |
H10KS/H10KL |
|
Rated power |
VA/W |
6KVA/4.2KW |
10KVA/7KW |
|
Input |
Nominal voltage |
220VAC |
|
Voltage range |
176~276VAC |
|
Frequency range |
46~54Hz |
|
Power efficiency |
0.98 |
|
Connection |
Hardwired |
|
Output |
Voltage |
220VAC±1% |
|
Frequency |
50Hz±0.1%(battery mode) |
|
Waveform |
Pure sine wave |
|
Power factor |
0.8 |
|
Voltage distortion |
2% under linear load |
|
Overload capability |
105%~130% for 10 min., ³130% for 1 min. |
|
Current crest ratio |
3:1 Max. |
|
Connection |
Hardwired |
|
Battery |
Type |
Sealed, maintenance free, lead-acid |
|
Quantity |
20 pieces |
|
Back-up time(full load) |
7 min |
5 min |
|
Recharge time |
8 hrs to 90% of capacity after full load discharge |
|
Transfer time |
0ms |
|
Maintenance bypass switch |
Yes |
|
LED indicators |
Status |
Load level/battery level, battery, utility power, inverter, bypass, overload, fault |
|
Audible alarm |
Bypass |
Alarm beeps every two minutes |
|
Batterydischarge |
Alarm beeps every four seconds, every second if battery low |
|
Overload |
Alarm beeps two for every second |
|
Fault |
Alarm beeps continuously |
|
Acoustic noise |
At 1 meter distance |
£55 dB |
|
Communication |
DB-9 port |
RS232 serial interface |
|
Intelligent slot |
Options: WebPower, AS400 or WinPower CMC |
|
Parallel port |
Up to three units in parallel for power redundancy and load sharing |
|
Environmental |
Operating temperature |
0~40°C |
|
Operating humidity |
20%~90% non-condensing |
|
Weight |
Net(Kg) |
35/84 |
38/93 |
|
Dimension |
WxDxH(mm) |
260x570x717 |
Pocasa Electronic Limited has been engaged in development, manufacturing and sales of highly reliable and cost-effective uninterruptible power supplies (UPS) including low frequency online UPS, high frequency online UPS and pure sine wave inverter and modified sine wave inverter for global customers.
Production Ability
Nowadays, POCASA manufactures 100, 000PCS of power supplies each month including UPSs, power inverters, stabilizers/AVRs and battery chargers with power levels from 0.5kVA to 400kVA. POCASA optimizes Just in Time (JIT) resource planning and inventory control and supports our customers with minimized lead time and flexible delivery schedule.
Quality Assurance
POCASA's facilities are ISO9001 certified. Our products are also recognized by CE, UL, TUV, CSA, FCC, etc. To assure quality and safety. POCASA's modern facilities incorporate world-class manufacturing capabilities and technologies to produce high quality power supplies.
SMT Systems
Solder paste screen systems
In-circuit auto-test systems
Automated parts storage & retrieval systems
Wave solder systems
Burn-in racks
Automatic test systems
Our Advantages
POCASA will continue to excel towards providing perfect power management solutions. POCASA is confident to be your outstanding provider through:
1) The latest technologies
2) Real-time technology supports from a dedicated and well-trained engineer team
3) Rapid response to pre-sales and after-sales requests
4) A worldwide spread market network
POCASA takes pride in our expertise in offering high quality power supplies to all-purpose applications. You are invited to visit POCASA's plants at any time to see how POCASA designs and manufactures. Also you are encouraged to contact POCASA to obtain professional technology assistance.
