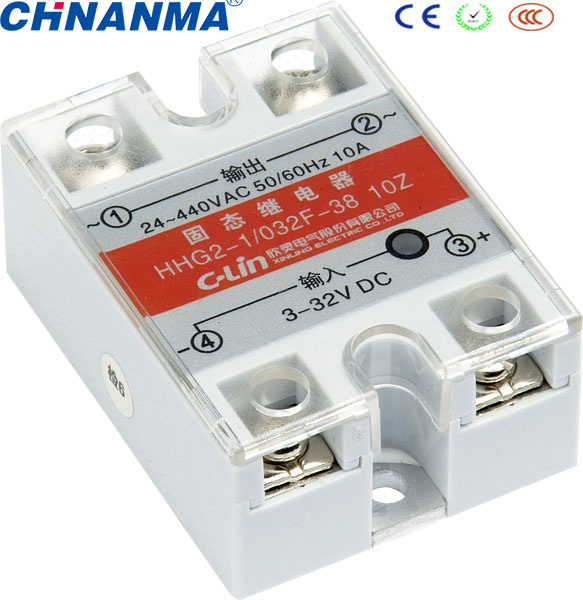

Product Description
solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.
Model Explanation
Specification
| Model | HHG5-1/032F-38 60-120A (SSR-DA) |
| HHG5-1/032F-120 60-120A (SSR-DA) |
| Control Voltage | 032:3-32VDC |
| Control Current | 6-25mA |
| Make-on Voltage | 3VDC |
| Break-off Voltage | 1VDC |
| Reverse Voltage | 32VDC |
| Load Voltage | 38:40-440VAC;120V:40-1200VAC |
| Load Current | 60,80,100,120A |
| Instant Voltage | 38:1100VAC; 120:1600VAC |
| Voltage Drop | <1.6VDC |
| On-off Time | ≤10mS |
| Leakage Current | ≤10mA |
| Dielectric Strength | ≥2500VAC |
| Insulation Resistance | 500MΩ,500VDC |
| Ambient Temperature | minus30 to 80ºC |
| Indicate Methods | LED |
Outline Dimension
Notes for Inquiry
Please specify the control voltage, load voltage, and load current so that we can quote for you soon.
