Product Specifications
| Prod Model: |
ST |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
18 Months |
| Wireless Solution: |
for Cardiac Stress Exercise |
| Operating System: |
Windows XP/Vista |
| Compatible: |
Trackmaster, Cosmos, RAM, Schiller, Taeha, Trackma |
| Function: |
Powerful Case Management |
| Optional: |
Treadmill |
| Classification: |
Physiological Functions of Diagnosis and Monitoring Equipment |
| Certification: |
ISO13485 |
Product Description
PC-Based Wireless Treadmill ECG Stress Test System
Wireless Solution for Cardiac Stress Exercise.
Windows XP/VISTA Operating System
CardioScape provides an intuitive user interface with flexible configurations to facilitate ease-of-use
Complete ST Presentation
In addition to continuous ST trends, CardioScape presents ST level and slope for all 12 average complexes and auto comparison with reference complexes which can be edited both during and after the procedure
Wireless ECG Acquisition Option
Wireless ECG module digitally transmits and receives diagnostic quality 12-lead ECG data without the need for a conventional tethered patient cable
Source Consistency Filter
CardioScape super anti-drift technology reduces noise and baseline artifact while preserving a diagnostic quality ECG signal
Beat By Beat Review Mode
Post-test playback allows for full disclosure review of the entire test
Comprehensive Trends
Display and print all kinds of trend graph such as HR, BP, METS, HR*BP, exercise trend, ST segment level/Influence/Slope/ST/HR, etc.
Powerful Case Management
CardioScape provides powerful case management & perfect case history input/output function
Compatible with RS232 Treadmills
CardioScape is compatible with Trackmaster, Cosmos, RAM, Schiller, Taeha, Trackmaster, Parker, Valiant

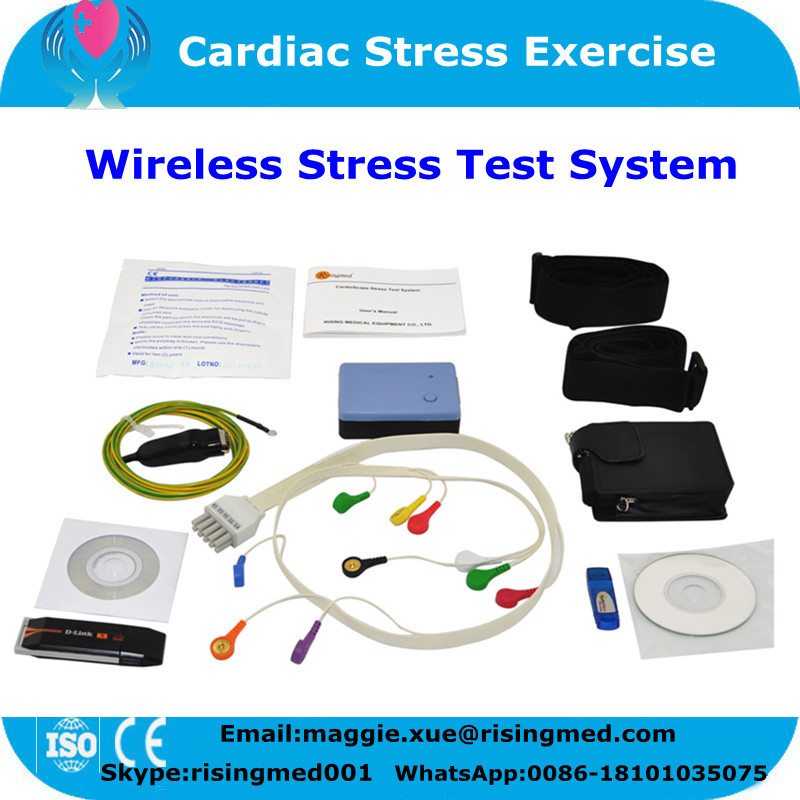

CardioScape Wireless ECG Transmitter & Receiver
CardioScape advanced wireless telemetry revolutionizes traditional stress exercise and enables new levels of freedom in multi-modality stress testing. CardioScape stress exercise systems applies patented ECG algorithms and are designed to meet a complete range of stress exercise testing needs
Freedom of Movement
CardioScape provides wireless freedom of movement for the patient and clinician
Diagnostic Quality
CardioScape wireless technology features full diagnostic ECG quality
Significant Artifact Reduction
The wireless soltuion eliminates artifact due to traditional cable movement, resulting in cleaner, higher quality tracing
Comfortable ECG Acquisition for Patient
CardioScape eliminate the need for traditional ECG patient cable
Specification:
Sample rate: 1000Hz
Resolution: 12 bit
Filter: 35 Hz, 50/60Hz
Gain: 5, 10, 20mm/mV
Heart rate range: 30-300bpm
Frequency response: 0.05-150Hz
Input impedance: ≥50 MΩ
Dynamic input range: ±3mV
Anti-polarization voltage: ±500mV
Communication: wireless transmission, USB
Wireless transmitter power supply: 5.0V (DC)
Wireless adapter: universal
Transmitter dimension: 92 x 63 x 28 mm
Receiver dimension: 149 x 79 x 21 mm
AC Inverter Motor Treadmill Model RTM-3000
Accurate speed control
Emergency stop button
Apply the latest AC inverter motor
User capacity of 180Kg
Frame of heavy-gauge steel
Safety side-rails are standard
Heavy duty 3 HP AC inverter drive
Excellent performance, reliable, stable with lower noise during working
Speed Range:0~20km/h
Elevation Range: 0-25% standard
Dimension: 210×82×140cm
Power Source: AC 220V, 50Hz
Beijing Careshine Technology Co., Ltd. Has been a professional manufacturer and supplier for high-tech medical equipments since 2001.
Careshine's medical equipments have a considerable market share in China domestic market and a growing increase in international market. The quality management system of Careshine is ISO9001 certified and the products are well received by customers for innovative design, reliable quality, competitive prices and rapid & effective customer service.
Careshine aims to build good business relationships with more international distributors and customers sincerely. Careshine assures dealers and clients to continue provide with more state-of-the-art products through sustained efforts in R&D and management.
