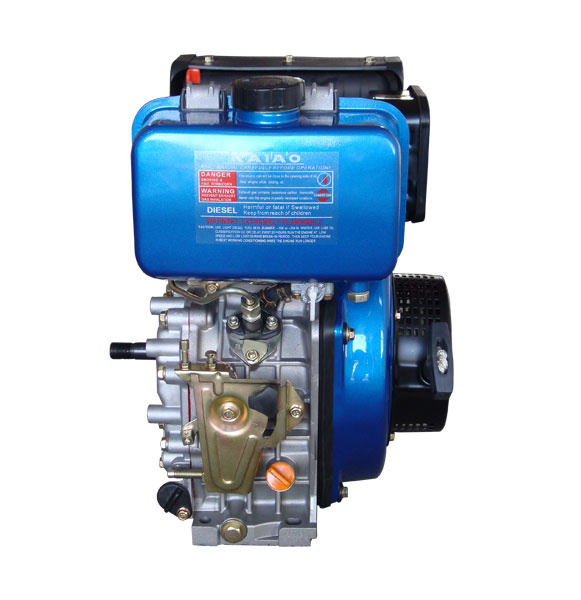

Model | KA188F |
Rated output(HP/rpm) | 10.3HP/3000 11.2HP/3600 |
Rated output(KW/rpm) | 7.5KW/3000rpm 8.2KW/3600rpm |
Engine type | Single cylinder, vertical, four-stroke, air-cooled, direct injection |
Diameter*stroke(mm) | 88*75 |
Piston displacement (L) | 0.45 |
Compression ratio | 19 |
Rated speed(rpm) | 3000/3600 |
Max. no-load speed(r/min) | 108% of Rated rotary speed |
Min. no-load speed(r/min) | 1300 |
Lubrication system | Pressure splash Type |
Engine starting system | Recoil starter or Electric starter |
Output terminal rotation | AnticlockWise |
Fuel oil model | Summer:0#, Winter:-10# |
Fuel tank capacity (L) | 5.5 |
Fuel consumption rate(g/kW.h) | 280.2/3000 288.3/3600 |
Oil grade | CD grade or SAE10W-30,15W-40 |
Lube oil capacity (L) | 1.65 |
Starting motor (V,kW) | 12V 0.8kW |
Charging generator(V,A) | 12V 3A |
Battery capacity(V,AH) | 12V-36AH |
Dimension (L*W*H)(mm) | 520*520*570 |
Net weight(kg) | 48 |
Small Diesel engine CE Approved
Air-cooled diesel engine, small diesel engine, diesel engine, engine, air-cooeld
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
