Product Specifications
| Prod Model: |
KDE3500E3 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
3kw 3kVA |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
AC Single Phase |
Product Description

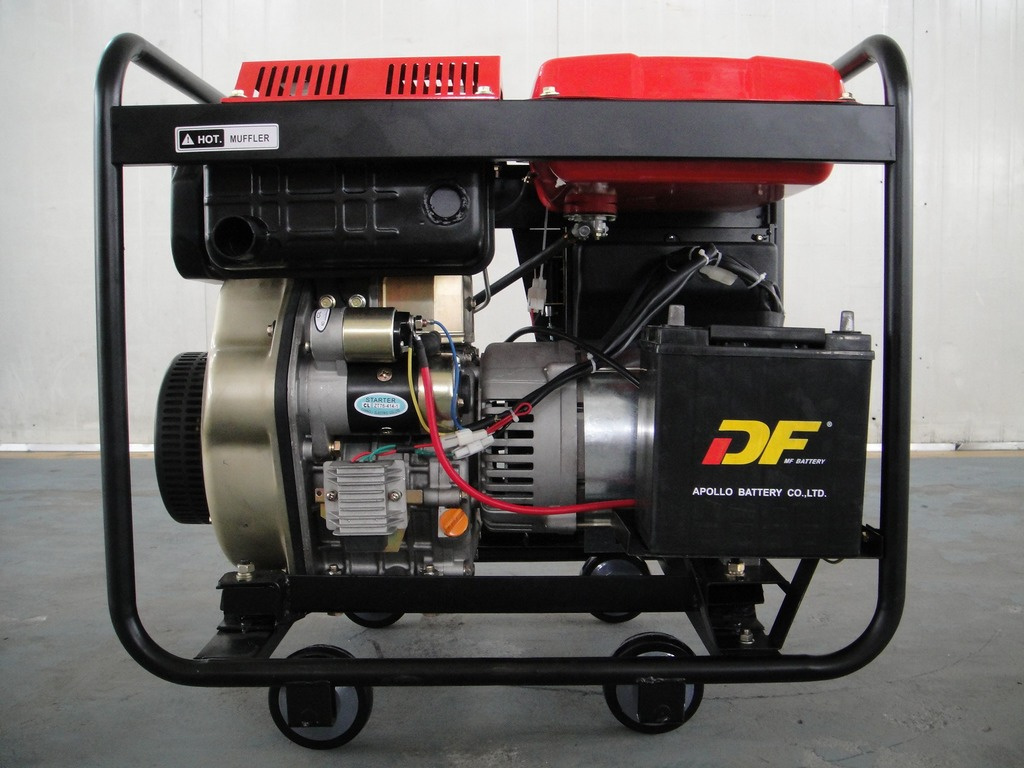

3 phase KDE3500E3 moving with wheels generator set portable
Best home using generator set
| WUXI KAIAO POWER MACHINERY CO., LTD |
| Contact person:Woody |
| Diesel generator KDE3500E3 |
| Model | KDE3500E3 |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 3.75 | 4.1 |
| Max. Power(KVA) | 4 | 4.75 |
| Voltage (V) | 230/400 | 240/416 |
| Current (A) | 5.43 | 5.69 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | 3 |
| Power factor(cosφ) | 0.8 |
| Excitation system | Self-excited constant voltage |
| Noise level (7m) | DB (A): 77 |
| Fuel tank capacity (L) | 12.5 |
| Structure | Open-frame |
| Panel | Ordinary |
| Outputsocket | Two |
| Output terminal post | No |
| DC12V output | Terminal post |
| Engine Model | KA178F |
| Bore*stroke (mm) | 78 *62 |
| Displacement (L) | 0.296 |
| Power (KW) | 3.68/3000 | 4/3600 |
| Fuel consumption rate (g. KW/h) | 276.1 | 285.6 |
| Compression ratio | 20 |
| Lubrication system | Spring |
| Engine starting system | Electric starter |
| Diesel oil model | Summer: 0#, winter: -10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.1 |
| Battery capacity(V-AH) | 12V-36Ah |
| Net weight (KG) | 70 |
| Dimension(L*W*H) | 680×530×590 |
8 years history, KAIAO has a strong research and development team, a high energy management team and 3 production facotries. AKAIO have so many different models of products. Most have achieved internationally recognized safety standard including CE, ISO etc.
The company is specialized in the development and manufacture of air-cooled diesel engine, air-cooled diesel generator sets, water pump unit, electric welding set ,Big power diesel generator sets,construction machinery and gardening machinery,etc. It possesses the strong technical force, and perfect after-sales service system.The company constructs the plant area with big investment from a high starting point and introduces advanced productive facilities and technology from domestic and oversea, in addition, the company promises up-to-date management mode and possesses perfect quality test equipment, which makes product quality assured.
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
