Wuxi Kaiao Power Machinery Co., Ltd. >> Diesel Generating Sets (KDE12T/CE approved)

Diesel Generating Sets (KDE12T/CE approved)

Name: Diesel Generating Sets (KDE12T/CE approved)
Brand: China-Manufacturer-Directory.com
SKU: 694978735
Availability: InStock
Rating: 4.9 (138 reviews)

Supplier:	Wuxi Kaiao Power Machinery Co., Ltd.
Price:	US $ 1750/Piece
Min Order:	5/Set
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	KDE12T
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output Power:	10kVA
Type:	Self-Starting Diesel Generator
Installation Method:	Portable
Stroke:	Eight Stroke
Cooling Method:	Air Cooled
Output Type:	AC Single Phase

Product Description

Double-Cylinder Diesel Generating Sets
1. CE&ISO9001 approved.
2. Powered by KAIAO advanced air-cooled diesel engine
3. Ideal for home emergency use or as standby power supply
4. Large fuel tank, ensuring hours of continuous output
5. Advanced direct fuel injection system
6. A variety of specially-designed control panels available for different markets

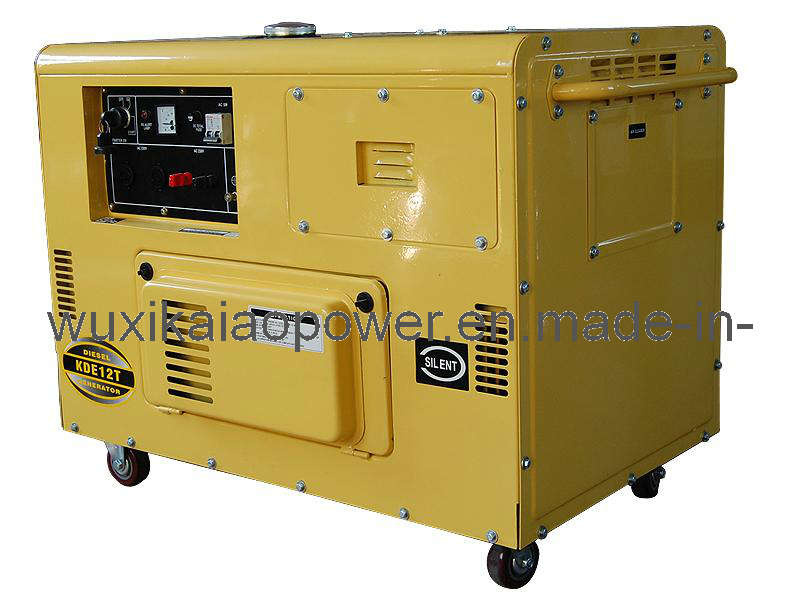

Diesel generator set KDE12T
Model	KDE12T
Frequency (Hz)	50	60
Output power (KVA)	8.5	9.5
Max. Power(KVA)	9.5	10.5
Voltage (V)	115/230	120/240
Current (A)	73.9/36.9	79.2/39.6
Engine speed (r/min)	3000	3600
Phase	Single
Power factor(cosφ )	1
Excitation system	Self-excited constant voltage
Noise level (7m)	DB (A): 72
Fuel tank capacity (L)	25
Structure	Silent
Panel	Ordinary
Output socket	Two
DC12V output	Terminal post
Engine Model	KA840
Bore*stroke (mm)	86 *72
Displacement (L)	0.863
Power (KW)	10.3/3000	11.3/3600
Fuel consumption rate (g. KW/h)	< 340	< 340
Compression ratio	19
Lubrication system	Spring
Engine starting system	Electric starter
Diesel oil model	Summer: 0#, winter: -10#
Lube oil model	SAE10W-30 (above CD grade)
Lube oil capacity (L)	1.65
Battery capacity(V-AH)	12V-36Ah
Net weight (KG)	170
Dimension(LWH)	1180× 720× 820

Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:

Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),

Air-cooled diesel generator set(2KW--8.5KW)

Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)

Air-cooled diesel generator light tower(400W-10000W)

Air-cooled gasoline generator (650W-5000W)

Water-cooled Diesel Generator(10kw-100kw),

Water pump unit(2 '', 3 '', 4 '')

Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.

Electric welding set, construction machinery, and gardenging machinery, etc.

Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.

We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.

Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
