Product Specifications
| Prod Model: |
TCQC-BG-3-140V-M150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
136-144MHz |
| Bandwidth: |
4MHz |
| Gain: |
3.0dBi |
| Height: |
520± 5 Mm |
| Maximum Power Input-Watts: |
200W |
| Polarization: |
Vertical |
| Lighting Protection: |
Direct Ground |
| Radiation: |
Omni |
| Antenna Termination: |
Pl259/SL16 |
| Radiating Element Material: |
Whip Steel |
| Usage: |
Car Antenna |
| Operating Wavelength: |
Microwave |
| Material: |
Steel Plate |
| Directionality: |
Omnidirectional Antenna |
| VSWR: |
<1.5 |
Product Description

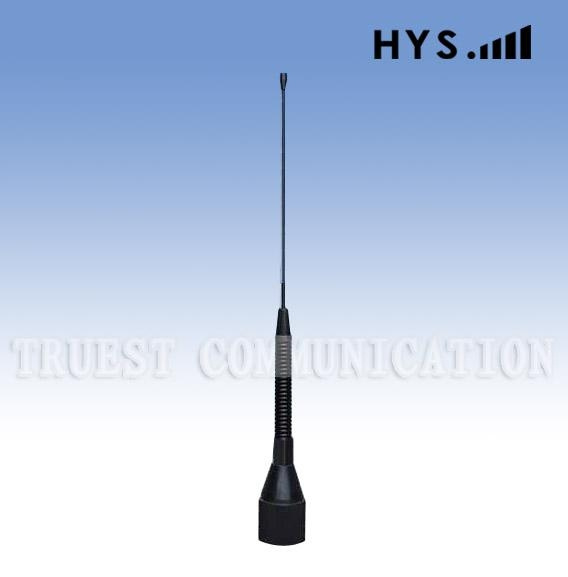

Mobile car antenna/antenna/radio antenna.
ELECTRICAL SPECIFICATIONS
FrequencyRange 136MHz-144MHz
Band width 4MHz
Impedance 50Ω
VSWR < 1.5
Gain 3.0dBi
Polarization Vertical
Maximum Power Input-watts 200W
Lighting Protection Direct Ground
Radiation Omni
MECHANICAL SPECIFICATIONS
Height 520±5 mm
Antenna termination PL259/SL16
Radiating element material Whip Steel
Diameter of Chassis Ø24.5±0.2 mm
| ELECTRICAL SPECIFICATIONS |
| Frequency Range | 136MHz-144MHz |
| Band width | 4MHz |
| Impedance | 50Ω |
| VSWR | < 1.5 |
| Gain | 3.0dBi |
| Polarization | Vertical |
| Maximum Power Input-watts | 200W |
| Lighting Protection | Direct Ground |
| Radiation | Omni |
| MECHANICAL SPECIFICATIONS |
| Height | 520± 5 mm |
| Antenna termination | PL259/SL16 |
| Radiating element material | Whip Steel |
| Diameter of Chassis | Ø 24.5± 0.2 mm |
