Hys Dual Band VHF&UHF Mobile FM Radio with CE Certification

Hys Dual Band VHF&UHF Mobile FM Radio with CE Certification
Price: Negotiable/Piece
Trade Terms: EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union

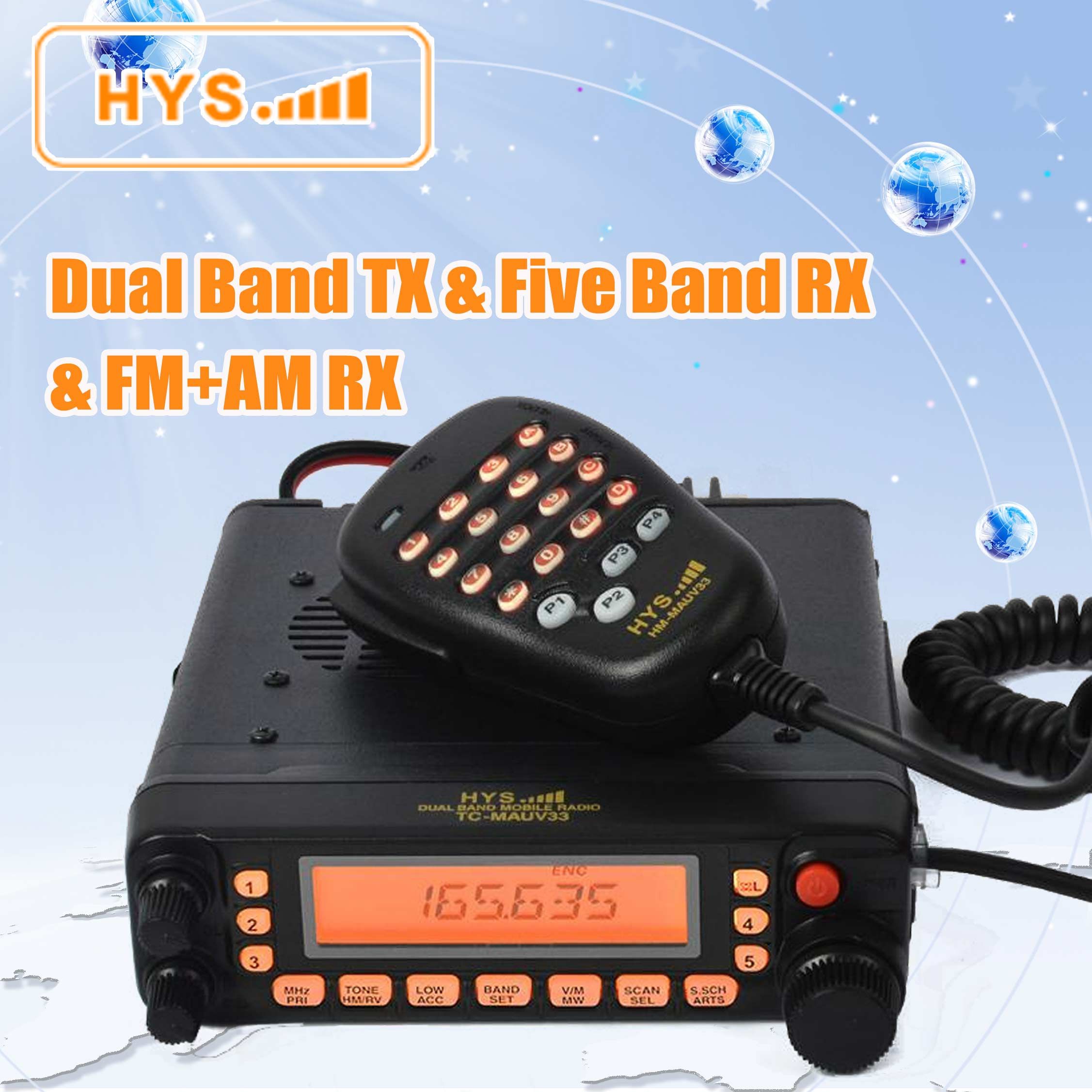

HYS Dual Band VHF&UHF Mobile FM Radio with CE Certification
Main Features:
Dual Band TX, Five Band RX, AM+FM RX
VFO/Channel/Priority/Programmable Scan
Dual Band Watch
Smart Search Function
Support Multi-scan Modes
Split Type Panel
Large Screen Display
Internet Connecting
Communication Range Auto Alert
MIC Auto Gain Control
Automatic Repeater Shift
Support DTMF/1750Hz Encode
Weather Broadcast Channel Alert
Technical specifical
Frequency RangeRX: 108.000-520.000 MHz & 700.000-999.990 MHz;
TX: 136.000-174.000 MHz & 400.000-470.000 MHz
Channel Capacity1105
Channel Spacing5/10/12.5/15/20/25/50/100 KHz
Operating VoltageDC13.8V±15%
Operating Temperatur-20ºC~ +60ºC
RF PowerVHF:50/20/10/5W; UHF:45/20/10/5W
Frequency ModulationF3E, F2D, F2A
Maximum Deviation±5KHz (Wide Band), ±2.5KHz (Narrow Band)
Sensitivity0.8uV (10dB SINAD, 108-137 MHz)
0.2uV (12dB SINAD, 136-174 MHz & 400-470 MHz)
Maximum AF Output2W (8Ω, 10% THD)
Dimensions(W×H×D)140mm × 42mm × 168mm
Weight1kg



Prod Model: TC-MAUV33
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Vehicle Mouted
Talk Range: 15-30km
Frequency Range: Tx: 136-174 MHz & 400-470 MHz Rx: 108-520m
Channel Spacing: 5/10/12.5/15/20/25/50/100 kHz
Storage Channel: 1105
Frequency Modulation: F3e, F2d, F2a
RF Power: VHF:50/20/10/5W; UHF:45/20/10/5W
Weight: 1kg
Dimensions: 140mm* 42mm * 168mm
Application: Military
Certification: CE
Style: Sky Wave
Condition: New
Standard: Standard
Screen: With Screen
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
