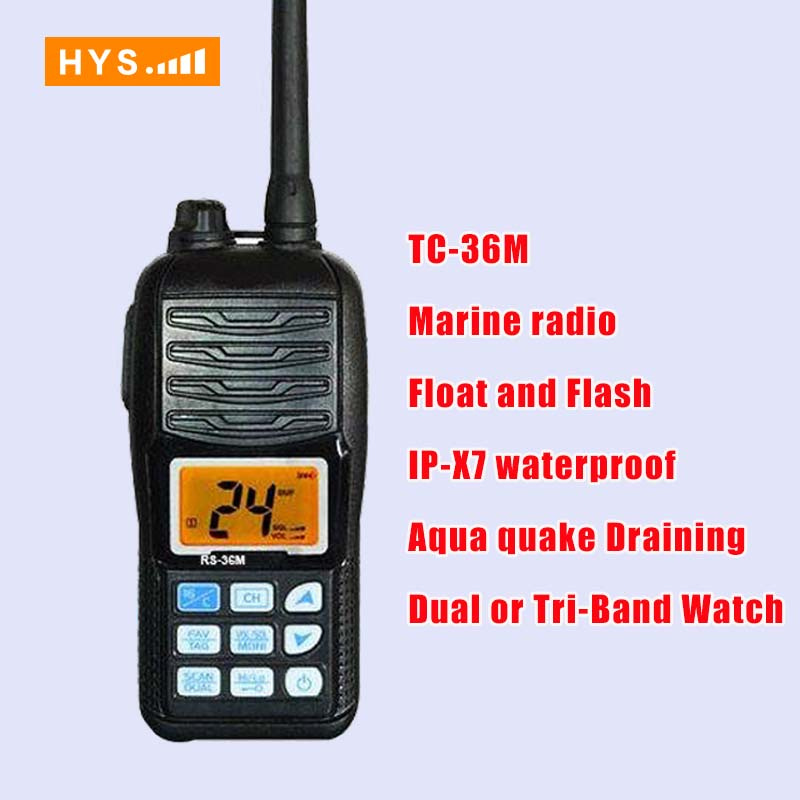

88 Chennals Waterproof Float Handheld Marine VHF Radio with Large LCD Display

Name: 88 Chennals Waterproof Float Handheld Marine VHF Radio with Large LCD Display
Brand: china-manufacturer-directory.com
SKU: 776284255
Availability: InStock
Rating: 4.5 (132 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	TC-36M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Handheld
Frequency Range:	Tx:156.000-161.450MHz Rx:156.000-163.425MHz
Storage Channel:	80
Talk Range:	5-15km
Channel Spacing:	25kHz
Work Voltage (V):	DC3.6
Battery:	1500mAh(Li-ion)
Type Of Emission:	FM(16k0g3e
Dimensions:	6514041mm
Weight:	247g
Application:	Military
Certification:	ISO
Style:	Sky Wave
Condition:	New
Standard:	Standard
Screen:	With Screen

Product Description

88 Chennals Waterproof Float Handheld Marine VHF Radio with Large LCD Display
Main Features
1. Float and Flash
2. IP-X7 (1meter Depth for 30 Minutes)
3. Dual Bands Frequency Watch or Three Bands Frequency Watch
4. 3.7V Energy-saving Circuitry
5. Large LCD Display Easy To See And Operate
6. Built-in Regular Charger Circuitry
7. 4-step Battery Life Indicator
8. Favorite Channel Can Be Set
9. Aqua quake Draining
10. Auto Scan
Specification

General
Frequency Range	TX:156.000-161.450MHz
Frequency Range	RX:156.000-163.425MHz
Channel No.	80
Channel Spacing	25KHz
Work Voltage (V)	DC3.6
Battery	1500mAh(Li-Ion)
Type of Emission	FM(16K0G3E)
Dimensions(W×H×D)	65×140×41mm
Weight	247g
RF Power(W)	HI:4W±0.5
	A-HI:2.3±0.2
	LOW:0.8±0.1
	E-LOW:0.5±0.1
TX Current(A)	2.2/1.6/0.9/0.7
Modulation Sensitivity	2.6±0.1mV
Maximum Frequency Deviation	±4.8KHz
TX Audio Distortion	≤5%
TX Frequency Stabilization	≤ 4 ppm
Reception Sensitivity (with 12Db SINAB)	≤0.35µV
Max Audio Power	≥450mW
Rated Audio Power	≥300mW
Average Standby Current	≤26
Max RX Current(mA)	≤250
RX Audio Distortion	≤8%
Adjacent Channel Selectivity	≥55dB
Intermodulation Immunity	≥55dB
Channel Rejection	≥-8dB
RX Frequency Stabilization	≤ 4 ppm
Operating Temperature	-20°C~+60°C
Antenna Impedance	50Ω

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
