| Supplier: | Quanzhou Truest Communication Co., Ltd. |
|---|---|
| Price: | US $ 35/Piece |
| Min Order: | 2/Piece |
| Quantity:: | |
| Trade Terms: | FOB,EXW |
|
|
| Prod Model: | TC-8W |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: | 400-470MHz |
| Storage Channel: | 16 Channels |
| Output Power: | 8W |
| Voltage: | 13.8V |
| Battery Capacity: | 3000mAh |
| Warranty: | One Year |
| Color: | Black |
| FM Radio: | Yes |
| Talk Range: | 8-12km |
| Style: | Handheld |
| Usage: | Army |
| Type: | Handheld |
| Battery Type: | Lithium Battery |
| Display: | Without Display |
| Working Frequency Range: | UHF Segment |
Main features
1.Frequency Range UHF 400-470MHz
2.16 channels
3. Output power:8w
4. Low Power Remind
5. PC software programmable, Encrypted programming software
6. VOX function
7. CTCSS/DCS
8. Chinese and Engllish voice prompt
9. Power saving function
10. High/low power selective
11. Wide/narrow bandwidth selective
13. Flashlight
15. Busy channel lock
16. Transmitter time-out timer(TOT)
17. Side key assignment
18. 0-9 grades squelch level setting

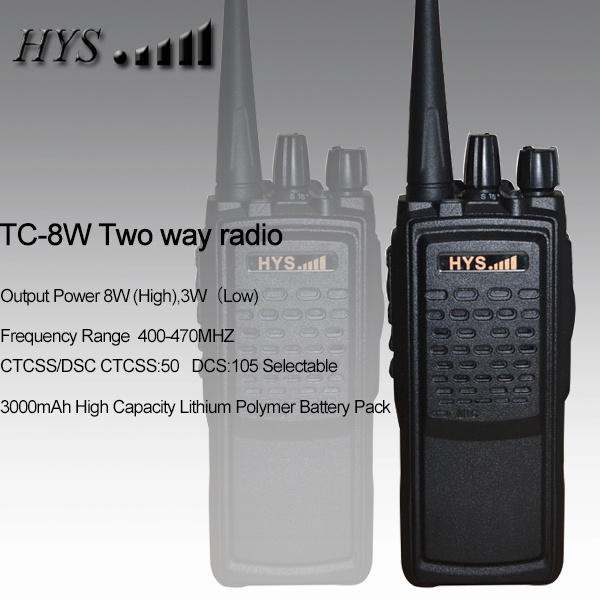

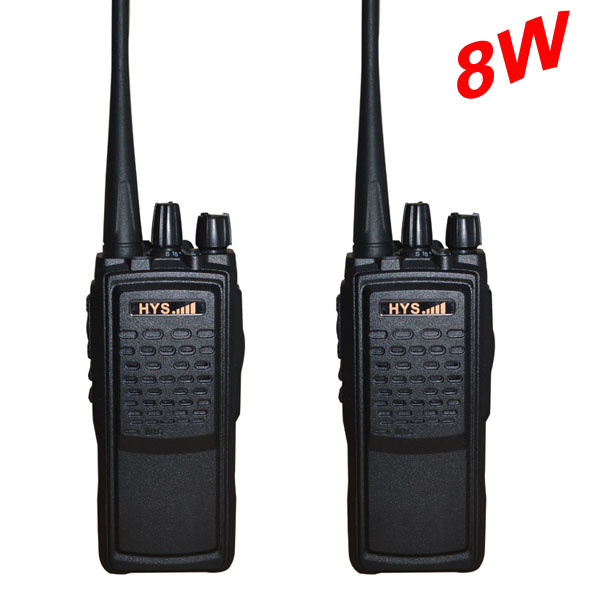

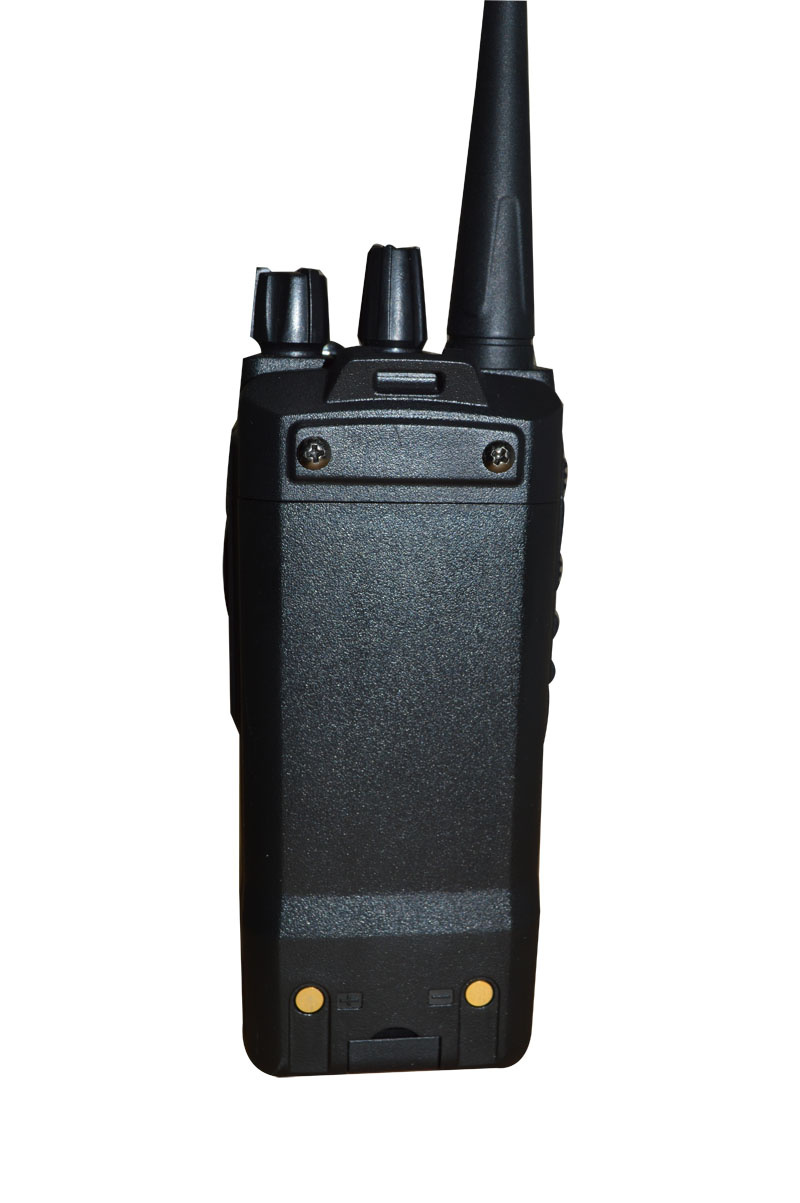

| Model | TC-8W two-way radio | |
| GENERAL | Frequency Range | 400-470Mhz |
| Number of Channels | 16 | |
| Working Voltage | 7.4V LI-ION | |
| Working Temperature | -20°C~+60°C | |
| Frequency Stability | ±2.5ppm | |
| Size(H*L*W) | 111*54*34mm | |
| Weight | 249g | |
| TRANSMR | Power Output | 8W |
| Modulation | F3E | |
| Radiation | <-60dB | |
| Power | >55/65dB | |
| Modulation Limit | ±2.5/5KHz | |
| Distortion | ≤5% | |
| Noise Response | 34/40dB | |
| RECEIVER | Sensitivity | <0.20µV |
| Neighbour Channel Selectivity | ≥60/70dB | |
| Noise Response | ≥65/70dB | |
| Audio Power | 500mW | |
| Audio Distortion | ≤5% | |
| Intermodulation Distortion | ≥60dB | |
