| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | EXW |
| Min Order: | 2/Piece |
| Pay Type: | T/T,Paypal,Western Union |
| 4. Working Mode: U&V, U&U, V&V, V&U | 22. Auto Backlight | ||
| 5. Dual frequency display(Caller ID) | 23. Auto/Manual Keyboard Lock | ||
| 6+. Dual frequency standby in any band | 24. Three Display Color selectable both in transmitting,receiving and standby | ||
| 7. Receiving and transmitting inter-band | 25. Frequency, Channel order and Channel name multi-display mode | ||
| 8. DTMF Signaling System | 26. Calling Ring Function | ||
| 9. Digital FM Radio | 27. DTMF | ||
| 10. 50 Groups CTCSS and 105 Groups DCS | 28. PTT-ID Function | ||
| 11. ANI Code Display | 29. Mute mode (CTCSS/DCS, CTCSS/DCS and Optional Signal, CTCSS/DCS plus Optional Signal) | ||
| 12. All calls, group calls and selective calls | |||
| 13.Alarm(Distant Urgency Alarm and Alarm at local) | 30. Offset Frequency( can be set between 0 and 69.9875 MHz in Frequency Mode) | ||
| 14. Non-standard CTCSS(Can be edited arbitrary between 60Hz and 259.9 Hz) | 31. Operating MENU directly through Keypad | ||
| 15. TOT | 32. Frequency, Channel and MENU Fast Search Function | ||
| 16. High/Low Power shift | 33. Channel Parameter can be saved in the Frequency Mode | ||
| 17. CTCSS or DCS can be set respectively | 34. 128 Channels | ||
| 18. Channel Step(5K, 6.25K, 10K, 12.5K, 25K) | 35. Reverse Frequency Function | ||
| 19. VOX function | 36. U/V Receiving and Transmitting Inter-Band can be Connected with Repeater | ||
| 20. Battery Save Function | 37. Wired Cloning Function | ||
| 21. Wide and Narrow band Selectable (N:12.5KHz/W:25KHz) | 38. PC Programmable | ||
| General Specifications | |||
| Frequency Range | FM:87-108MHZ(Receiving) VHF:136-174.995MHZ(Receiving &Transmitting) UHF0:350-390.995MHZ(Receiving) UHF1:400-479.995MHZ(Receiving &Transmitting) UHF2:480-520.955MHZ(Receiving) | Working Mode | Same frequency simplex or Double frequency simplex |
| Memory Channels | 128 | Antenna Impedance | 50Ω |
| Voltage | 7.5V | Frequency Stability | ±2.5ppm |
| Operating Temperature | -30ºC-+60ºC | Net Weight | About 246g |
| Battery capacity | 1600mAh (Li-ion) | Dimensions | 58X105X38MM(without antenna) |
| Transmitter (Measurements made per TIA/EIA-603) | |||
| RF Output Power | High:4W ,Low:1W | Audio Modulation Characteristic | (300-3000Hz),+1dB- -3dB |
| Modulation Mode | 16KφF3E/11KφF3E | Adjacent Channel Power | ≥65dB |
| Spurious Radiation | <7μW | Modulation Distortion | ≤5% |
| Max Offset frequency | Channel space 25KHz±5KHz/12.5KHz±2.5KHz | Channel Space | 25KHz |
| Receiver (Measurements made per TIA/EIA-603) | |||
| Sensitivity | (12dBSINAD) 0.18μV | Co-channel Rejection | ≥-0.8dB |
| Noise Quieting Sensitivity | ≤0.8μV | Limited radio features | ≤3 |
| Squelch Sensitivity | ≤0.2μV | Adjacent Channel Selectivity | ≥55dB |
| Audio Output Power | 500mW | Inter modulation characteristics | ≥65dB |
| Audio Distortion | ≤5% | Blocking characteristics | ≥84dB |
| Audio Response | (300-3000Hz)+1dB--3dB | Spurious Radiation | 9KHz-1GHz≤-57dBm |
| Channel Space | 25KHz≥70dB/12.5KHz≥60dB | ||
| Place of Origin: | Brand Name: | Model Number: | |||
| Type: | Dimensions: | Frequency Range: | |||
| Storage Channel: | Talk Range: | Voltage: | |||
| Battery capacity: | Antenna Impedance: | Frequency Stability: | |||
| CTCSS/DCS: |
| Packaging Details: | In gift boxes/cartons |
| Delivery Detail: | within 2-3days after payment confirmed |

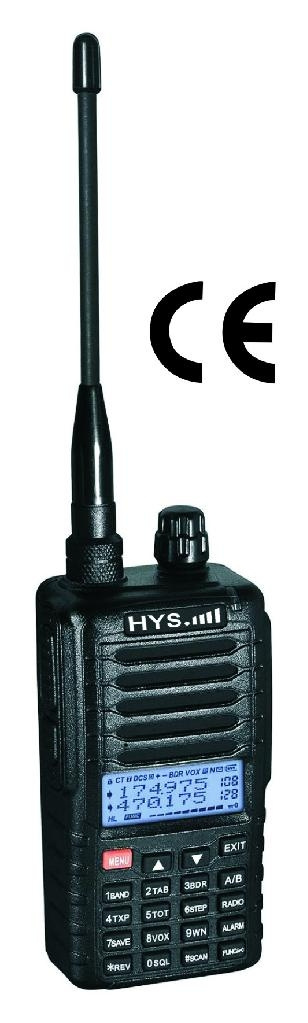

| Prod Model: | TC-VU99 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia |
| Frequency Range: | FM:87-108MHz(Receiving) VHF:136-174.995MHz |
| Memory Channels: | 128 Channels |
| Channel Spacing: | 12.5/25kHz |
| Frequency Stability: | ±2.5ppm |
| Antenna Impedance: | 50omen |
| Weight: | 205g(Except Battery and Antenna ) |
| Frequency Combination: | Phase Lock Loop Frequency Synthesize |
| Operating Voltage: | DC7.4V |
| Battery Capacity: | 1400mAh(Li-ion Battery) |
| Dimension(Approx.): | 58×105×38mm (Except Antenna) |
