Price: | Negotiable/Piece |
---|---|
Trade Terms: | EXW |
Min Order: | 1/Piece |
Pay Type: | T/T,Paypal,Western Union |
Prod Model: | TC-8900R |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Channels: | Over 800 |
Work Mode: | U&V, U&U, V&V, V&U |
Frequency Range: | 400.000-470.000MHz/, 700-950MHz |
RF Power: | 50/20/10/5W(29/50/144MHz) 35/20/10/5W(430MHz) |
Operating Modes: | F3, F2, F1 |
Frequency Step: | 5/10/12.5/15/20/25/50kHz |
Power Supply: | 13.8V(±15%) |
Dimensions(W×h×d): | 140×41.5×168mm |
Weight: | 1070g |
Modulation Distortion: | <3% |
Wavelength And Frequency: | Long-wave |
Style: | Sky Wave |
Condition: | New |
Standard: | Standard |
Screen: | With Screen |
Product Description

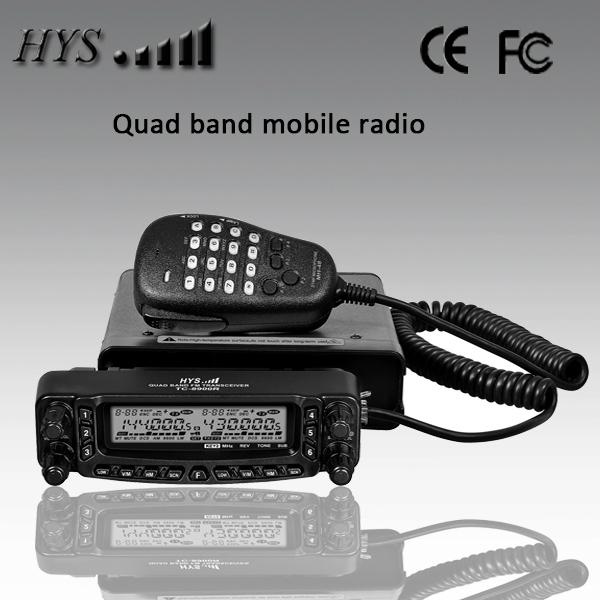

Main Features of Quad Bands transceiver TC-8900R
1. Quad Bands Operation
2. Over 800 Memory Channels
3. CTCSS/DCS Built-in; DTMF Function
4. Convenient Access To WIRES and Other Internet-linking Systems
5. Cross-band Repeat Capability
Technical Specifications
Frequency Range :RX:26.000-33.000MHz 47.000-54.000MHz
108.800-180.000MHz :(108.800-136.995MHz FM)
320.000-480.000MHz :700-985MHz
TX:26.000-33.000MHz :47.000-54.000MHz
136.000-174.000MHz :400.000-470.000MHz
RF Power :50/20/10/5W(29/50/144MHz) 35/20/10/5W(430MHz)
Operating Modes :F3, F2, F1
Frequency Step :5/10/12.5/15/20/25/50kHz
Power Supply :13.8V(±15%)
Frequency Stability :±2.5PPM
Operating Temperature Range :-20°C~+60°C
Antenna Impedance :50Ω
Dimensions(W×H×D) :140×41.5×168mm
Weight :1070g
Transmitter
Power Output :50/20/10/5W(29/50/144Mhz)
35/20/10/5W(430Mhz)
Maximum modulation frequency deviation :±5khz(wide band)
±2.5khz(narrow band)
out-of-band radiation :≤ -69dB(29Mhz≤-50dB)
Modulation Distortion :<3%
Microphone Impedance :2KΩ
Receiver
Sensitivity :≤0.2µV(12dB SINAD)
Circuit type Second type difference frequency outside
IF-FRE 45.05Mhz/450Khz(left)
47.25Mhz/450Khz(right)
selectivity 12Khz/30Khz
The biggest audio output 2W(8Ω)
