High Power LCD Display Dual Stanby Baofeng Dual Band Radio

Name: High Power LCD Display Dual Stanby Baofeng Dual Band Radio
Brand: china-manufacturer-directory.com
SKU: 775100595
Availability: InStock
Rating: 4.5 (53 reviews)

Price:	Negotiable/Piece
Trade Terms:	EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

High Power LCD Display Dual Stanby Baofeng Dual Band Radio
Specification
General

Frequency Range	136-174 & 400-520MHz
Channel Capacity	128
Channel Spacing	12.5(narrow)25KHz(wide)
Operated Voltage	7.4V
Frequency Stability	2.5ppm
Operated Temperature	-30 º C ~+60 º C
Antenna Impedance	50 Ω
Transmitting Current	About 1.5A

Transceiver

Modulation	F3E
Max Frequency Deviation	5KHz (N)/ 2.5KHz (W)
Adjacent Channel Power	≤-65dB≤-60dB
FM Noise(N/W)	≥-45dB≥-40dB
Modulation sensitivity	8-12mV
Dimensions	62.512336mm
Weight	About 251g

Receiver

Sensitivity(12dB SINAD)	≤0.25 uV
Max Audio power output	1W @10%
Audio distortion	≤10%
FM noise	≥-45dB
Adjacent Channel Power	≤-65dB≤-60dB
Inter modulation	≥65dB
Spurious response	≥65dB
Receiver current	≤380mA

Package Includes

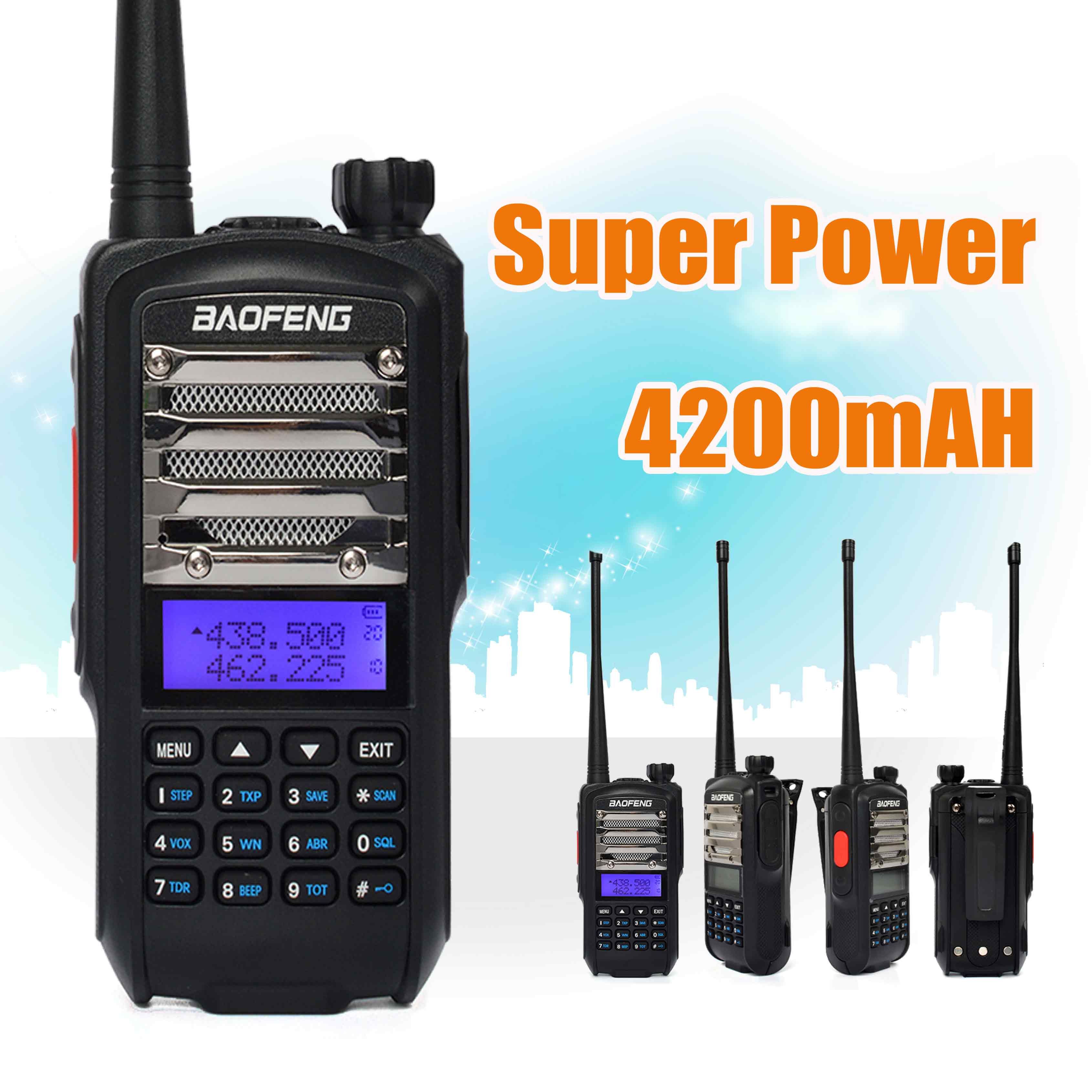

Baofeng UV-9 Dual Band Two-way Radio

Ac Charger

Battery (Li-ion 7.4V 4200mAH )

Antenna

Hang Strap

Belt Clip and Screw

User's Manual
Shipping

shipping options		Recommend	Delivery Time
Post Mail		For Sample Order	7-60business days
Express	DHL	Widely recommend	3-7 business days
	UPS	Widely recommend	3-7 business days
	FEDEX	recommend	5-7 business days
	TNT	recommend	5-7 business days
	EMS	Widely recommend	5-10 business days
Airfreight		for Large Quantity	5-7 business days
By sea		for Large Quantity	7-35 business days

Prod Model:	UV-9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	136-174 & 400-520MHz
Channel Capacity:	128
Channel Spacing:	12.5(Narrow)25kHz(Wide)
Operated Voltage:	7.4V
Modulation:	F3e
Modulation Sensitivity:	8-12mv
Dimensions:	62.512336mm
Weight:	About 251g
Application:	Military
Certification:	CE
Style:	Sky Wave
Condition:	New
Standard:	Standard
Screen:	With Screen

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
