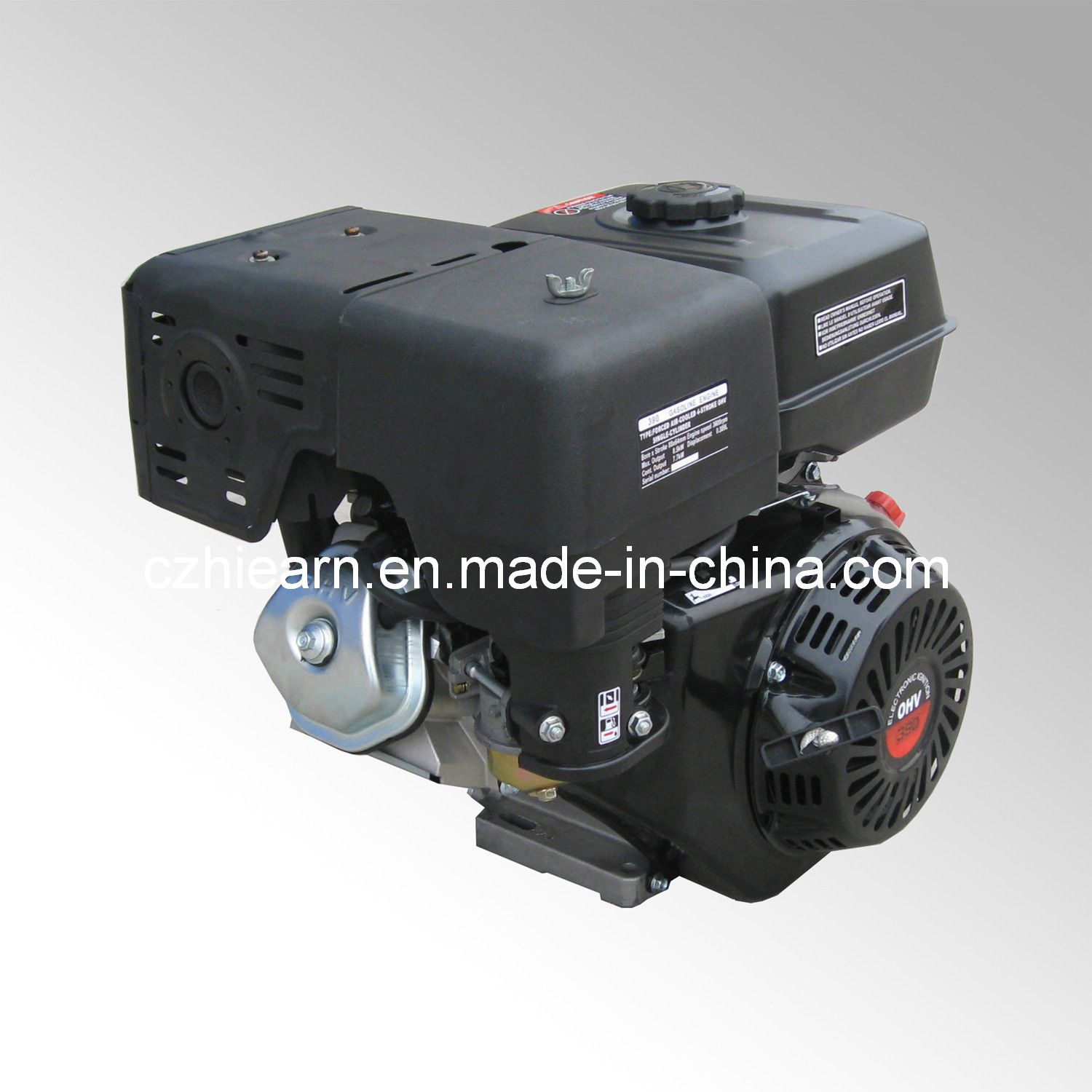

13HP Petrol Gasoline Power Engine (HR390)
Product Specifications
| Prod Model: |
HR390 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Hr390 |
| Power: |
13HP |
| Fuel: |
Gasoline Engine |
Product Description
Gasoline Engine (HR390)
*Auto decompressing makes starting easy
*OHV leads to the lower fuel consumption
*Oil alert automatically shut off the engine
*Electronic ignition
*Recoil starter makes the safe starting
*Auto decompressing makes easy starting
Gasoline engine
Model HR390
Engine type Four-stroke, air-cooled, OHV gasoline engine
BoreXstroke (mm) 82x64
Displacement (CC) 0.337
Max. Output(kw) 7.35
Rated output(kw) 6.6
Fuel Unleaded gasoline
Fuel oil tank volume(I) 6.5
Fuel oil consumption rate 290g/HP. H
Gasoline Engine (HR390)
Lubricatiom model Splashing Lubricatiom oil SAE10W30
Lubricatiom oil volume(l) 1.1
Starting system Recoil or Electric
Lgnition model TCI(transistor ignition)
Spark plug BP6ES
PTO rotation direction It is clockwise as viewing from the flywheel end
Air cleaner Half-dry, oil-Immersed, Foam filter
Dimension (mm) 450x405x443
Net weight(kg) 31.
|
Model |
HR152 |
HR160 |
HR200 |
HR240 |
HR270 |
HR340 |
HR390 |
|
Engine type |
Four-stroke,air-cooled,OHV gasoline engine |
|
BoreXstroke (mm) |
52x48 |
68x45 |
68x54 |
73x58 |
77x58 |
82x64 |
88x64 |
|
Displacement (cc) |
0.133 |
0.163 |
0.196 |
0.242 |
0.27 |
0.337 |
0.389 |
|
Max.output(kw) |
3 |
3.6 |
4.4 |
5.2 |
5.9 |
7.35 |
8.5 |
|
Rated output(kw) |
2.7 |
3.3 |
4 |
4.8 |
5.2 |
6.6 |
7.7 |
|
Fule |
Unleaded gasoline |
|
Fule oil tank volume (I) |
1.6 |
3.6 |
6 |
6.5 |
|
Fule oil consumption rate |
275g/Hp@h |
295g/Hp@h |
280g/Hp@h |
280g/Hp@h |
280g/Hp@h |
290g/Hp@h |
280g/Hp@h |
|
Lubricatiom model |
Splashing |
|
Lubricatiom oil |
SAE10W30 |
|
Lubricatiom oil volume(l) |
0.37 |
0.6 |
1.1 |
|
Starting system |
Recoil |
Recoil or Electric |
|
Lgnition model |
TCI(transistor ignition) |
|
Spark plug |
BP6ES |
|
PTO rotation direction |
It is clockwise as viewing from the flywheel end |
|
Air cleaner |
Half-dry,oil-Immersed,Foam filter |
|
Dimension (mm) |
341x305x318 |
362x312x335 |
430x380x410 |
450x405x443 |
|
Net weight(kg) |
13 |
15 |
16 |
25 |
31 |
Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.
Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
