Product Specifications
| Prod Model: |
IPPC-1527 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
IPC |
| Touch Screen: |
Touch Screen |
| Installation: |
Wall-Mounted |
| Application: |
Industrial |
| Power Supply Type: |
ATX12V |
| Screen Size: |
15'' |
| CPU Type: |
Intel Atom N270 1.6GHz |
| CPU Card Size: |
Mini Itx Mother Board |
| Case Type: |
Metal Case |
| Hard Disk Rack Type: |
SSD/HDD Optional |
| System Expansion Slot: |
PCI Slot |
| Accessories: |
CD Driver, User Manual etc |
Product Description

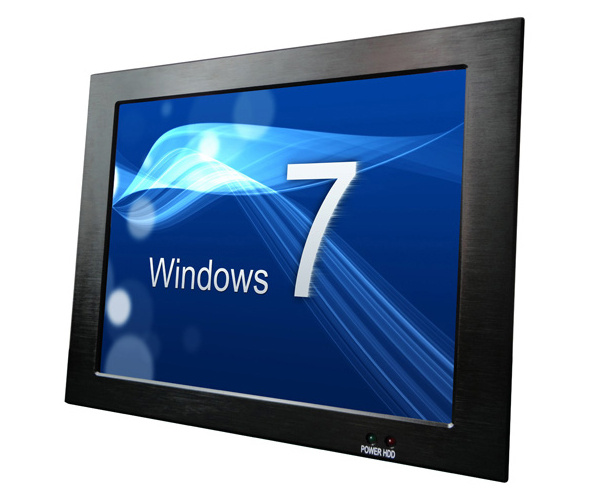

IPPC-1527 is an industrial panel PC with 15'' high brightness LCD, the latest low-power motherboard, 16G SSD. It comes with 1*extensional PCI slot, 2*LAN, 4* USB ports, 4*COM, 1*VGA, 1*audio, 1*PS/2 KB /mouse.
Smart fanless-design. It has Installation methods: Panel type, wall-mounted, VESA standard etc. And The product structure is very compact and robust with better vibration and resistance.
IPPC-1527 is a cost-effective industrial grade panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
IP rate: Water proof IP65 front panel (Optional).
| CPU | Onboard Atom N270 1.6Ghz. |
| Chipset | 945GSED I&ICH7 |
| Display | 15″high-brightness LCD screen |
| Resolution | 1024x768 |
| Memory | DDRII 1GB, up to 2GB |
| HDD/SSD | HDD:320GB; SSD: 16Gb/32Gb( Optional) |
| Audio interface | SPK-Out\MIC-In\Line In |
| Network interface | 1x 100/1000Mbps Ethernet controller |

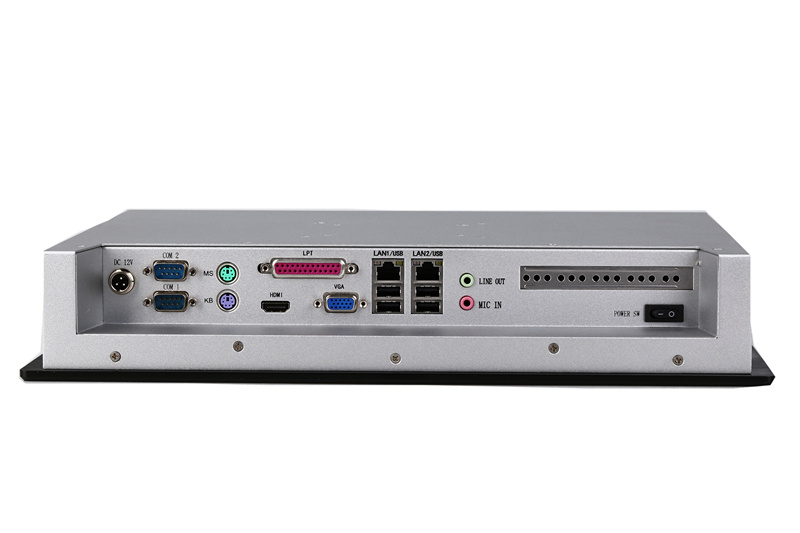

| I/O | 3×RS23 (1 supports 485/422) |
| 4×USB2.0 |
| 1×VGA |
2xLAN
1*Audio |
| 1*LPT |
| 1x PCI slot |
| 1PS/2 Mouse/ Keyboard |
| 1xpower switch |
| Touch screen | 5wire resistive (optional) |
| Extensional slot | 1*PCI slot |
| Power Supply | DC8-28V 5A power adapter,AC100V~265v 65HZ |
| Cooling | a 40×20 inlet fan in the chassis,there is sufficient cooling ventilation openings at the bottom of the chassis |
| Fanless | Fanless design |
| Dimension | 403mm(L)×304mm(W)×70 mm(H) |

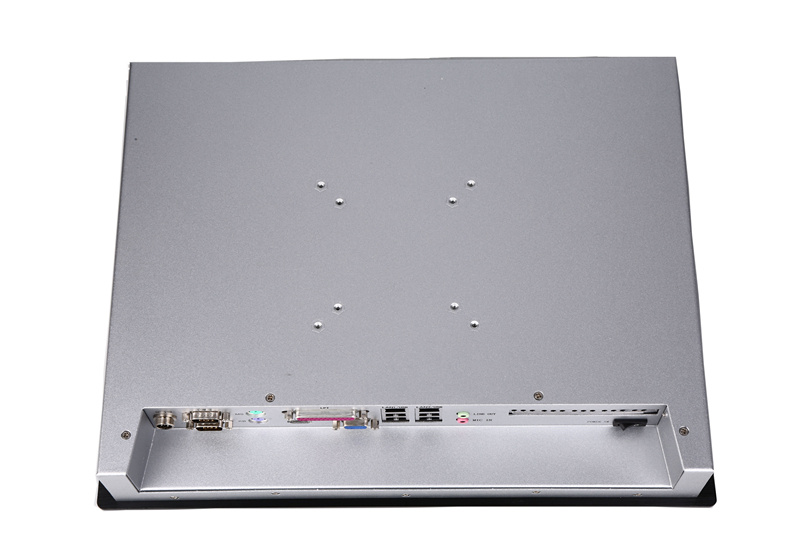

| Installation | Panel type, wall- mount, table, bracket etc |
| Net Weight | Abt 4.1 KG |
| Gross Weight | Abt 9.5Kg |
| Operating temp | -10ºC~50ºC |
| Humidity | -20ºC~60ºC |
