150W Single Output DC-DC Switching Power Supply

Name: 150W Single Output DC-DC Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 768353195
Availability: InStock
Rating: 4.5 (91 reviews)

Supplier:	Changzhou Chuanglian Power Supply Co., Ltd.
Price:	US $ 14.6-15.3/Piece
Min Order:	300/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CL-150
Markets:	Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Size:	199X110X50mm
Output Voltage:	12V, 24V
Output Type:	Single
Warranty:	1 Year
Output Power:	150W
Input Voltage:	18-36VDC,36-72VDC,72-144VDC
Brand:	Czcl

Product Description

Product Model:CL-150

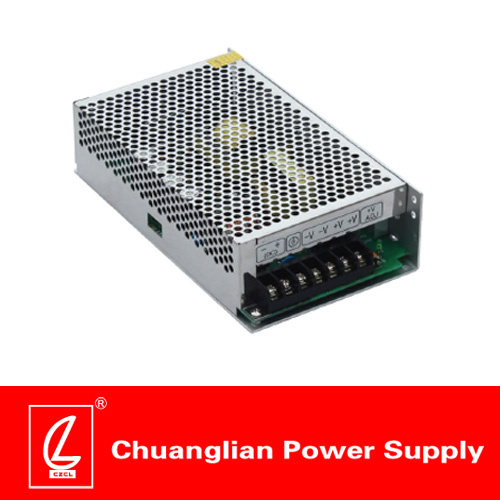

150W Single Output DC-DC Switching Power Supply

Low cost,High reliability
Built-in EMI filter
Low output ripple&noise
2:1 wide input range
Protections:Over load / Short circuit1 years warranty
CASE: 808; Size:199×110×50mm

DC adjustment range---------------±10% rated output voltage
Line regulation(full load)------------≤0.5%
Output over load protection--------105%-150% hiccup mode,auto-recovery
Withstand voltage------- -----------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,:0.5KVAC,1min
Working temperature--------------- -10~+40ºC@ 100%,60ºC@ 60% load
Storage temperature-------------- -20ºC~+85ºC,20%~95%RH(non condensing)
Safety standards---------------------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards-----------------------Design refer to GB9254,EN55022 class A
Cooling method----------------------Free air cooling convection

Product model	Input	Output	Load regul.	R&N	Efficiency
CL-150-24-12	18~36V	12V,12.5A	0.5%	100mV	75%
CL-150-24-24	18~36V	24V,6.3A	0.5%	150mV	77%
CL-150-48-12	36~72V	12V,12.5A	0.5%	100mV	77%
CL-150-48-24	36~72V	24V,6.3A	0.5%	150mV	80%
CL-150-110-12	72~144V	12V,12.5A	0.5%	100mV	79%
CL-150-110-24	72~144V	24V,6.3A	0.5%	150mV	82%

Founded in March of 2000, Changzhou Chuanglian Power Supply Co. Ltd. Focuses on researching, developing and manufacturing varieties of AC/DC and DC/DC switching power supplies and modules. Chuanglian® Is one of the famous and leading brands in the switching power supply industry in China. The product spectrum of the company covers the power rating from 5W to 2, 000W in over 2, 000 different models. Chuanglian Power Supplies are widely used in communication, LED display, industrial control, monitors, lighting, railway system, power station, instrumentation, medical equipment, etc. The company offers the costumers in over 50 countries/Regions including Europe, the USA, Japan, Korea, Hong Kong with the annual capacity of 6, 000, 000 units.

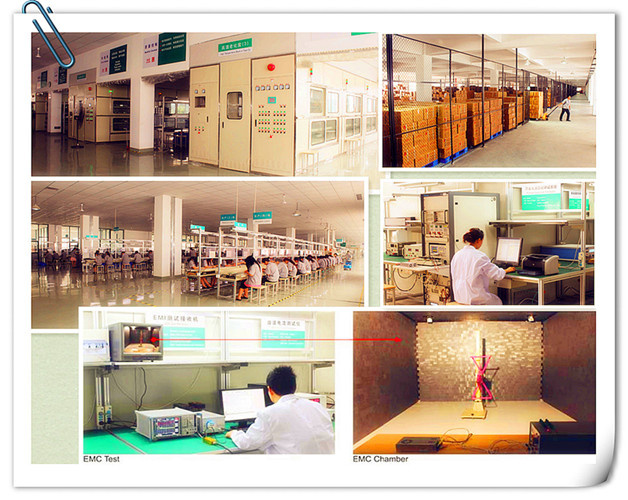

The plant is equipped with vertical and horizontal Automatic Insertion Machines and Surface Mount Machines, Automatic Wave Soldering Machines, PC based Power Supply Auto Test Systems, RoHS spectra analyzer and many other state-of-art devices. For assuring the high quality and reliability, all of the key components for the products are sourced from worldwide famous vendors. Every single unit has to pass the full load high temperature burn-in test. The average failure rate is less than 0.2%.
